CRYDOM Solid State Relays
Filter
A
B
C
D
E
F
G
H
I
J
K
L| Style | Model | Output Voltage | Input Voltage | Body Width | Body Height | Body Depth | Case Color | Min. Output Voltage | Max. Output Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

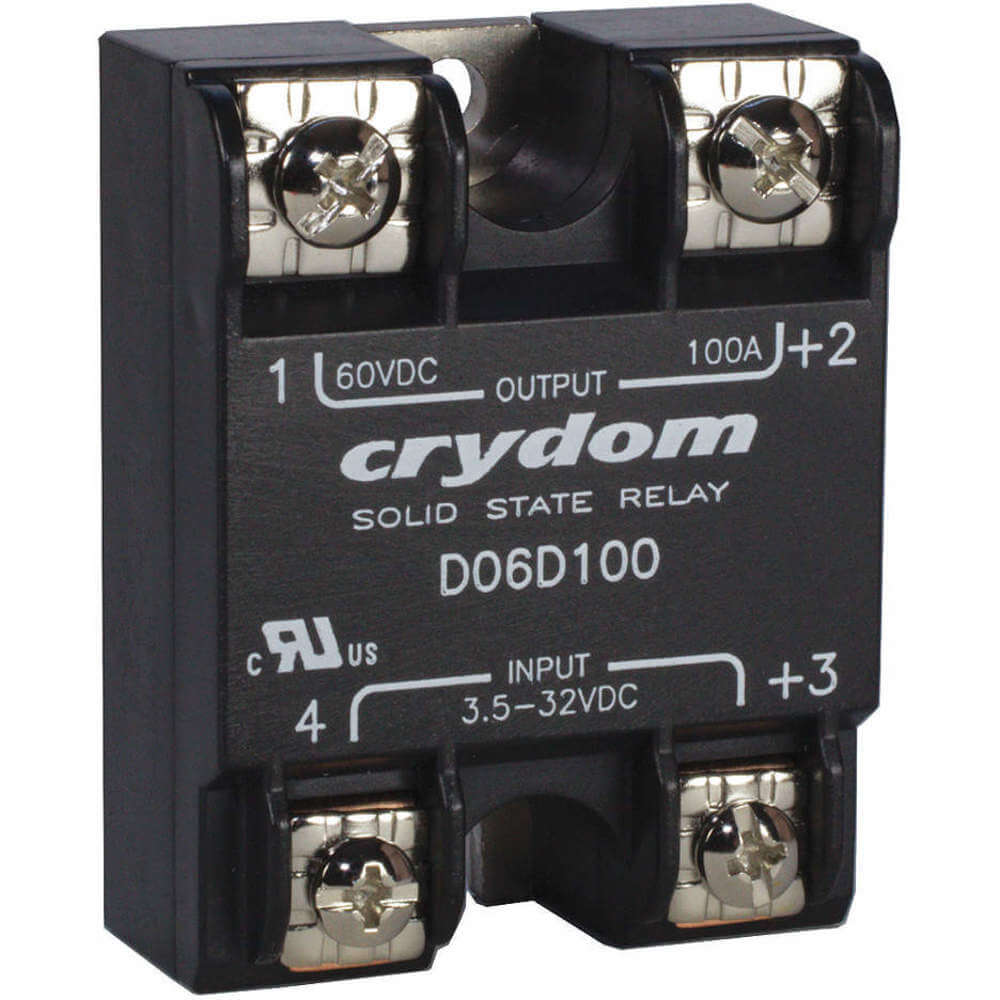

| A | D06D60 | 1-48V DC | 3.5-32V DC | 1 3/4" | 2 1/4" | 0.85" | Black | 0 | 60V | €184.87 | |
| A | D06D80 | 1-48V DC | 3.5-32V DC | 1 3/4" | 2 1/4" | 0.85" | Black | 0 | 60V | €210.94 | |
| B | D1D40 | 1-72V DC | 3.5-32V DC | 1 3/4" | 2 1/4" | 0.89" | Black | 0 | 100V | €141.41 | |
| B | D1D20 | 1-72V DC | 3.5-32V DC | 1 3/4" | 2 1/4" | 0.89" | Black | 0 | 100V | €123.84 | |
| B | D1D12 | 1-72V DC | 3.5-32V DC | 1 3/4" | 2 1/4" | 0.89" | Black | 0 | 100V | €111.66 | |

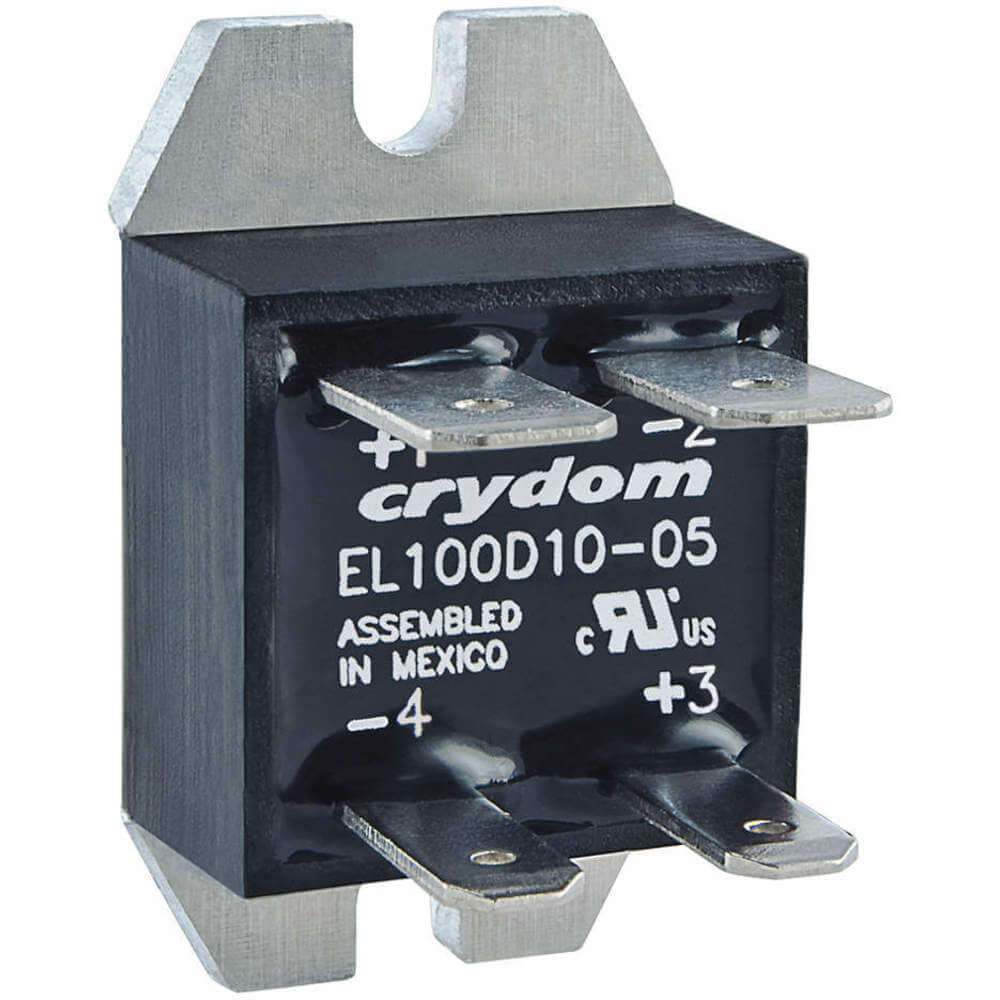

| C | EL100D1005 | 3-100V DC | 4-8V DC | 0.83" | 1.44" | 0.57" | Black | 24V | 280V | €68.47 | |
| C | EL100D0505 | 3-100V DC | 4-8V DC | 0.83" | 1.44" | 0.57" | Black | 24V | 280V | €66.24 | |
| C | EL100D0524 | 3-100V DC | 21-27V DC | 0.83" | 1.44" | 0.57" | Black | 24V | 280V | €66.93 | |
| C | EL100D1024 | 3-100V DC | 21-27V DC | 0.83" | 1.44" | 0.57" | Black | 24V | 280V | €67.95 | |
| D | EL240A10R05 | 24-280V AC | 4-8V DC | 0.83" | 1.4" | 0.56" | Black | 3V | 100V | €58.15 | |
| E | D245010 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €96.36 | |
| E | D249010 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €168.27 | |
| E | D2425B | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €100.64 | |
| E | D2450B | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €128.41 | |
| D | EL240A1005 | 24-280V AC | 4-8V DC | 0.83" | 1.4" | 0.56" | Black | 3V | 100V | €54.95 | |
| F | EZE240D18 | 24-280V AC | 15-32V DC | 1.5" | 1.73" | 0.55" | Black | 24V | 280V | €89.39 | |

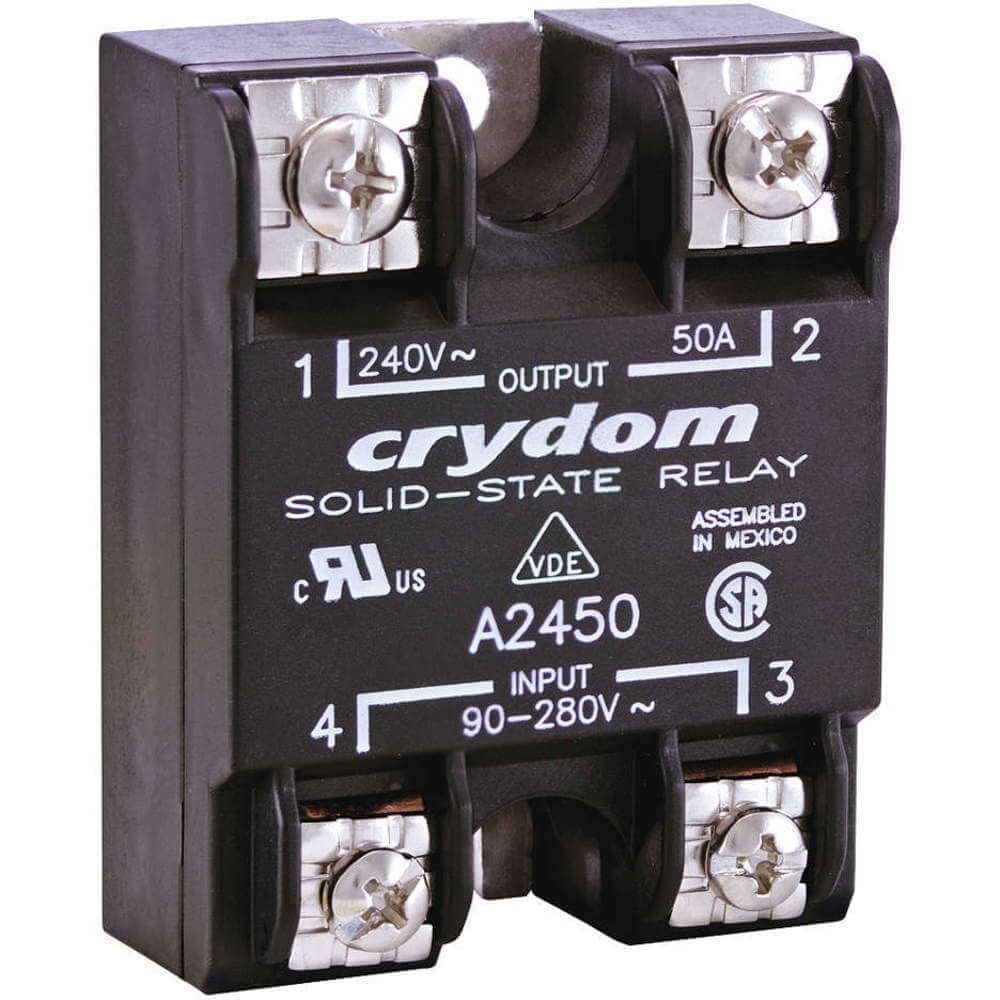

| G | A2450E | 24-280V AC | 18-36V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €113.86 | |

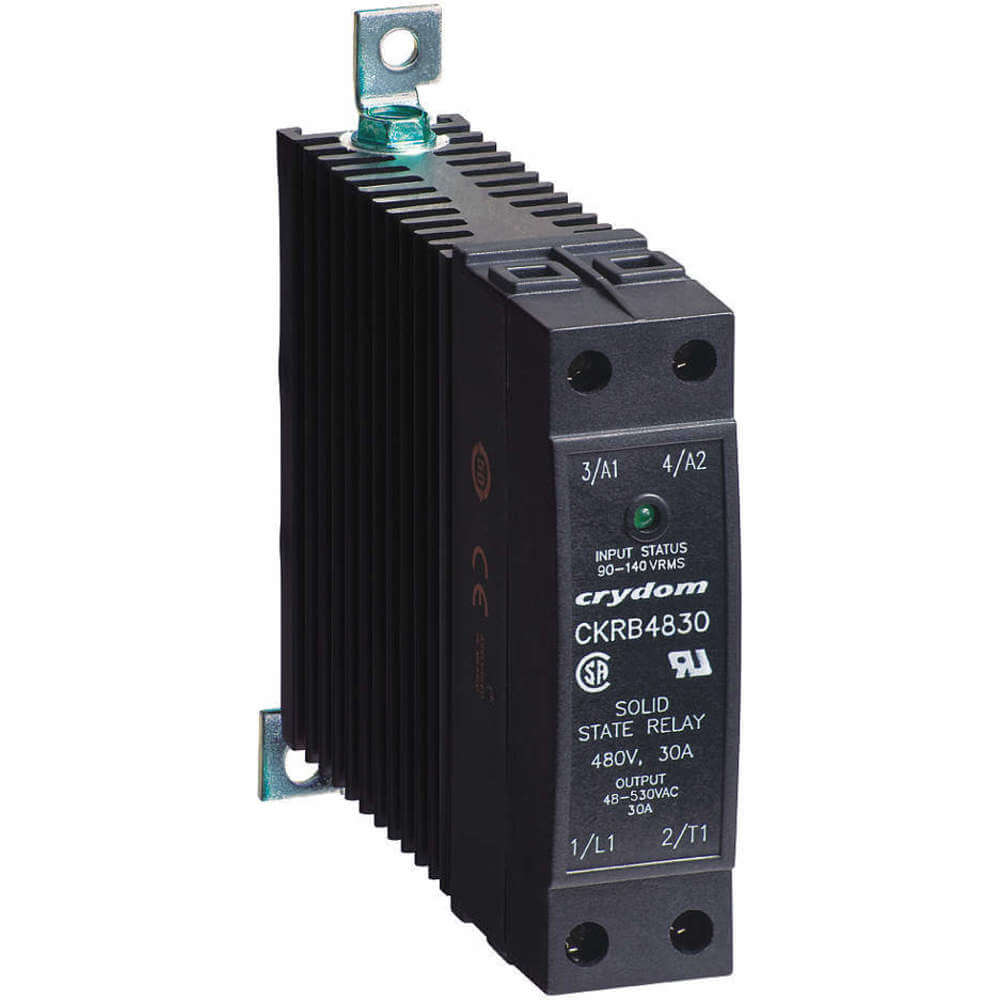

| H | CKRA2420 | 24-280V AC | 110-280V AC | 0.88" | 3.16" | 3.9" | Black | 24V | 280V | €141.41 | |
| H | CKRA2430 | 24-280V AC | 110-280V AC | 0.88" | 3.16" | 3.9" | Black | 24V | 280V | €144.97 | |

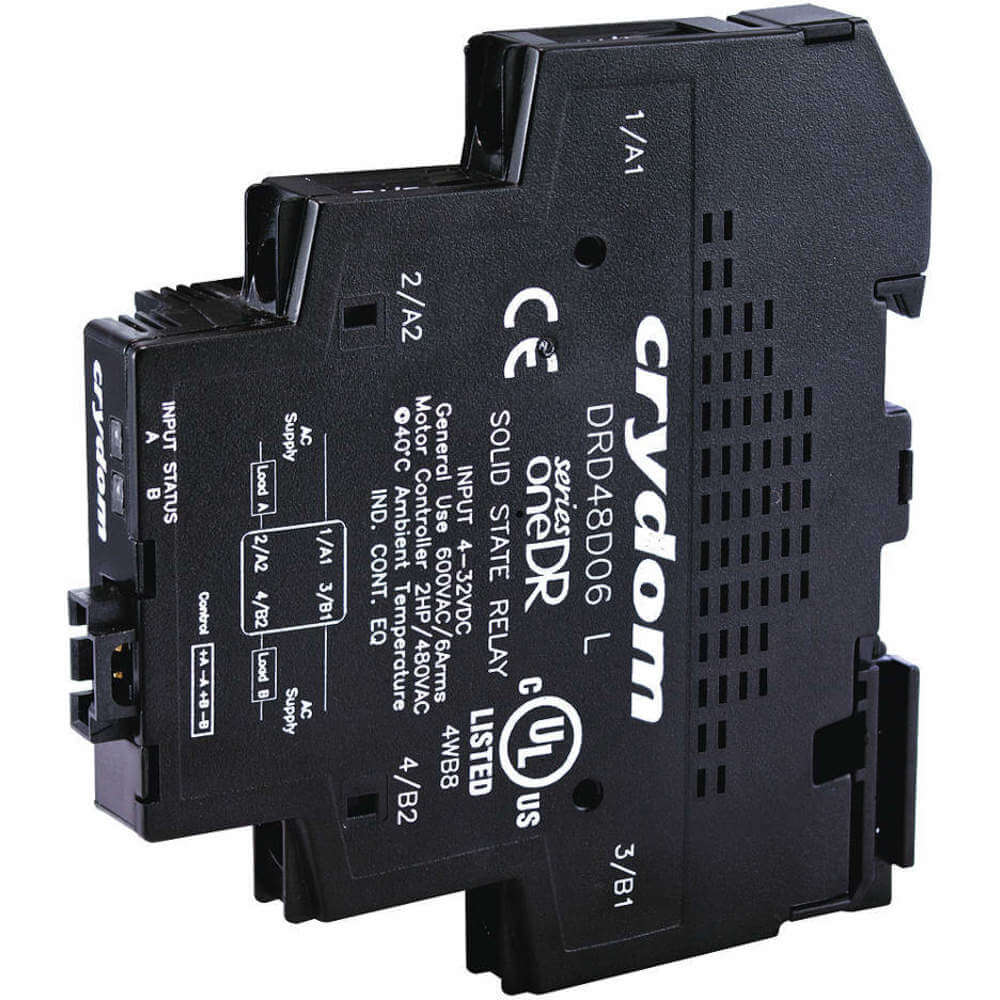

| I | DRD24D06 | 24-280V AC | 4-32V DC | 0.71" | 3.45" | 3.32" | Black | 24V | 280V | €146.41 | |
| E | D242510 | 24-280V AC | 3-32V DC | 1 3/4" | 2 1/4" | 0.85" | Black | 24V | 280V | €85.51 | |

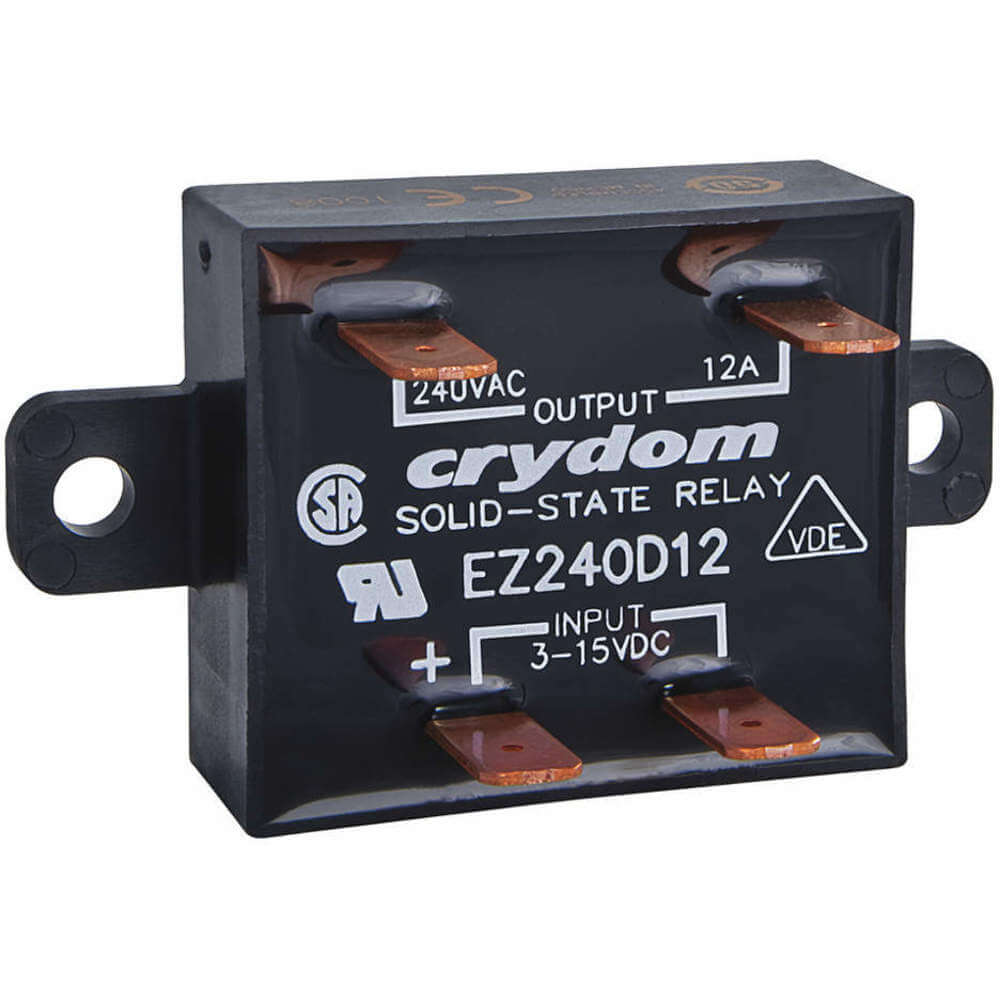

| F | EZ240D18 | 24-280V AC | 3-15V DC | 1.5" | 1.73" | 0.55" | Black | 24V | 280V | €77.23 | |
| G | A2425E | 24-280V AC | 18-36V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €97.88 | |
| E | D2425 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €78.48 | |
| D | EL240A1024 | 24-280V AC | 21-27V DC | 0.83" | 1.4" | 0.56" | Black | 3V | 100V | €56.59 | |
| G | A2490 | 24-280V AC | 90-280V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €154.77 | |
| D | EL240A10R24 | 24-280V AC | 21-27V DC | 0.83" | 1.4" | 0.56" | Black | 3V | 100V | €59.77 | |
| D | EL240A2005 | 24-280V AC | 4-8V DC | 0.83" | 1.4" | 0.56" | Black | 24V | 280V | €60.13 | |
| D | EL240A20R05 | 24-280V AC | 4-8V DC | 0.83" | 1.4" | 0.56" | Black | 24V | 280V | €62.44 | |
| D | EL240A2024 | 24-280V AC | 21-27V DC | 0.83" | 1.4" | 0.56" | Black | 24V | 280V | €58.91 | |
| D | EL240A20R24 | 24-280V AC | 21-27V DC | 0.83" | 1.4" | 0.56" | Black | 24V | 280V | €63.20 | |
| E | D2410 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €83.95 | |
| I | DRD24D06R | 24-280V AC | 4-32V DC | 0.71" | 3.45" | 3.32" | Black | 24V | 280V | €147.80 | |

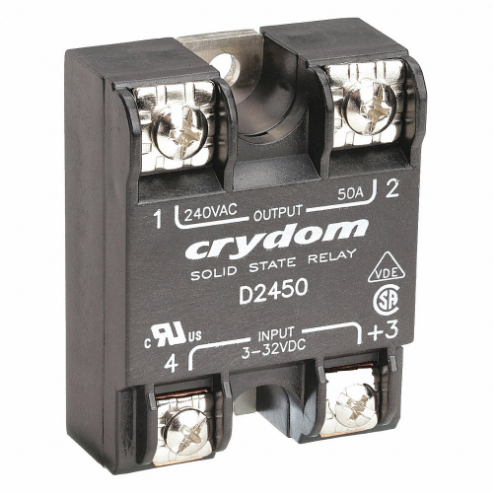

| J | D2450 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €105.33 | |
| E | D2475 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €137.77 | |
| E | D2490 | 24-280V AC | 3-32V DC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €151.71 | |
| G | A2410 | 24-280V AC | 90-280V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €84.41 | |
| G | A2425 | 24-280V AC | 90-280V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €90.19 | |
| G | A2450 | 24-280V AC | 90-280V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €102.85 | |
| G | A2475 | 24-280V AC | 90-280V AC | 1.75" | 2 1/4" | 0.85" | Black | 24V | 280V | €141.41 | |
| K | A53TP50D10 | 48-530V AC | 90-280V AC | 4.12" | 2.89" | 2.89" | Black | 48 | 530V | €433.04 | |
| L | C53TP25C10 | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3.2" | Gray | 48 | 530V | €403.39 | |
| L | C53TP50CH10 | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3.2" | Gray | 48 | 530V | €442.09 | |
| L | C53TP50CH | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €433.62 | |
| L | C53TP50C10 | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €428.33 | |
| L | C53TP50C | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €415.08 | |
| L | C53TP25CH10 | 48-530V AC | 180-280V AC | 4.09" | 3.2" | 3.2" | Gray | 48 | 530V | €409.07 | |
| L | C53TP25CH | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3.2" | Gray | 48 | 530V | €396.62 | |
| L | B53TP50C10 | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3.2" | Gray | 48 | 530V | €445.76 | |
| L | C53TP25C | 48-530V AC | 180-280V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €413.32 | |
| L | B53TP50CH10 | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €476.68 | |
| L | B53TP50CH | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €437.61 | |
| K | A53TP50D | 48-530V AC | 90-280V AC | 4.12" | 2.89" | 2.89" | Black | 48 | 530V | €388.05 | |
| L | B53TP50C | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €421.18 | |
| L | B53TP25CH10 | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €412.46 | |
| L | B53TP25CH | 48-530V AC | 90-140V AC | 4.09" | 3.2" | 3 1/5" | Gray | 48 | 350V | €405.10 | |
| L | B53TP25C10 | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €403.83 | |
| L | B53TP25C | 48-530V AC | 90-140V AC | 4.09" | 1.45" | 3 1/5" | Gray | 48 | 530V | €387.97 |
Solid State Relays
Crydom solid state relays control the flow of electrical energy in alternating current power systems. These relays feature elective, ultra-low input current draw to offer durability without requiring any maintenance, as well as enabling temperature accuracy. They provide electrical isolation between an application’s control circuit and load circuit. These solid state relays minimise electrical noise and come in shock & vibration resistant construction, ideal for harsh environments. They come with an Elective Internal TVS that eliminates the need for external overvoltage protection. Choose from a huge array of Crydom solid state relays, available in single and three phase models on Raptor Supplies.
