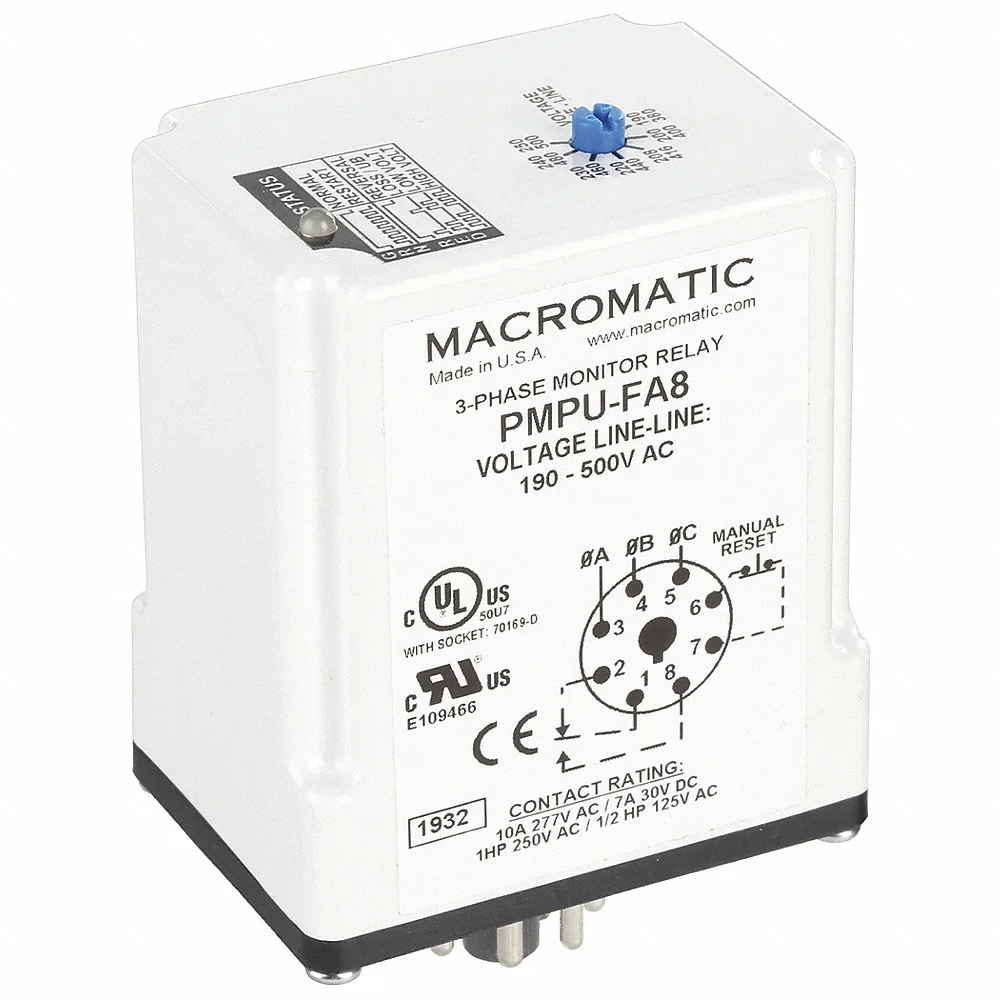

MACROMATIC PMPU-FA8 3-Phase Line Monitor, Voltage Sense, 208-480VAC
Item: AE9VCAModel: PMPU-FA8Cross Ref: 6MPP2
7 In Stock
SPDT, DPDT
250V, 30V, 125V, 277V
190-500V
Ships within 2 days via
5.00% off
€115.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps | 10A |
| Amps Supported | 10A |
| Amps Unbalance Detect | No |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type-plug In Relay | Octal |
| Body Depth | 2 2/5" , 2.9" |
| Body Height | 2 2/5" , 2.9" |
| Body Width | 1.7" |
| Configuration/contact Rating | SPDT. 10A @ 277V AC / 7A @ 30V DC |
| Contact Failure Detect | No |
| Contact Form | SPDT |
| Drop-out Range | 75% to 95% |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| For Use With | Sensors |
| Gross Weight | 0.285 lbs. |
| High Power Over Voltage Trip | Yes |
| Input Voltage | 208-480V AC |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | Yes |
| Manual Reset | No |
| Max. Operating Temp. | 149°F |
| Max. Switching Capacity | 40 VA |
| Max. Switching Voltage | 550V |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 1 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| Number Of Contacts | 1 |
| Over Amps | No |
| Overall Depth | 2 2/5" |
| Overall Height | 3" |
| Phase | 3 |
| Phase Loss Detect | Yes |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec. |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Rvrse/rotatn Detect | Yes |
| Phase Unbalance | 6% |
| Phase Unbalance Time Delay | 4 sec. |
| Pick Up | 190-500V AC |
| Power | 3 VA |
| Power Consumption | 40 VA |
| Protection | Phase Loss, Phase Reversal, Undervoltage, Overvoltage, Voltage Unbalance |
| Rapid Cycling Detect | Yes |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Resistive Contact Amp Rating | 10 |
| Restart | Auto, Manual |
| Restart Delay | 2 sec. |
| Restart Time Delay | 2 sec. |
| Socket | 5X852 |
| Socket Code | A |
| Trip Delay | Turn On And Restart After A Failure: Repaired 2 sec. Loss And Investment Of A Phase: Repaired 100 ms. Disequilibrium Of A Phase: Repaired 2 sec. Low Tension: Repaired 4 sec. |
| Trip Delay (sec.) | Turn on and restart after a failure: repaired 2 sec. Loss and investment of a phase: repaired 100 ms. Disequilibrium of a phase: repaired 2 sec. Low tension: repaired 4 sec. |
| Type | Voltage Sensing |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | Yes |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
Macromatic PMPU-FA8 3-phase line monitor is used in manufacturing plants, refineries, data centres, wastewater treatment facilities and food processing factories. It ensures proper phase sequence, voltage stability and fault detection, safeguarding equipment and preventing downtime due to electrical anomalies.
Features:
- It has a socket mounting style and utilises a socket for enhanced electrical connection.
- It can handle an input voltage range of 190 to 500VAC.
- It can monitor overvoltage fixed at 110 percent of line voltage setting, undervoltage operating at range of 190 to 500VAC and phase reversal with a time delay.
- It has a maximum switching capacity of 40VA and consumes 40VA of power.
- It supports automatic and manual restart with a restart time delay of 2 seconds.
Standards and Approvals:
- cULus
- UL
- CE
Frequently Asked Questions:
Q. How to manually reset this Macromatic's PMPU-FA8 3-phase line monitor?
A. Manual reset in this relay can be done by connecting an external momentary N.C. switch to its 6 and 7 terminal pins.
Q. What is the temperature rating of this Macromatic's PMPU-FA8 3-phase line monitor?
A. This voltage sensing relay can operate in temperatures ranging from -28 to 65 degrees C (-18 to 149 degrees F).
Q. What are the different response times in this Macromatic's PMPU-FA8 3-phase line monitor?
A.
- Restart: 2 seconds
- Phase Loss and Reversal: 100 ms
- Undervoltage and Overvoltage: 4 seconds
- Unbalanced: 4 seconds (normal) or 0.25 seconds (severe >12%)
Q. How do I reset the line monitor in case of continuous error readings?
A.
- Turn off the power supply to the line monitor.
- Allow a brief pause, typically 10 - 15 seconds.
- Turn the power supply back on.
- Verify if the error readings have cleared.
Q. What factors should I consider while choosing a 3-phase line monitor?
A.
- Voltage and current ratings
- Accuracy
- Communication protocols
- Alarm and notification features
- Display and user interface
- Surge and overload protection
- Compatibility
- Size and mounting options
- Reliability
- Cost
Q. What safety precautions should I take while using Macromatic PMPU-FA8 3-phase line monitor?
A.
- Adhere to the manual.
- Ensure correct wiring and mounting.
- Use trained experts.
- Ensure proper grounding.
- Use with compatible systems.
- Wear PPE if needed.
Product Variants
| Product | Model | Amps Supported | Input Voltage | Output Amps | No. Of Phase | Line Voltage | Mounting | Ac Voltage | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | 10A | 190-500V AC | - | - | - | Plug-In | - | SPDT | €190.96 | |
 |
PMP120 | 10A | - | 10A | 3 | 102-138V | Plug-In | 102-138V AC | - | €130.84 | |
 |
PMP575 | 10A | 460-600V AC | - | - | - | Plug-In | 460-600V AC | SPDT | €112.72 | |
 |
PMPU-FA12X | 5A | - | 5A | 1 | 190-500V | Din Rail, Panel | 190-500V AC | - | €140.35 | |
 |
PMPU-FA8X | 5A | - | 5A | 3 | 190-500V | Plug-In | 190-500V AC | SPDT + Spno | €122.78 |
