MACROMATIC PMPU 3-Phase Line Monitor SPDT, 8 Pin, 208-480VAC | AE7BKD 5WMJ3

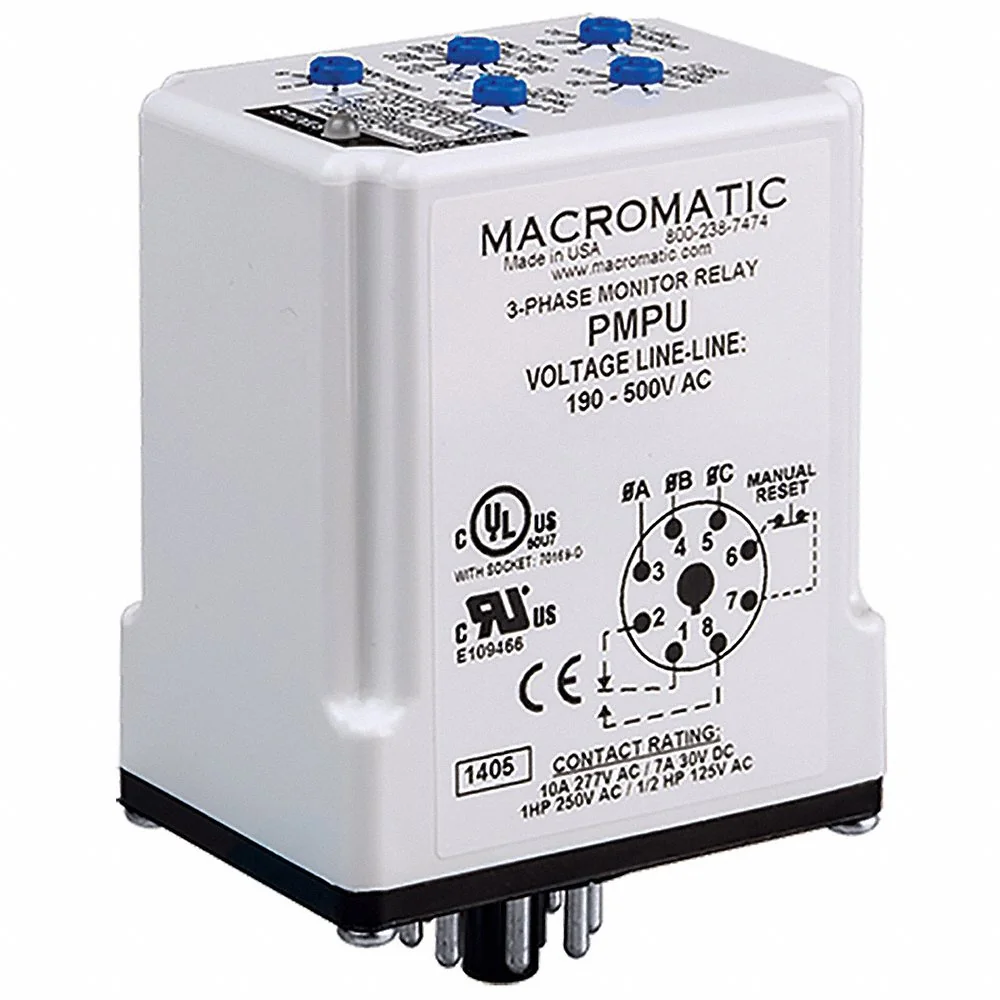

MACROMATIC PMPU 3-Phase Line Monitor SPDT, 8 Pin, 208-480VAC

Item: AE7BKDModel: PMPUCross Ref: 5WMJ3
7 In Stock
DPDT
250V, 30V, 125V, 277V
190-500V

Ships within 2 days via

€190.96
5.00% off
€181.42 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Relay
Amps 10A
Amps Supported 10A
Amps Unbalance Detect No
Base Shape Octal
Base Type Octal
Base Type-plug In Relay Octal
Body Depth 2.9"
Body Height 2.4"
Body Width 1.7"
Configuration/contact Rating SPDT. 10A @ 277V AC / 7A @ 30V DC
Contact Failure Detect No
Contact Form SPDT
Contact Rating (ac) 10A @ 277V
Contact Rating (dc) 7A @ 30V
Drop-out Range 75% to 95%
Electrical Connection Type Pin
Electrical Operating Durability 100000
For Use With Sensors
Frequency 50/60 Hz
Gross Weight 0.31 lbs.
High Power Over Voltage Trip Yes
Input Voltage 190-500V AC
Lo Hp Trip Detect No
Lo Kw Trip Detect No
Lo Pwr (under Vltg) Trip Yes
Manual Reset Yes
Max. Operating Temp. 149°F
Max. Switching Capacity 40 VA
Max. Switching Voltage 550V
Mechanical Operating Durability 10000000
Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage
Mounting Plug-In
Mounting Style Plug-In
Mounting-relay Plug In
No. Of Contacts 1
No. Of Pins 8
No. Of Pins-relay 8
No. Of Pins/terminals 8
Number Of Contacts 1
Output Relay DPDT
Over Amps No
Over Voltage Fixed 110% Of Line Voltage Setting
Overall Depth 2 2/5"
Overall Height 3"
Phase 3
Phase Loss Detect Yes
Phase Loss Sensitivity Yes
Phase Loss Time Delay 0.1 sec.
Phase Reversal Yes
Phase Reversal Time Delay 0.1 sec.
Phase Rvrse/rotatn Detect Yes
Phase Unbalance 2% to 10%
Phase Unbalance Time Delay 0.3 sec. to 30 sec.
Pick Up 190-500V AC
Power 3 VA
Power Consumption 40 VA
Protection Phase Loss, Phase Reversal, Undervoltage, Overvoltage, Voltage Unbalance
Rapid Cycling Detect Yes
Relay Mounting Plug In
Relay Mounting Style Socket
Resistive Contact Amp Rating 10A
Restart Auto, Manual
Restart Delay 1 sec. to 300 sec.
Restart Time Delay 1 sec. to 300 sec.
Socket Code A
Trip Delay (sec.) Power Up 1-300 Sec, Phase Loss & Reversal 100ms, Phase Unbalance 2 Sec, Undervoltage 0.1-20 Sec
Type Voltage Sensing
Type Of Display LED Status Indicator
Under Amps Detect No
Under Voltage 460-600V AC
Var Restart Delay No
Variable Point Trip No
Voltage Unbalance Detect Yes

Shipping Info:

Ship weight (kg) 0.23
Ship height (cm)6.1
Ship length (cm)7.37
Ship width (cm)4.32
HS code8536490080
Country of OriginUS

Product Details:

    • Drop-Out Range (80-95% of Nominal Voltage)
    • Voltage Unbalance (%) (2 to 10)

Product Variants

ProductModelAmps SupportedInput VoltageOutput AmpsNo. Of PhaseLine VoltageMountingAc VoltageContact FormPrice
MACROMATIC PMPU-FA8 3-Phase Line Monitor, Voltage Sense, 208-480VAC | AE9VCA 6MPP2 PMPU-FA810A208-480V AC---Plug-In-SPDT€121.46
MACROMATIC PMP120 Voltage Sensing Relay, 102-138VAC, 10A | CD6XNC PMP12010A-10A3102-138VPlug-In102-138V AC-€130.84
MACROMATIC PMP575 Voltage Sensing Relay, 460-600VAC, 10A | CD6XND PMP57510A460-600V AC---Plug-In460-600V ACSPDT€112.72
MACROMATIC PMPU-FA12X Voltage Sensing Relay, 190-500VAC, 5A | CD6XNE PMPU-FA12X5A-5A1190-500VDin Rail, Panel190-500V AC-€140.35
MACROMATIC PMPU-FA8X Voltage Sensing Relay, 190-500VAC, 5A SPDT/SPNO | CD6XNF PMPU-FA8X5A-5A3190-500VPlug-In190-500V ACSPDT + Spno€122.78
