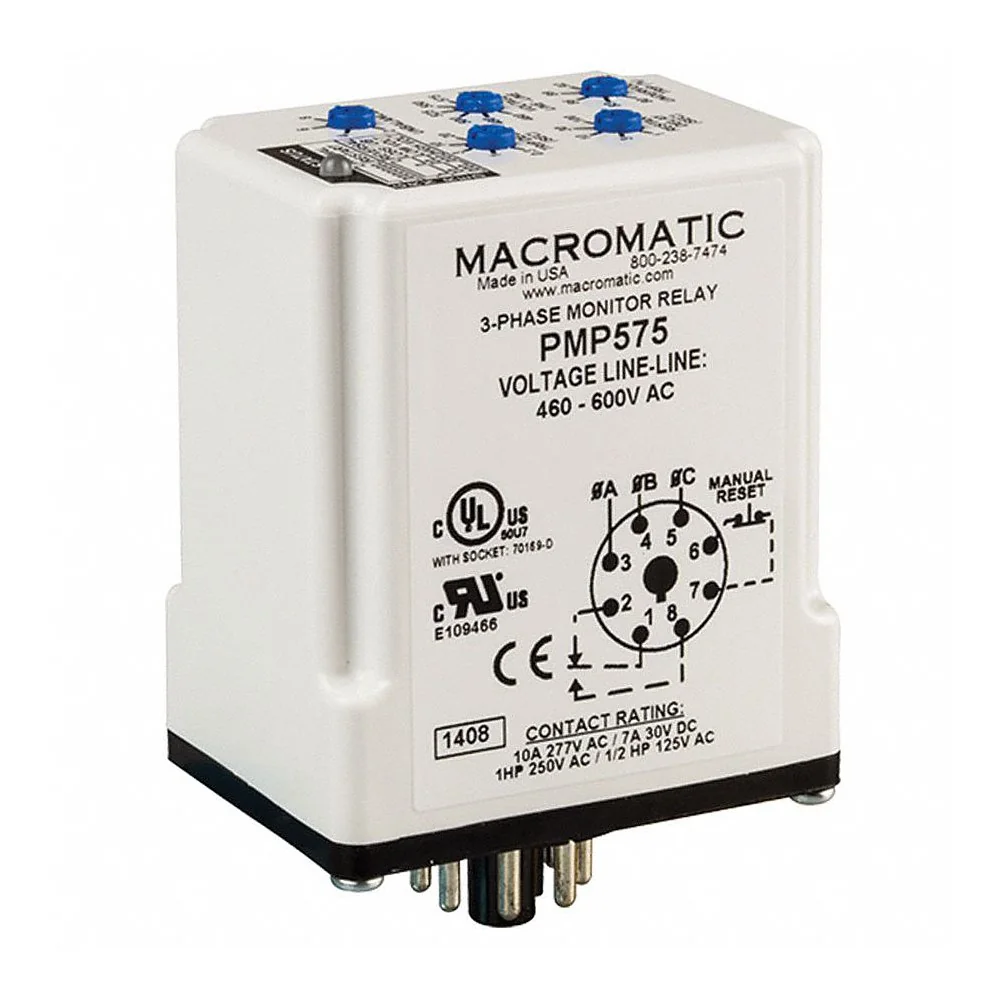

MACROMATIC PMP575 Voltage Sensing Relay, 460-600VAC, 10A
Item: CD6XNDModel: PMP575Cross Ref: 45LU84
7 In Stock
SPDT
250V, 30V, 125V, 277V
460-600V
Ships within 2 days via
5.00% off
€107.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Voltage | 460-600V AC |
| Amps | 10A |
| Amps Supported | 10A |
| Amps Unbalance Detect | No |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type-plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Configuration/contact Rating | SPDT. 10A @ 277V AC / 7A @ 30V DC |
| Contact Failure Detect | No |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 7A @ 30V |
| Drop-out Range | 80% to 95% |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| For Use With | Sensors |
| Frequency | 50/60 Hz |
| Gross Weight | 0.2835 lbs. |
| High Power Over Voltage Trip | Yes |
| Input Voltage | 460-600V AC |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | Yes |
| Manual Reset | Yes |
| Max. Operating Temp. | 149°F |
| Max. Switching Capacity | 40 VA |
| Max. Switching Voltage | 660V |
| Mechanical Operating Durability | 10000000 |
| Min./max. Voltage | 156-550V (PMPU) |
| Monitored Parameters | Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 1 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| No. Of Pins/terminals | 8 |
| Output Relay | SPDT |
| Over Amps | No |
| Over Voltage | Fixed 110% Of Line Voltage Setting |
| Overall Depth | 2 2/5" |
| Overall Height | 3" |
| Phase | 3 |
| Phase Loss Detect | Yes |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec. |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Rvrse/rotatn Detect | Yes |
| Phase Unbalance | 2% to 10% |
| Phase Unbalance Time Delay | 0.3 sec. to 30 sec. |
| Pick Up | 460-600V AC |
| Power Consumption | 40 VA |
| Protection | Phase Loss, Phase Reversal, Undervoltage, Overvoltage, Voltage Unbalance |
| Rapid Cycling Detect | Yes |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Restart | Auto, Manual |
| Restart Delay | 1 sec. to 300 sec. |
| Restart Time Delay | 1 sec. to 300 sec. |
| Socket Code | A |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Under Voltage | 460-600V AC |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | Yes |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps Supported | Input Voltage | Output Amps | No. Of Phase | Line Voltage | Mounting | Ac Voltage | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | 10A | 190-500V AC | - | - | - | Plug-In | - | SPDT | €190.96 | |
 |
PMPU-FA8 | 10A | 208-480V AC | - | - | - | Plug-In | - | SPDT | €121.46 | |
 |
PMP120 | 10A | - | 10A | 3 | 102-138V | Plug-In | 102-138V AC | - | €130.84 | |
 |
PMPU-FA12X | 5A | - | 5A | 1 | 190-500V | Din Rail, Panel | 190-500V AC | - | €140.35 | |
 |
PMPU-FA8X | 5A | - | 5A | 3 | 190-500V | Plug-In | 190-500V AC | SPDT + Spno | €122.78 |
