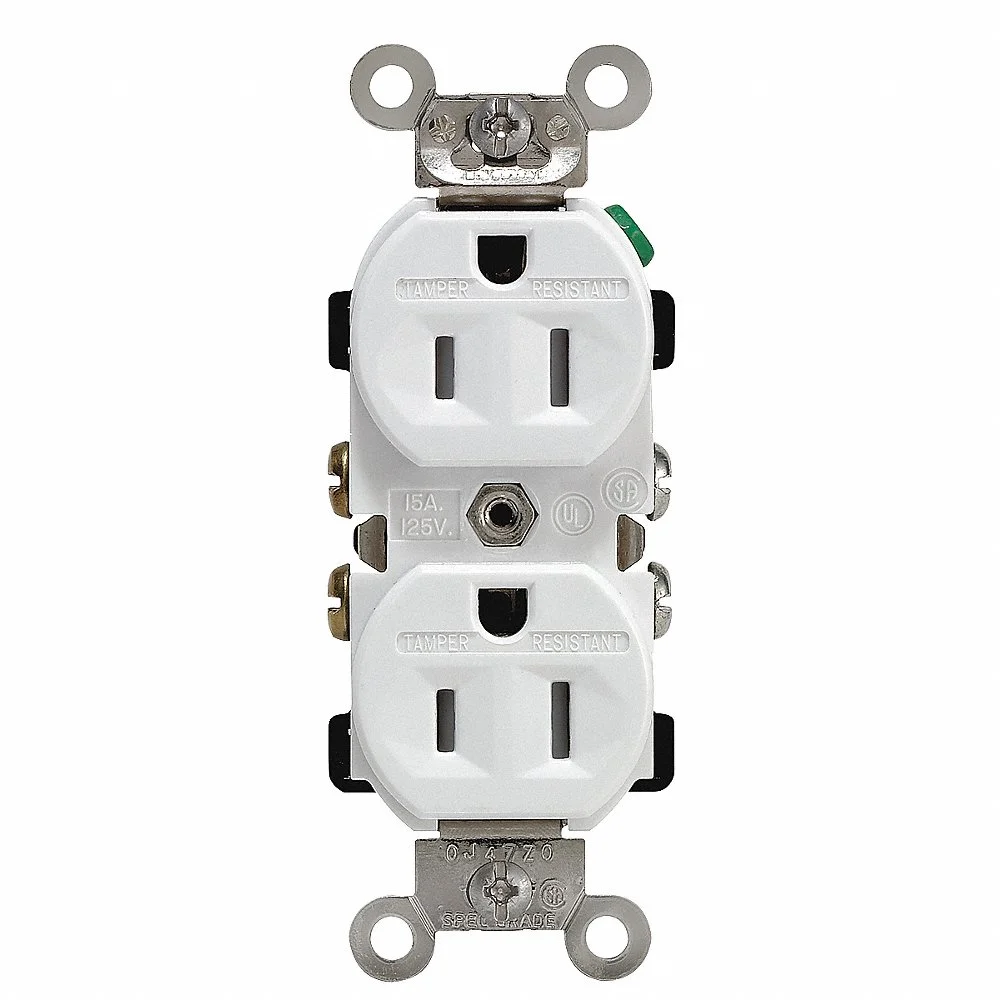

LEVITON TWR15-W Receptacle, Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Screw Terminals, Screw Terminals
Item: CR9HUFModel: TWR15-WCross Ref: 792UV4
7 In Stock
Ships within 2 days via
10.00% off
€23.04 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 0.89" |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Ivory |
| Housing Material | PBT Polyester |
| Hp | 1/2 hp |
| Includes | Cover, Wallplate |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 0.9" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Special Resistance | Tamper Resistant, Weather Resistant |
| Standards | Ansi, Csa Certified, Culus Listed, Federal Specification, Nom-Ance, Rohs Compliant, Ul Listed |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 2.82 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
