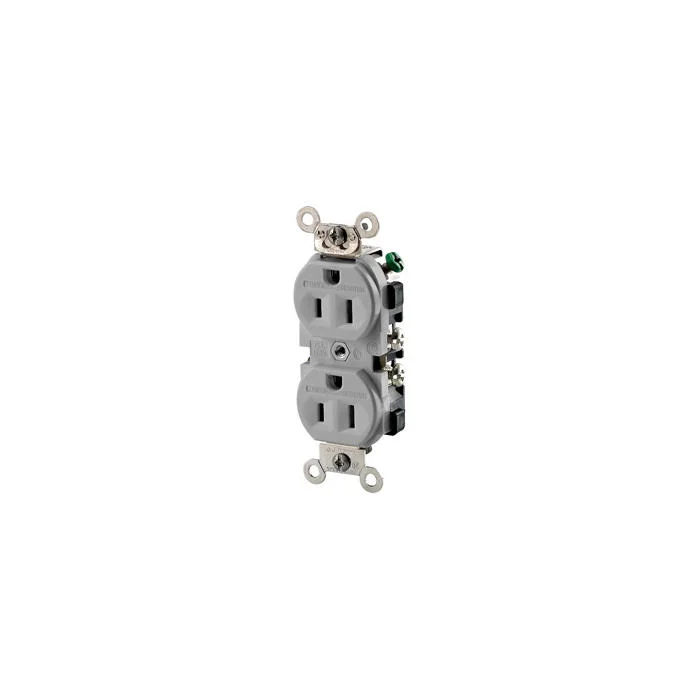

LEVITON TWR15-GY Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray, Nylon
Item: CR9JCNModel: TWR15-GYCross Ref: 792UV3
7 In Stock
Ships within 2 days via
5.00% off
€25.17 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp |
| Amps | 15A |
| Body Material | Nylon |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Depth | 0.89" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Weather And Tamper Resistant, Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Heavy Duty Industrial Specification Grade |
| Ground Clips Finish | Nickel Plated |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Nickel Plated |
| Grounding Screw Material | Brass |
| Housing Color | Gray |
| Housing Material | Nylon |
| Hp | 1/2 hp |
| Includes | Cover, Wallplate |
| Includes Mounting Hardware | Yes |
| Line Contacts Finish | Nickel Plated |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 1/25" |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Screws Material | Stainless Steel |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 0.9" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Delrin Acetal |
| Special Resistance | Tamper Resistant, Weather Resistant |
| Standards | Ansi, Csa Certified, Nom Certified, Ul Listed |
| Strap Finish | Nickel Plated |
| Strap Material | Brass |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Nickel Plated |
| Terminal Screws Material | Brass |
| Terminal Screws Size | #10-32 |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.89 |
| Country of Origin | MX |
Documentation:
