DORIAN Turning Toolholders
Dorian turning toolholders are used in metalworking to hold cutting tools in place during a turning operation. These toolholders are attached to a lathe or turning machine and provide a secure, rigid mount for the cutting tool.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X| Style | Model | Cutting Direction | Overall Length | Insert Holding Type | Type | Shank Height | Shank Width | Rake Angle | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ADWLNL-12-4B | Left Hand | 4 1/2" | Top Clamp | WNMG Holder | 3/4" | 3/4" | 7° | ADWLNL-12-4B | €268.19 | |
| B | MCLNL24-4E | Left Hand | 7" | Clamp And Lock Pin | CNMG Holder | 1 1/2" | 1 1/2" | 7° | MCLNL24-4E | €235.03 | |
| C | MCKNL20-4D | Left Hand | 6" | - | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNL20-4D | €165.44 | |
| B | MCLNL16-4C | Left Hand | 5" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCLNL16-4C | €129.96 | |
| C | SCLCL06-2J | Left Hand | 3 1/2" | Screw On | CCMT Holder | 3/8" | 3/8" | 0° | SCLCL06-2J | €96.33 | |
| C | SCLCL08-3A | Left Hand | 4" | Screw On | CCMT Holder | 1/2" | 1/2" | 0° | SCLCL08-3A | €98.53 | |
| C | ADCLNL-12-4B | Left Hand | 4 1/2" | Top Clamp | CNMG Holder | 3/4" | 3/4" | 7° | ADCLNL-12-4B | €268.19 | |
| D | ADVJNL-16-3D | Left Hand | 6" | Top Clamp | VNMG Holder | 1" | 1" | 13° | ADVJNL-16-3D | €331.66 | |
| B | MCLNL12-4B | Left Hand | 4 1/2" | Clamp And Lock Pin | CNMG Holder | 3/4" | 3/4" | 7° | MCLNL12-4B | €112.55 | |
| B | MCLNL20-6E | Left Hand | 7" | - | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCLNL20-6E | €234.66 | |
| E | MVTNL16-3D | Left Hand | 6" | - | - | 1" | 1" | 13° | MVTNL16-3D | €197.38 | |
| F | MCRNL24-6E | Left Hand | 7" | Clamp And Lock Pin | CNMG Holder | 1 1/2" | 1 1/2" | 7° | MCRNL24-6E | €279.19 | |
| G | MSKNL16-5D | Left Hand | 6" | Clamp And Lock Pin | - | 1" | 1" | 7° | MSKNL16-5D | €141.41 | |
| G | MSRNL16-6D | Left Hand | 6" | Clamp And Lock Pin | SNMG Holder | 1" | 1" | 7° | MSRNL16-6D | €164.33 | |
| H | MTANL08-2A | Left Hand | 4" | Clamp And Lock Pin | Tnmg Holder | 1/2" | 1/2" | 7° | MTANL08-2A | €93.75 | |
| I | MTFNL20-5D | Left Hand | 6" | Clamp And Lock Pin | Tnmg Holder | 1 1/4" | 1 1/4" | 7° | MTFNL20-5D | €163.15 | |

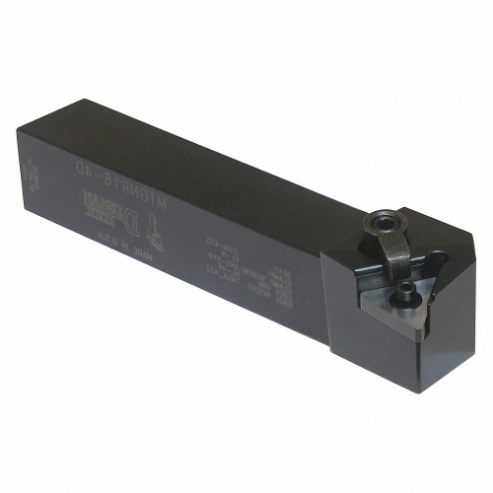

| J | MTGNL10-3B | Left Hand | 4 1/2" | Clamp And Lock Pin | Tnmg Holder | 5/8" | 5/8" | 7° | MTGNL10-3B | €99.52 | |
| K | MTGNL20-4D | Left Hand | 6" | Clamp And Lock Pin | Tnmg Holder | 1 1/4" | 1 1/4" | 7° | MTGNL20-4D | €132.36 | |
| L | MWLNL12-4B | Left Hand | 4 1/2" | Clamp And Lock Pin | WNMG Holder | 3/4" | 3/4" | 7° | MWLNL12-4B | €118.43 | |
| M | MTFNL12-3B | Left Hand | 4 1/2" | Clamp And Lock Pin | Tnmg Holder | 3/4" | 3/4" | 7° | MTFNL12-3B | €116.33 | |
| N | MTJNL16-3D | Left Hand | 6" | Clamp And Lock Pin | Tnmg Holder | 1" | 1" | 7° | MTJNL16-3D | €120.49 | |
| C | MCKNL20-5D | Left Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNL20-5D | €198.55 | |
| C | SCLCL10-3B | Left Hand | 4 1/2" | Screw On | CCMT Holder | 5/8" | 5/8" | 0° | SCLCL10-3B | €103.10 | |
| C | SCLCL12-3B | Left Hand | 4 1/2" | Screw On | CCMT Holder | 3/4" | 3/4" | 0° | SCLCL12-3B | €117.26 | |
| C | ADCLNL-16-4D | Left Hand | 6" | Top Clamp | CNMG Holder | 1" | 1" | 7° | ADCLNL-16-4D | €309.57 | |
| D | ADVJNL-20-3D | Left Hand | 6" | Top Clamp | VNMG Holder | 1 1/4" | 1 1/4" | 13° | ADVJNL-20-3D | €352.50 | |
| C | MCKNL16-4D | Left Hand | 6" | - | CNMG Holder | 1" | 1" | 7° | MCKNL16-4D | €150.62 | |
| O | MDJNL20-4D | Left Hand | 6" | Clamp And Lock Pin | DNMG Holder | 1 1/4" | 1 1/4" | 7° | MDJNL20-4D | €194.83 | |

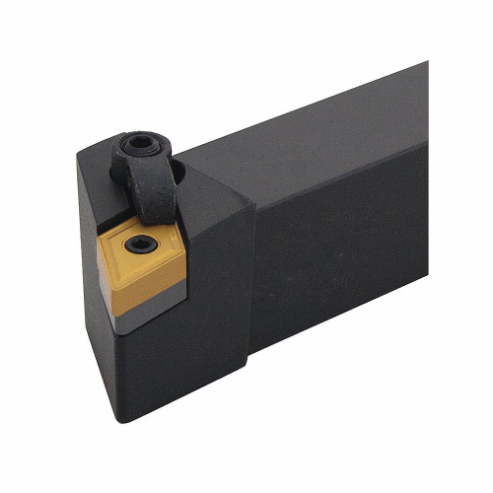

| O | MDJNL24-5E | Left Hand | 7" | Clamp And Lock Pin | DNMG Holder | 1 1/2" | 1 1/2" | 7° | MDJNL24-5E | €279.07 | |
| B | MCLNL16-4D | Left Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCLNL16-4D | €119.75 | |
| G | MSRNL20-4D | Left Hand | 6" | Clamp And Lock Pin | SNMG Holder | 1 1/4" | 1 1/4" | 7° | MSRNL20-4D | €132.36 | |
| O | MDJNL24-4E | Left Hand | 7" | Clamp And Lock Pin | DNMG Holder | 1 1/2" | 1 1/2" | 7° | MDJNL24-4E | €278.81 | |
| A | ADWLNL-16-4D | Left Hand | 6" | Top Clamp | WNMG Holder | 1" | 1" | 7° | ADWLNL-16-4D | €309.57 | |
| A | ADWLNL-20-4D | Left Hand | 6" | Top Clamp | WNMG Holder | 1 1/4" | 1 1/4" | 7° | ADWLNL-20-4D | €329.01 | |

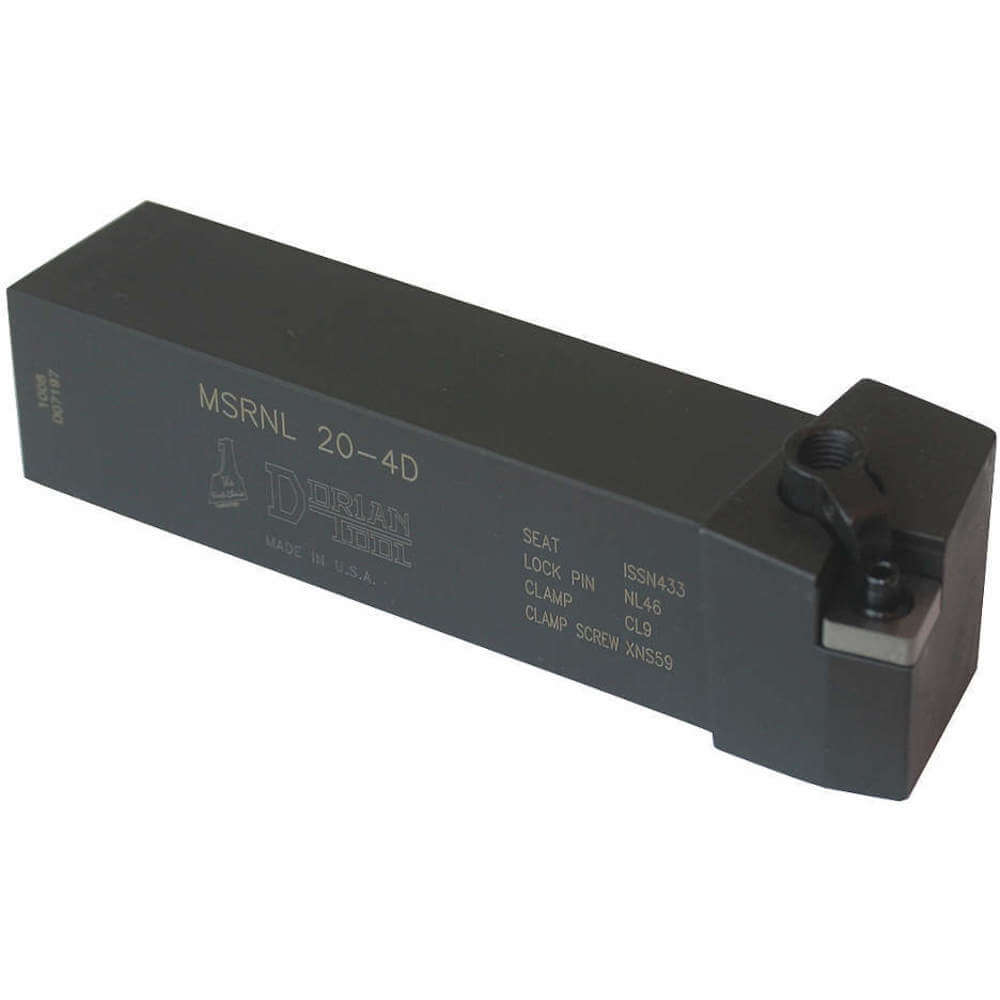

| P | 50519 | Left Hand | 6" | Clamp And Lock Pin | Square Shank | 1 1/4" | 1 1/4" | 7 | Negative | €127.90 | |
| Q | MVLNL20-4D | Left Hand | 6" | Clamp And Lock Pin | VNMG Holder | 1 1/4" | 1 1/4" | 4° | MVLNL20-4D | €218.89 | |
| R | MRGNL24-6E | Left Hand | 7" | Clamp And Lock Pin | Rnmg Holder | 1 1/2" | 1 1/2" | 7° | MRGNL24-6E | €336.84 | |
| S | SVJBL16-3D | Left Hand | 6" | Screw On | VBGT Holder | 1" | 1" | 0° | SVJBL16-3D | €175.44 | |
| D | ADVJNL-12-3B | Left Hand | 4 1/2" | Top Clamp | VNMG Holder | 3/4" | 3/4" | 13° | ADVJNL-12-3B | €309.41 | |
| N | MTJNL08-2A | Left Hand | 4" | Clamp And Lock Pin | Tnmg Holder | 1/2" | 1/2" | 7° | MTJNL08-2A | €93.75 | |
| N | MTJNL20-5D | Left Hand | 6" | Clamp And Lock Pin | Tnmg Holder | 1 1/4" | 1 1/4" | 7° | MTJNL20-5D | €163.15 | |
| Q | MVLNL16-4D | Left Hand | 6" | Clamp And Lock Pin | VNMG Holder | 1" | 1" | 4° | MVLNL16-4D | €205.96 | |
| F | MCRNL20-5D | Left Hand | 6" | Clamp And Lock Pin | - | 1 1/4" | 1 1/4" | 7° | MCRNL20-5D | €174.73 | |
| N | MTJNL12-3B | Left Hand | 4 1/2" | Clamp And Lock Pin | Tnmg Holder | 3/4" | 3/4" | 7° | MTJNL12-3B | €113.05 | |
| N | MTJNL20-4D | Left Hand | 6" | Clamp And Lock Pin | Tnmg Holder | 1 1/4" | 1 1/4" | 7° | MTJNL20-4D | €132.36 | |
| T | MVJNL16-3D | Left Hand | 6" | Clamp And Lock Pin | VNMG Holder | 1" | 1" | 13° | MVJNL16-3D | €193.16 | |
| T | MVJNL20-4D | Left Hand | 6" | Clamp And Lock Pin | VNMG Holder | 1 1/4" | 1 1/4" | 13° | MVJNL20-4D | €218.89 | |
| R | MRGNL16-4D | Left Hand | 6" | Clamp And Lock Pin | Rnmg Holder | 1" | 1" | 7° | MRGNL16-4D | €156.63 | |
| R | MRGNL20-4D | Left Hand | 6" | Clamp And Lock Pin | Rnmg Holder | 1 1/4" | 1 1/4" | 7° | MRGNL20-4D | €172.06 | |
| U | ADDJNL-20-4D | Left Hand | 6" | Top Clamp | DNMG Holder | 1 1/4" | 1 1/4" | 7° | ADDJNL-20-4D | €352.50 | |
| O | MDJNL16-5D | Left Hand | 6" | Clamp And Lock Pin | DNMG Holder | 1" | 1" | 7° | MDJNL16-5D | €221.59 | |

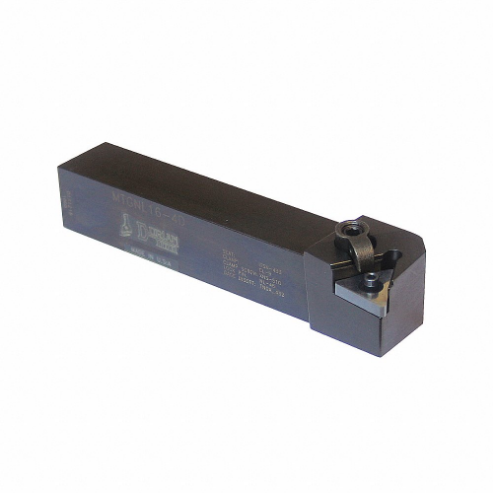

| V | MTGNL16-4D | Left Hand | 6" | Clamp And Lock Pin | Tnmg Holder | 1" | 1" | 7° | MTGNL16-4D | €120.49 | |
| G | MSRNL16-5D | Left Hand | 6" | Clamp And Lock Pin | SNMG Holder | 1" | 1" | 7° | MSRNL16-5D | €141.41 | |
| G | MSRNL20-6D | Left Hand | 6" | - | SNMG Holder | 1 1/4" | 1 1/4" | 7° | MSRNL20-6D | €173.28 | |
| M | MTANL10-3B | Left Hand | 4 1/2" | Clamp And Lock Pin | Tnmg Holder | 5/8" | 5/8" | 7° | MTANL10-3B | €101.78 | |
| R | MRGNL12-4B | Left Hand | 4 1/2" | Clamp And Lock Pin | Rnmg Holder | 3/4" | 3/4" | 7° | MRGNL12-4B | €147.24 | |
| U | ADDJNL-16-4D | Left Hand | 6" | Top Clamp | DNMG Holder | 1" | 1" | 7° | ADDJNL-16-4D | €333.89 | |
| W | SDJCL06-2J | Left Hand | 3 1/2" | Screw On | DCMT Holder | 3/8" | 3/8" | 0° | SDJCL06-2J | €117.88 | |
| C | ADCLNL-20-4D | Left Hand | 6" | Top Clamp | CNMG Holder | 1 1/4" | 1 1/4" | 7° | ADCLNL-20-4D | €329.01 | |
| K | MTGNL24-6E | Left Hand | 7" | Clamp And Lock Pin | Tnmg Holder | 1 1/2" | 1 1/2" | 7° | MTGNL24-6E | €271.86 | |
| X | MTGNL08-2A | Left Hand | 4" | - | Tnmg Holder | 1/2" | 1/2" | 7° | MTGNL08-2A | €96.29 |
Working Mechanism
- The turning toolholder is mounted to the lathe or machine tool using a base.
- The cutting tool is inserted into the tool post of the turning toolholder.
- The clamping mechanism is used to secure the cutting tool within the tool post.
- The adjustment mechanism is used to position the cutting tool relative to the workpiece. This allows for precise control over the cutting process.
- The rotation mechanism allows the cutting tool to be rotated around its own axis. This creates the desired cutting geometry.
Features
- Dorian turning toolholders feature shank mounting for a rigid connection and precise alignment.
- They have multiple cutting edges & can be rotated to provide a fresh cutting edge.
- These turning toolholders have a cutting head that holds an indexable insert for improved tool life.
- They are capable of cutting in either right / left hand directions for controlled chip flow and improved accuracy.
Frequently Asked Questions
How are turning toolholders mounted to a lathe or machine tool?
Turning toolholders are mounted to a lathe or machine tool using a base. The base is secured to the machine tool using bolts or clamps, providing a stable platform for the toolholder.
What are the factors to consider while choosing the right turning toolholder for my application?
Major factors to consider while chosing a turning toolholder include the type of cutting tool being used, the material being machined and the desired cutting parameters.
What benefits does Dor-Lock mounting style offer to these turning toolholders?
Dor-Lock clamping system offers secure holding of the workpiece and precise control of the cutting operation.
