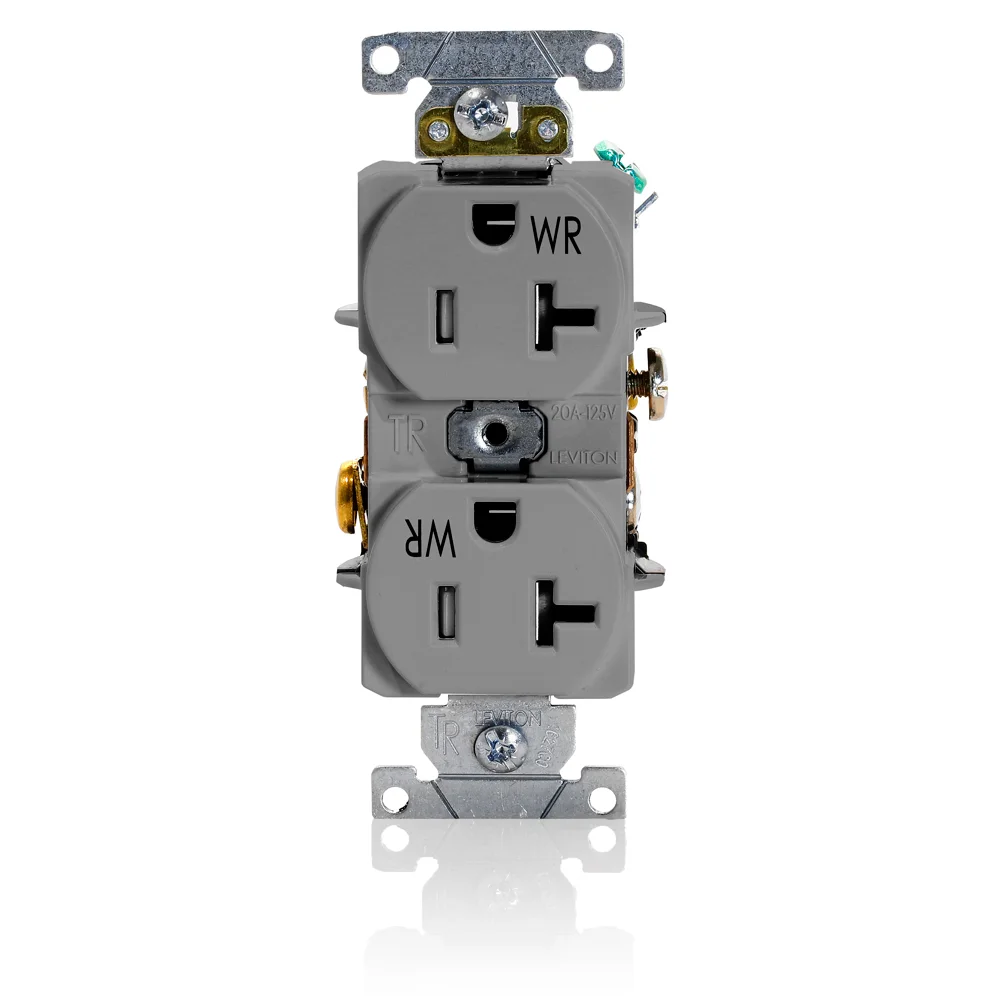

LEVITON TWR20-GY Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals, Screw Terminals | CR9HWF 792UV5

LEVITON TWR20-GY Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray, Nylon

Item: CR9HWFModel: TWR20-GYCross Ref: 792UV5
7 In Stock
Color
Current Rating

Ships within 2 days via

€32.14
5.00% off
€30.53 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp Ratings At Rated Voltage 1 hp
Amps 20A
Body Material Nylon
Clamp Nuts Finish Zinc Plated
Clamp Nuts Material Steel
Color Gray
Connection Orientation Straight
Contact Material Brass
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Depth 0.89"
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Nylon
Face Plate Height 2 4/5"
Face Plate Width 1.3"
Features Weather And Tamper Resistant, Smooth Face
Fed Spec Fed Spec W-C-596
Gfci No
Grade Heavy Duty Industrial Specification Grade
Ground Clips Finish Nickel Plated
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Finish Nickel Plated
Grounding Screw Material Brass
Housing Color Gray
Housing Material Nylon
Hp 1 hp
Includes Cover, Wallplate
Includes Mounting Hardware Yes
Line Contacts Finish Nickel Plated
Line Contacts Style Triple Wipe
Line Contacts Thickness 1/25"
Maximum Operating Temperature 140°F
Maximum Wire Size 10 AWG
Min. Operating Temp. -40°C
Min. Wire Size 14 AWG
Minimum Operating Temperature -40°F
Mount Hole Center-to-center Height 3.3"
Mounting Hardware Included Yes
Mounting Screws Material Stainless Steel
Mounting Type Flush
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-2, NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Overall Depth 0.9"
Phase Single
Polarized Yes
Product Datasheet leviton-twr20-gy.pdf
Receptacle Type Duplex
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Shutter Mechanism Delrin Acetal
Special Resistance Tamper Resistant, Weather Resistant
Standards Ansi, Csa Certified, Culus Listed, Federal Specification, Nom-Ance, Rohs Compliant, Ul Listed
Strap Finish Nickel Plated
Strap Material Brass
Temp. Rise Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Nickel Plated
Terminal Screws Material Brass
Terminal Screws Size #10-32
Termination Back Or Side Wire
Ul 94 Flammability Rating V-2
Voltage Rating 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminals

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)21.59
Ship length (cm)32.39
Ship width (cm)2.54
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelCurrent RatingHousing ColorHousing MaterialNema Receptacle ConfigurationGroundingAmpsHpColorPrice
LEVITON TWR15-W Receptacle, Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Screw Terminals, Screw Terminals | CR9HUF 792UV4 TWR15-W15AIvoryPBT PolyesterNEMA 5-15RGrounded15A1/2 hp-€25.60
LEVITON TWR20-W Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals, Screw Terminals | CR9HXZ 792UV6 TWR20-W20AWhiteNylonNEMA 5-20RGrounded20A1 hpWhite€26.59
LEVITON TWR15-GY Receptacle, Duplex, 5-15R, 15 A, 125V AC, Gray, 2 Poles, Screw Terminals, Screw Terminals | CR9JCN 792UV3 TWR15-GY15AGrayNylonNEMA 5-15RGrounded15A1/2 hpGray€26.49
