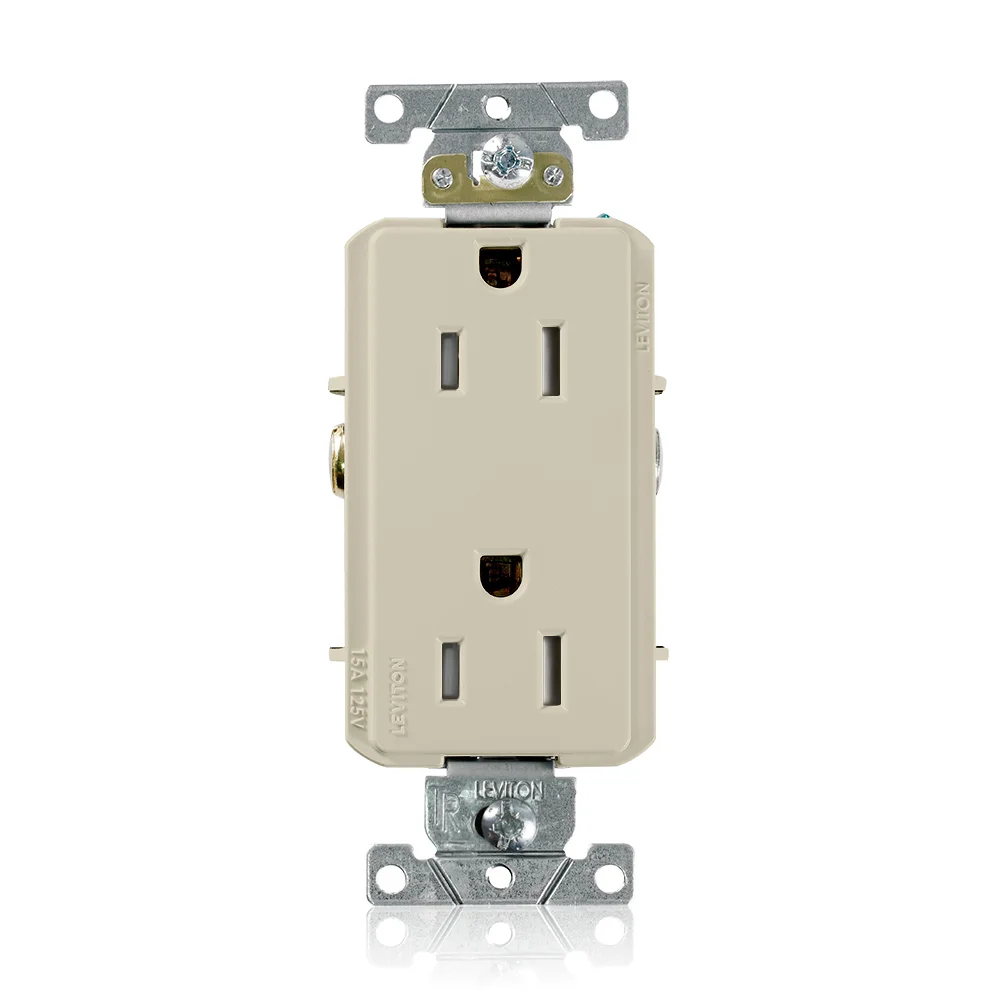

LEVITON TDR15-I Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory, Nylon, Back and Side Wired
Item: CR9JBAModel: TDR15-ICross Ref: 792UU6
7 In Stock
Ships within 2 days via
5.00% off
€25.26 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | PBT Polyester , PBT Polyester Blend |
| Color | Ivory |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 0.89" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 3000V Minimum |
| Face Material | PBT Polyester Blend |
| Features | Tamper Resistant, Smooth Face |
| Flammability | Rated V-0 Per UL 94 |
| Gfci | No |
| Grade | Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Ground Contacts Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw | #8 Hex Head, Triple Drive Bass |
| Housing Color | Ivory |
| Hp | 1/2 hp |
| Hp Rating | 1/2 hp |
| Includes | Cover, Wallplate |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Phosphor Bronze |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 167°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Screws Finish | Triple Drive Plated |
| Mounting Screws Material | Steel |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +75°C |
| Overall Depth | 0.9" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-tdr15-i.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Acetal |
| Special Resistance | Tamper Resistant |
| Standards | Ansi, Csa Certified, Culus Listed, Federal Specification, Nom-Ance, Rohs Compliant, Ul Listed |
| Strap Finish | Galvanized |
| Strap Grade | Grade G60 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C Temperature Rise At Full Rated Current |
| Terminal Accom. | #14 AWG to #10 AWG |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Silver Neutral, Green Ground |
| Terminal Screws | #8 Triple Drive Brass |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Type | Stranded Or Solid |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Grounding | Body Material | Receptacle Type | Current Rating | Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

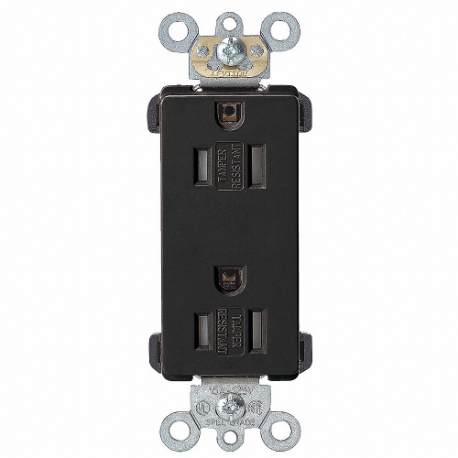

TDR15-E | Black | Black | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €29.20 | |
 |
TDR15 | Brown | Brown | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €29.53 | |
 |

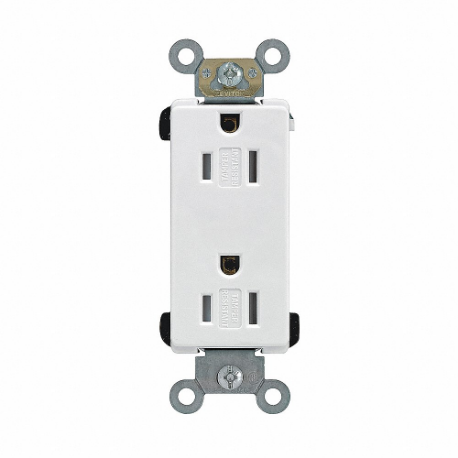

TDR15-W | White | White | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €31.69 | |
 |

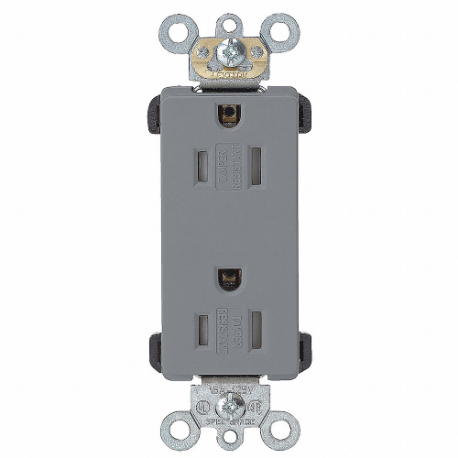

TDR15-GY | Gray | Gray | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €27.06 |
