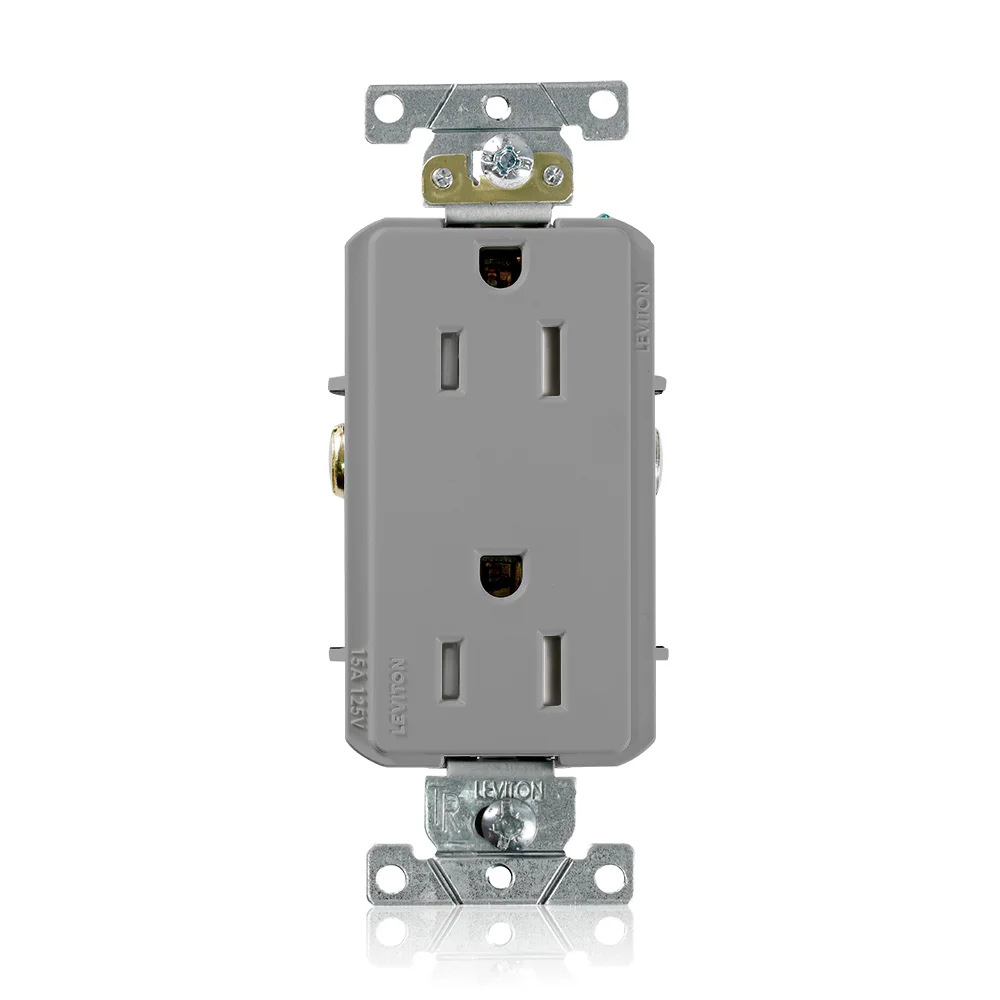

LEVITON TDR15-GY Heavy Duty Self-Grounding Smooth Face Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Item: CR9JAHModel: TDR15-GYCross Ref: 792UU5
7 In Stock
Ships within 2 days via
5.00% off
€25.70 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | PBT Polyester , PBT Polyester Blend |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 0.89" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 3000V Minimum |
| Face Material | PBT Polyester Blend |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Tamper Resistant, Smooth Face |
| Flammability | Rated V-0 Per UL 94 |
| Gfci | No |
| Grade | Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Ground Contacts Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw | #8 Hex Head, Triple Drive Bass |
| Housing Color | Gray |
| Included | Cover, Wallplate |
| Included Mounting Hardware | Yes |
| Line Contacts Material | Phosphor Bronze |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 167°F , 75°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Screws Finish | Triple Drive Plated |
| Mounting Screws Material | Steel |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +75°C |
| Overall Depth | 0.9" |
| Phase | 1 |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Acetal |
| Special Resistance | Tamper Resistant |
| Strap Finish | Galvanized |
| Strap Grade | Grade G60 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C Temperature Rise At Full Rated Current |
| Terminal Accom. | #14 AWG to #10 AWG |
| Terminal Clamp Material | Brass |
| Terminal Inside Dia. | Brass Hot, Silver Neutral, Green Ground |
| Terminal Screws | #8 Triple Drive Brass |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Wire Type | Stranded Or Solid |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.86 |
| Country of Origin | MX |
Product Variants
| Product | Model | Color | Housing Color | Grounding | Min. Operating Temp. | Max. Operating Temp. | Termination | Voltage | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TDR15-E | Black | Black | Grounded | -40°F | 167°F | Back Or Side Wire | 125V AC | 2 | €29.20 | |
 |
TDR15 | Brown | Brown | Grounded | -40°F | 167°F | Back Or Side Wire | 125V AC | 2 | €29.53 | |
 |
TDR15-W | White | White | Grounded | -40°F | 167°F | Back And Side Wire | 125V AC | 2 | €31.69 | |
 |
TDR15-I | Ivory | Ivory | Grounded | -40°F | 167°F | Back Or Side Wire | 125V AC | 2 | €26.59 |
