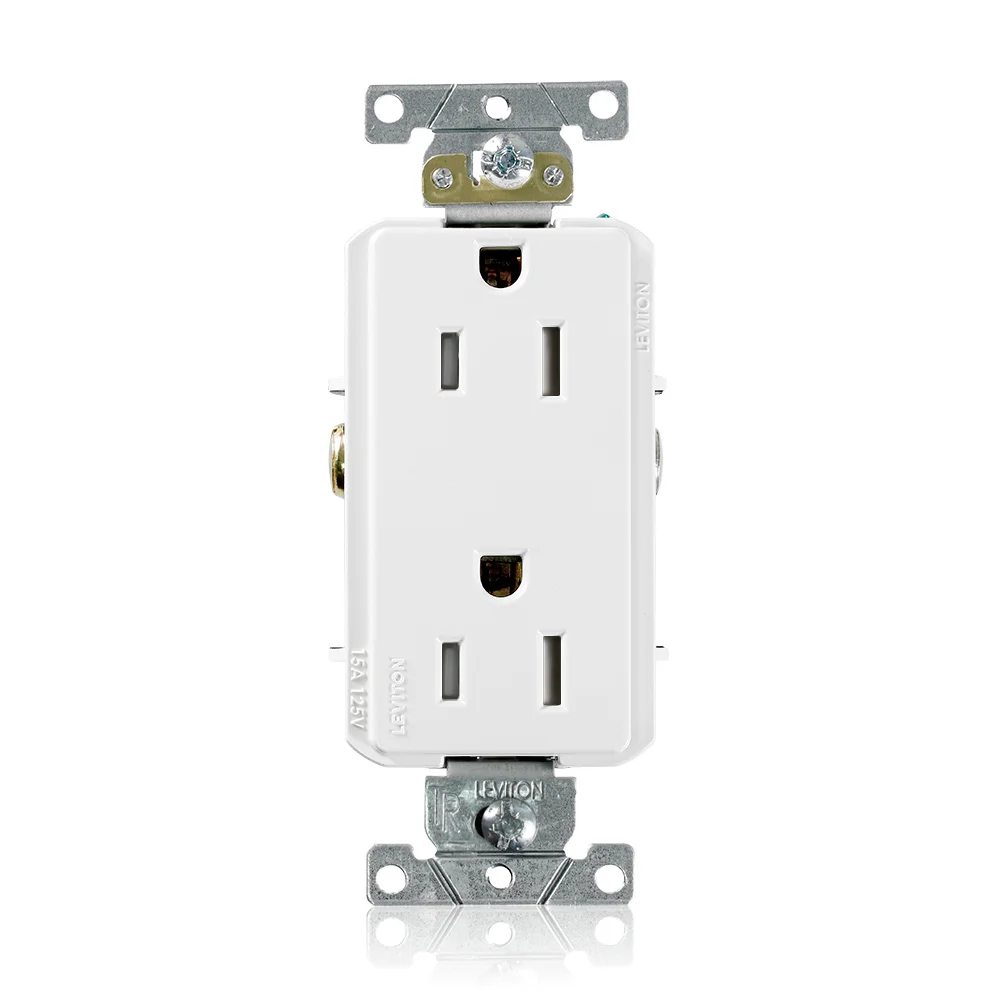

LEVITON TDR15-W Receptacle, Decorator Duplex, 5-15R, 15 A, 125V AC, White, 2 Poles, Screw Terminals
Item: CR9HQRModel: TDR15-WCross Ref: 792UU7
7 In Stock
Ships within 2 days via
10.00% off
€28.52 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | PBT Polyester |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 0.89" |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | White |
| Hp | 1/2 hp |
| Includes | Cover, Wallplate |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 167°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 0.9" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Tamper Resistant |
| Standards | Ansi, Csa Certified, Culus Listed, Federal Specification, Nom-Ance, Rohs Compliant, Ul Listed |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 2.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Color | Grounding | Body Material | Receptacle Type | Current Rating | Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TDR15-E | Black | Black | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €29.20 | |
 |
TDR15 | Brown | Brown | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €29.53 | |
 |
TDR15-GY | Gray | Gray | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €27.06 | |
 |
TDR15-I | Ivory | Ivory | Grounded | PBT Polyester | Decorator Duplex | 15A | 125V AC | Single | €26.59 |
