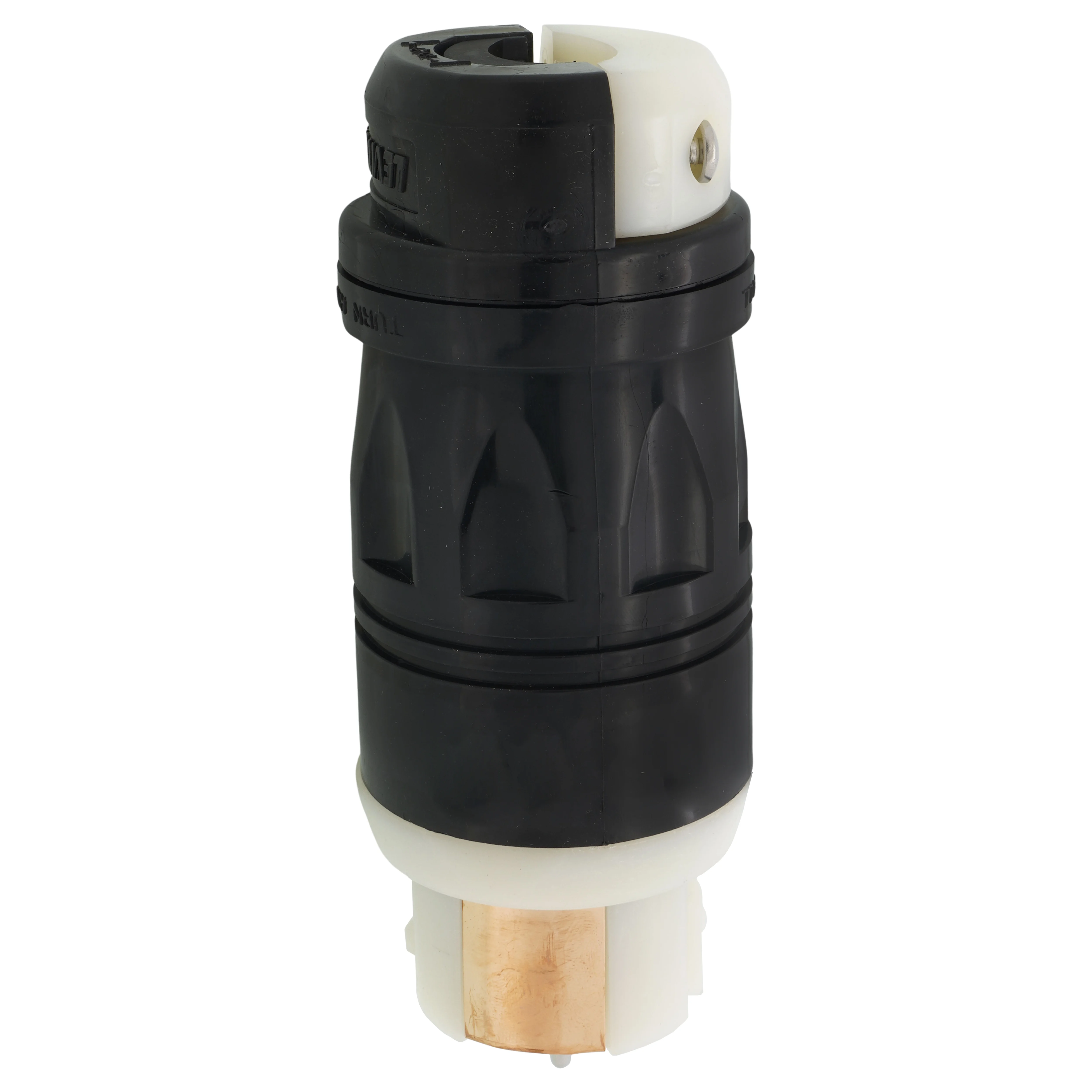

LEVITON CS8364C Grounding Locking Connector, 250 VAC, 50 A, 3 Poles, 4 Wires, Black/White

Item: EA6QCCModel: CS8364CCross Ref: 792UA4
7 In Stock

Ships within 2 days via

€236.14
5.00% off
€224.33 /unit
This product can only be shipped in multiples of 10
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Connector
Amps Interrupting Certified For Current Interrupting At Full Rated Current
Amps Rating 50A
Cable Clamp Screw Grade Grade 304
Cable Clamp Screw Material Stainless Steel
Cable Clamp Screw Type Philips Head
Cap Type NO Cap Or Cover
Comm Code Enhanced 51300
Configuration Non-NEMA Locking
Connection Orientation Straight
Constructional Feature Impact Resistant
Contact - Spring Value 0.041" Thick Brass
Contact-binding Plate 0.1"
Coo Mx
Cord Size 0.68" to 1 1/8"
Dielectric Voltage Withstand 2000V
Dimension S 2.56" x 7.1"
Face Dia. 2.59"
For Max. Cable Dia. 1 1/8"
For Min. Cable Dia. 17/25"
Grade General Use, Industrial
Ground Shunt Bronze
Grounding Grounding
Housing Color Black, White
Hts 8536694020
Ip Rating Not Rated
Max. Operating Temp. 75°C
Max. Wire Size 4 AWG
Max. Working Voltage 3 Phase 250v As Rated
Midget Locking No
Min. Dielectric Strength 2000v Per UL 498
Min. Operating Temp. -40°C
Min. Wire Size 10 AWG
Nema Plug Configuration - Plugs And Receptacles Non-Nema
Nema Receptacle Configuration Non Nema
No. Of Poles 3
No. Of Wire 4
Outside Dia. 2 14/25"
Overall Length 7.1"
Phase 3
Product Datasheet leviton-cs8364c.pdf
Resistance Properties Chemical Resistant, Impact Resistant, UV, Sunlight Resistant
Shrouded Yes
Supplier Standard Pack 1
Temp. Rating -40°C to +75°C
Temp. Rise Max 30ºC Temp Rise at Full Rated Current After 150 Cycles of OL at 150% Rated DC Current
Terminal Block 0.062" Thick Copper
Terminal Inside Dia. X, W, Y, Z, Green For Ground
Terminal Type Screw
Torque Allen Wrench to 35 lbs./in.
Type Grounding
Ul 94 Flammability Rating V-2
Voltage 250V AC
Wire Connection Type Screw Terminal
Wiring Style Standard

Shipping Info:

Ship weight (kg) 5
Ship height (cm)17.46
Ship length (cm)37.47
Ship width (cm)19.69
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelMin. Wire SizeNo. Of PolesHousing ColorFor Max. Cable Dia.For Min. Cable Dia.Max. Wire SizeVoltagePhasePrice
LEVITON 2713-B Locking Connector, L14-30R, 30 A, 125/250V AC, 3 Poles, Black, Screw Terminals, L14-30 | CR9HBW 792T99 2713-B14 AWG3Black1.15"0.595"-125/250V AC-€88.37
LEVITON 2423 Locking Connector, L15-20R, 20 A, 250V AC, 3 Poles, Black, Screw Terminals | CR9HBX 792T55 242318 AWG3Black0.775"14/25"10 AWG250V AC3€92.63
LEVITON 4729-C Locking Connector, L5-15R, 15 A, 125V AC, 2 Poles, Black/White, Screw Terminals, L5-15 | CR9HBY 792TH1 4729-C18 AWG2Black, White-0.23"10 AWG125V AC1€57.25
LEVITON 4729-CY Locking Connector, L5-15R, 15 A, 125V AC, 2 Poles, White/Yellow, Screw Terminals | CR9HBZ 792TH2 4729-CY18 AWG2White, Yellow0.7"6/25"10 AWG125V AC1€41.64
LEVITON 2613-B Locking Connector, L5-30R, 30 A, 125V AC, 2 Poles, Black, Screw Terminals, L5-30 | CR9HCA 792T75 2613-B16 AWG2Black0.93"0.385"-125V AC-€68.57
LEVITON 2613-PLC Locking Connector, L5-30R, 30 A, 125V AC, 2 Poles, Black/White, Screw Terminals, L5-30 | CR9HCB 792T77 2613-PLC16 AWG2Black, White0.93"0.385"8 AWG125V AC1€282.90
LEVITON 2613-CY Locking Connector, L5-30R, 30 A, 125V AC, 2 Poles, White/Yellow, Screw Terminals, L5-30 | CR9HCC 792T76 2613-CY16 AWG2White, Yellow0.93"0.385"8 AWG125V AC1€103.51
