LEVITON 9151-N Straight Blade Plug, 10-20P, 20 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9HJA 792U59

LEVITON 9151-N Straight Blade Power Plug, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Gray

Item: CR9HJAModel: 9151-NCross Ref: 792U59
7 In Stock

Ships within 2 days via

€143.78
5.00% off
€136.59 /unit
This product can only be shipped in multiples of 30
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Plug
Ac Hp @ Rated Voltage 2 hp, 1 hp
Amps 20A
Amps Limiting Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Blade Material Brass
Blades/contacts Solid Brass
Body Material Super Tough Nylon
Color Black
Connection Orientation Straight
Cord Range 0.625" to 1.375
Dielectric Voltage Withstands 2000V Per UL498
For Max. Cable Dia. 1 3/8"
For Min. Cable Dia. 5/8"
Grade General Use
Grounding Non Grounded , Non Grounding
Housing Color Black
Housing Material Super Tough Nylon
Hp 2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 140°F
Max. Wire Size 10 AWG
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 18 AWG
Nema Enclosure Rating Not Rated
Nema Plug Configuration 10-20P
Nema Rating NEMA 10-20P
No. Of Blades 3
No. Of Poles 3
No. Of Wires 3
Operating Temp. -40°C to +60°C
Phase 1
Polarized Yes
Product Datasheet leviton-9151-n.pdf
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Standards Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13393
Temp. Rise Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Inside Dia. Brass Hot, Green Ground, White Neutral
Torque 10 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 125/250V AC
Wire Connection Type Screw Terminal
Wire Gauge 18 AWG to 10 AWG
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)31.12
Ship length (cm)40.01
Ship width (cm)2.54
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelNema Plug ConfigurationAmpsVoltageGroundingMax. Wire SizeMin. Wire SizeHpMin. Operating Temp.Price
LEVITON 9332-P Angle Straight Blade Plug, 10-30P, 30 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JCX 792U61 9332-P10-30P30A125V ACNon Grounded4 AWG10 AWG2 hp-40°F€73.86
LEVITON 9450-P Angle Straight Blade Plug, 10-50P, 50 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JCY 792U63 9450-P10-50P50A125/250V ACNon Grounded4 AWG10 AWG3 hp-40°F€161.95
LEVITON 9432-P Angle Straight Blade Plug, 14-30P, 30 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JDA 792U62 9432-P14-30P30A125/250V ACGrounded4 AWG10 AWG2 hp-40°C€125.57
LEVITON 9452-P Angle Straight Blade Plug, 14-50P, 50 A, 125/250VAC, Black, 3 Poles | CR9JDB 792U64 9452-P14-50P50A125/250V ACGrounded4 AWG10 AWG3 hp-40°F€160.39
LEVITON 9462-P Angle Straight Blade Plug, 14-60P, 60 A, 125/250VAC, Black, 3 Poles | CR9JDC 792U66 9462-P14-60P60A125/250V ACGrounded4 AWG10 AWG3 1/2 hp-40°F€211.53
LEVITON 9530-P Angle Straight Blade Plug, 5-30P, 30 A, 125VAC, Black, 2 Poles, Screw Terminals | CR9JDM 792U67 9530-P5-30P30A125V ACGrounded4 AWG10 AWG2 hp-40°F€101.18

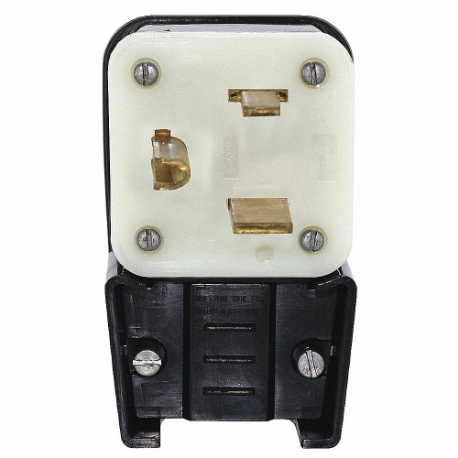

LEVITON 9550-P Angle Straight Blade Plug, 5-50P, 50 A, 125VAC, Black, 2 Poles | CR9JDN 792U68 9550-P5-50P50A125V ACGrounded4 AWG10 AWG2 hp-40°F€139.56
