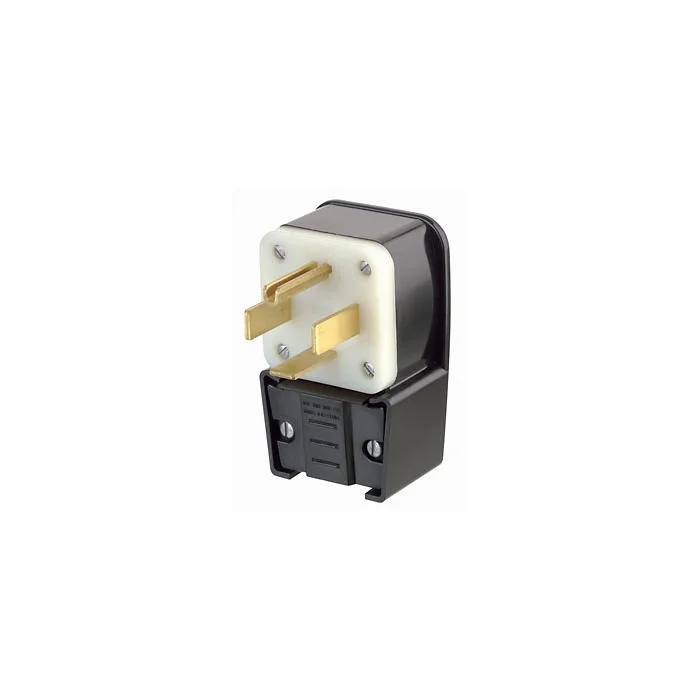

LEVITON 9462-P Angle Straight Blade Plug, 14-60P, 60 A, 125/250VAC, Black, 3 Poles | CR9JDC 792U66

LEVITON 9462-P Angled Straight Blade Power Plug, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Black

Item: CR9JDCModel: 9462-PCross Ref: 792U66
7 In Stock

Ships within 2 days via

€211.53
5.00% off
€200.96 /unit
This product can only be shipped in multiples of 10
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Straight Blade Plug
Ac Hp @ Rated Voltage 3 1/2 hp
Amps 60A
Amps Limiting Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Blade Material Brass
Blades/contacts Solid Brass
Body Length 1.89"
Body Material Super Tough Nylon
Color Black
Cord Range 0.625" to 1.375"
Device Type Straight Blade Plug
Dielectric Voltage Withstands 2000V Per UL498
Features Angled
For Max. Cable Dia. 1 3/8"
For Min. Cable Dia. 5/8"
Grade General Use
Grounding Grounded , Grounding
Housing Color Black
Housing Material Super Tough Nylon
Hp 3 1/2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 140°F , 60°C
Max. Wire Size 4 AWG
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 10 AWG
Nema Enclosure Rating Not Rated
Nema Plug Configuration 14-60P
Nema Rating NEMA WD-6
No. Of Blades 4
No. Of Poles 3
Operating Temp. -40°C to +60°C
Phase 1
Polarized Yes
Product Datasheet leviton-9462-p.pdf
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant
Temp. Rise Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current
Terminal Accom. Up to 4 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Torque 16 lbs.-in. to 20 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 125/250V AC
Wire 4
Wire Connection Type Screw Terminal
Wire Gauge 10 AWG to 4 AWG
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.3
Ship height (cm)22.54
Ship length (cm)27.62
Ship width (cm)8.89
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelNema Plug ConfigurationAmpsVoltageGroundingMax. Wire SizeMin. Wire SizeHpMin. Operating Temp.Price
LEVITON 9151-N Straight Blade Plug, 10-20P, 20 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9HJA 792U59 9151-N10-20P20A125/250V ACNon Grounded10 AWG18 AWG2 hp-40°F€143.78
LEVITON 9332-P Angle Straight Blade Plug, 10-30P, 30 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JCX 792U61 9332-P10-30P30A125V ACNon Grounded4 AWG10 AWG2 hp-40°F€73.86
LEVITON 9450-P Angle Straight Blade Plug, 10-50P, 50 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JCY 792U63 9450-P10-50P50A125/250V ACNon Grounded4 AWG10 AWG3 hp-40°F€161.95
LEVITON 9432-P Angle Straight Blade Plug, 14-30P, 30 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JDA 792U62 9432-P14-30P30A125/250V ACGrounded4 AWG10 AWG2 hp-40°C€125.57
LEVITON 9452-P Angle Straight Blade Plug, 14-50P, 50 A, 125/250VAC, Black, 3 Poles | CR9JDB 792U64 9452-P14-50P50A125/250V ACGrounded4 AWG10 AWG3 hp-40°F€160.39
LEVITON 9530-P Angle Straight Blade Plug, 5-30P, 30 A, 125VAC, Black, 2 Poles, Screw Terminals | CR9JDM 792U67 9530-P5-30P30A125V ACGrounded4 AWG10 AWG2 hp-40°F€101.18
LEVITON 9550-P Angle Straight Blade Plug, 5-50P, 50 A, 125VAC, Black, 2 Poles | CR9JDN 792U68 9550-P5-50P50A125V ACGrounded4 AWG10 AWG2 hp-40°F€139.56
