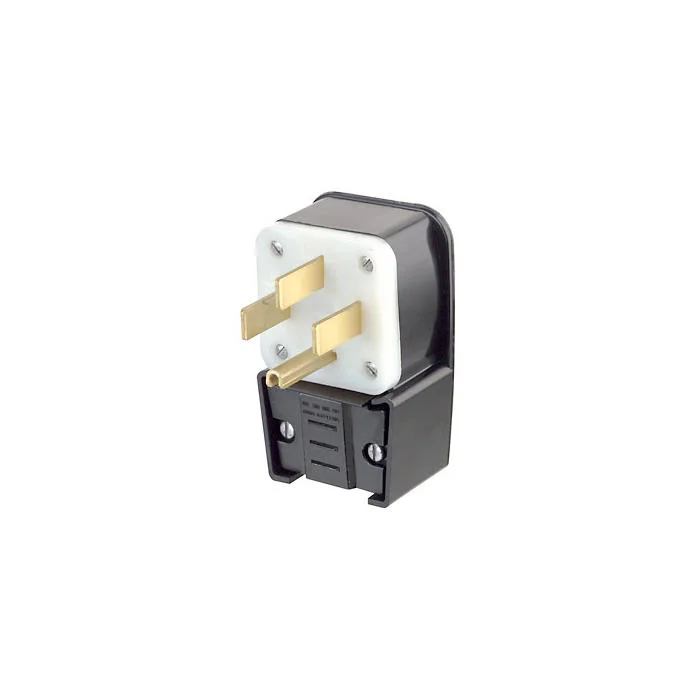

LEVITON 9452-P Angled Straight Blade Power Plug, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Item: CR9JDBModel: 9452-PCross Ref: 792U64
7 In Stock
Ships within 2 days via
5.00% off
€152.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Blade Plug |
| Ac Hp Ratings At Rated Voltage | 3 hp |
| Amps | 50A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Length | 1.89" |
| Body Material | Super Tough Nylon |
| Color | Black |
| Connection Orientation | Angled |
| Cord Range | 0.625" to 1.375" |
| Current Limiting | Full Rated Current |
| Current Rating | 50A |
| Device Type | Power Device |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Features | Angled |
| For Maximum Cable Diameter | 1 3/8" |
| For Minimum Cable Diameter | 5/8" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Super Tough Nylon |
| Hp | 3 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 4 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 10 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 14-50P |
| Nema Rating | NEMA WD-6 |
| Number Of Blades | 4 |
| Number Of Poles | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-9452-p.pdf |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Ul 498 File E13399 |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | Up to 4 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Torque Range | 16 lbs.-in. to 20 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125/250V AC |
| Voltage Rating | 125/250V AC |
| Wire | 4 |
| Wire Connection Type | Screw Terminals |
| Wire Gauge | 10 AWG to 4 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 22.54 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Nema Plug Configuration | Amps | Voltage | Number Of Poles | Number Of Blades | Grounding | Hp | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9151-N | 10-20P | 20A | 125/250V AC | 3 | 3 | Non Grounded | 2 hp | NEMA 10-20P | €143.78 | |
 |
9332-P | 10-30P | 30A | 125V AC | 3 | 3 | Non Grounded | 2 hp | NEMA WD-6 | €73.86 | |
 |
9450-P | 10-50P | 50A | 125/250V AC | 3 | 3 | Non Grounded | 3 hp | NEMA 10-50P | €161.95 | |
 |
9432-P | 14-30P | 30A | 125/250V AC | 3 | 4 | Grounded | 2 hp | NEMA WD-6 | €125.57 | |
 |
9462-P | 14-60P | 60A | 125/250V AC | 3 | 4 | Grounded | 3 1/2 hp | NEMA WD-6 | €211.53 | |
 |
9530-P | 5-30P | 30A | 125V AC | 2 | 3 | Grounded | 2 hp | - | €101.18 | |
 |
9550-P | 5-50P | 50A | 125V AC | 2 | 3 | Grounded | 2 hp | NEMA WD-6 | €139.56 |
