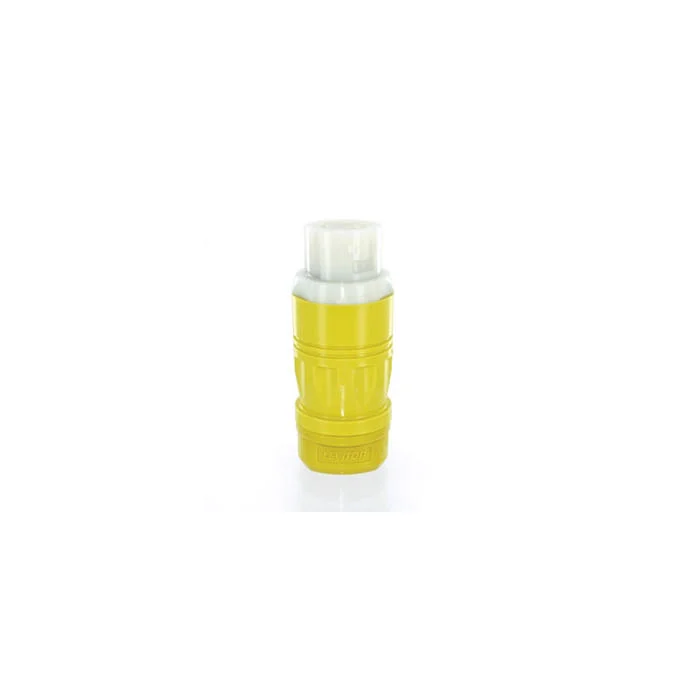

LEVITON 6364CR Grounding Locking Connector, 125/250 VAC, 50 A, 3 Poles, 4 Wires, White/Yellow

Item: CR9HCNModel: 6364CRCross Ref: 792TX1

7 In Stock

125V AC

Voltage Rating

3

3
2

Number Of Poles

50A

Current Rating

Ships within 2 days via

~~€292.25~~

5.00% off

€277.64 /unit

This product can only be shipped in multiples of 10

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Locking Connector
Amps	50A
Assembly Screws Finish	Nickel Plated
Assembly Screws Material	Brass
Body Material	Nylon
Cable Clamp Screw Grade	Grade 304
Cable Clamp Screw Material	Stainless Steel
Cable Clamp Screw Type	Philips Head
Cap Type	No Cap, Cover
Center Pin Grade	Grade 302, Grade 304
Center Pin Material	Stainless Steel
Color	Yellow
Compression Nut, Strain Relief	Nylon
Connection Orientation	Straight
Connector Contact - Spring Material	Brass
Contact - Binding Plate Material	Brass
Contact - Binding Plate Thickness	0.1"
Contact - Spring Finish	Nickel Plated
Contact - Spring Thickness	0.041"
Contact Binding Plate Finish	Nickel Plated
Contact Material	Brass
Contact Rivet Finish	Nickel Plated
Contact Rivet Material	Brass
Cord Range	0.68" to 1.125"
Current Interrupting	Certified For Current Interrupting At Full Rated Current
Current Rating	50A
Device Type	Locking Connector
Dielectric Voltage Withstand	2000V Minimum Per UL 498
Dust Shield	Santoprene TPE
Environment	Corrosive
Face Dia.	2.59"
Face Module	Nylon
Flammability	UL94 V-2
For Environment	Corrosive
For Maximum Cable Diameter	1 1/8"
For Minimum Cable Diameter	17/25"
Grade	General Use
Grommet/gasket	Santoprene TPE
Ground Post Finish	Nickel Plated
Ground Post Material	Brass
Ground Shunt Finish	Nickel Plated
Ground Shunt Material	Bronze
Grounding	Grounded , Grounding
Housing Color	Yellow
Insulation Material	Nylon
Ip Rating	Not Rated
Length	6.47"
Market	Industrial
Max. Operating Temp.	75°C
Max. Wire Size	4 AWG
Max. Working Voltage	125/250V
Midget Locking	No
Min. Operating Temp.	-40°C
Min. Wire Size	10 AWG
Minimum Operating Temperature	-40°F
Nema Enclosure Rating	Not Rated
Nema Rating	NEMA Non
Nema Receptacle Configuration	Non-NEMA
Number Of Poles	3
Number Of Wires	4
Operating Temp.	-40°C to +75°C
Outside Dia.	2 14/25"
Outside Diameter	2.56"
Overall Length	6.47"
Polarized	Yes
Resistance Properties	Chemical Resistant, Corrosion Resistant, Impact Resistant, UV/Sunlight Resistant
Shrouded	Yes
Standard Cable Clamp	Nylon
Temp. Rise	Max. 30 Temp Rise At Full-Rated Current After 150 Cycles Of Ol At 150% Rated Dc Current
Terminal Accom.	AWG #10 to #4 Stranded Wire
Terminal Block Finish	Nickel Plated
Terminal Block Material	Copper
Terminal Block Size	0.062"
Terminal Id	X, W, Y, Z And Green For Ground
Terminal Screws Material	Stainless Steel
Terminal Set Screw Grade	Grade 302, Grade 304
Ul 94 Flammability Rating	V-2
Voltage	125/250V AC
Voltage Rating	125V AC
Wire	4
Wire Connection Type	Screw Terminals
Wiring Chamber	Nylon
Wiring Style	Standard

Shipping Info:

Ship weight (kg)	0.05
Ship height (cm)	19.69
Ship length (cm)	37.47
Ship width (cm)	6.99
Country of Origin	MX

Product Variants

Model	Number Of Poles	Number Of Wires	Housing Color	Current Rating	Voltage Rating	Grade	Nema Rating	Amps	Price
7565-C	3	3	Black, White	15/20A	125/250V AC	Federal Specification	NEMA WD-6	15/10A	€66.76
7413-C	3	4	Black, White	20A	120/208V AC	Federal Specification	NEMA WD-6	20A	€91.49
7314-C	3	3	Black, White	-	-	Federal	NEMA WD-6	20A	€73.89
3333-GC	2	3	Black, White	30A	250V AC	Federal Specification	NEMA WD-6	30A	€74.21
6360CR	2	3	Yellow	50A	125V AC	General Use	NEMA Non	50A	€335.25
3762C	2	3	Black, White	50A	250V AC	General Use	NEMA Non	50A	€290.17
3764C	3	4	Black, White	50A	250V AC	General Use	NEMA Non	50A	€284.29
