LEVITON 7565-C Locking Connector, Non-NEMA, 15/20 A, 125/250V AC, 3 Poles, Black/White | CR9HCH 792TY7

LEVITON 7565-C Non-Grounding Cable Mount Locking Connector, 1 Phase, 125/250 VAC, 10/15 A, 3 Poles, 3 Wires, Black/White

Item: CR9HCHModel: 7565-CCross Ref: 792TY7
7 In Stock
125/250V AC
3
15/20A

Ships within 2 days via

€66.76
5.00% off
€63.42 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Connector
Amps 15/10A , 15/20A
Amps Interrupting Certified For Current Interrupting At Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Back Cover Thermoplastic
Blades/contacts Solid Brass
Body Material Nylon
Cap Type No Cap, Cover
Clamp Insert Material Nylon
Color Black And White
Connection Orientation Straight
Contact Material Brass
Cord Range 0.24" to 0.7"
Cord-clamp Nylon
Dielectric Voltage Withstands 2000V Per UL498
Environment Dry
Face Dia. 1.97"
Flammability Rated HB Or Better UL94
For Environment Dry
For Max. Cable Dia. 0.7"
For Min. Cable Dia. 6/25"
Grade Federal Specification
Grounding Non Grounded , Non Grounding
Housing Color Black, White
Housing Material Nylon
Insulation Material Nylon
Ip Rating Not Rated
Length 3.78"
Market Industrial
Max. Operating Temp. 140°F
Max. Wire Size 10 AWG
Midget Locking No
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 18 AWG
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-6
Nema Receptacle Configuration Non NEMA
No. Of Poles 3
No. Of Wires 3
Operating Temp. -40°C to +60°C
Outside Dia. 2.22"
Overall Length 3.78"
Polarized Yes
Resistance Properties Chemical Resistant, Impact Resistant, UV, Sunlight Resistant
Shrouded No
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Terminal Screws Brass
Torque 10 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating HB
Voltage 125/250V AC
Wire Connection Type Screw Terminal
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.89
Ship height (cm)22.86
Ship length (cm)23.81
Ship width (cm)15.24
Country of OriginMX

Product Variants

ProductModelHousing ColorGradeNema RatingAmpsGroundingMax. Wire SizeMin. Wire SizeMax. Operating Temp.Price
LEVITON 7413-C Locking Connector, Non-NEMA, 20 A, 120/208V AC, 3 Poles, Black/White | CR9HCJ 792TY6 7413-CBlack, WhiteFederal SpecificationNEMA WD-620ANon Grounded10 AWG14 AWG140°F€91.49
LEVITON 7314-C Locking Connector, Non-NEMA, 20 A, 125/250V AC, 3 Poles, Black/White | CR9HCK 792TY2 7314-CBlack, WhiteFederalNEMA WD-620ANon Grounded10 AWG14 AWG60°C€73.89
LEVITON 3333-GC Locking Connector, Non-NEMA, 30 A, 250V AC, 2 Poles, Black/White, Federal Specification | CR9HCL 792TG2 3333-GCBlack, WhiteFederal SpecificationNEMA WD-630AGrounded8 AWG16 AWG140°F€74.21
LEVITON 6360CR Locking Connector, Non-NEMA, 50 A, 125V AC, 2 Poles, Yellow, Gen Use | CR9HCM 792TW9 6360CRYellowGeneral UseNEMA Non50AGrounded4 AWG10 AWG75°C€335.25
LEVITON 6364CR Locking Connector, Non-NEMA, 50 A, 125V AC, 3 Poles, Yellow, Gen Use | CR9HCN 792TX1 6364CRYellowGeneral UseNEMA Non50AGrounded4 AWG10 AWG75°C€292.25
LEVITON 3762C Locking Connector, Non-NEMA, 50 A, 250V AC, 2 Poles, Black/White, Gen Use | CR9HCP 792TG4 3762CBlack, WhiteGeneral UseNEMA Non50AGrounded4 AWG10 AWG75°C€290.17

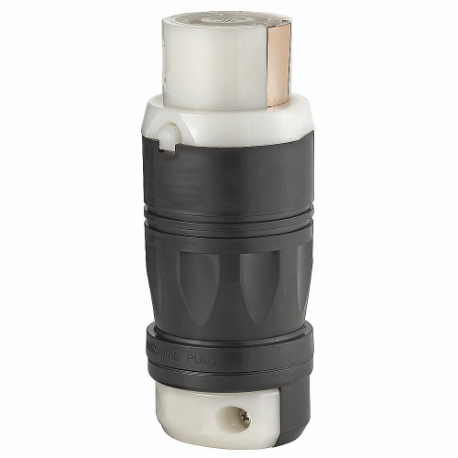

LEVITON 3764C Locking Connector, Non-NEMA, 50 A, 250V AC, 3 Poles, Black/White, Gen Use | CR9HCQ 792TG6 3764CBlack, WhiteGeneral UseNEMA Non50AGrounded4 AWG10 AWG75°C€284.29
