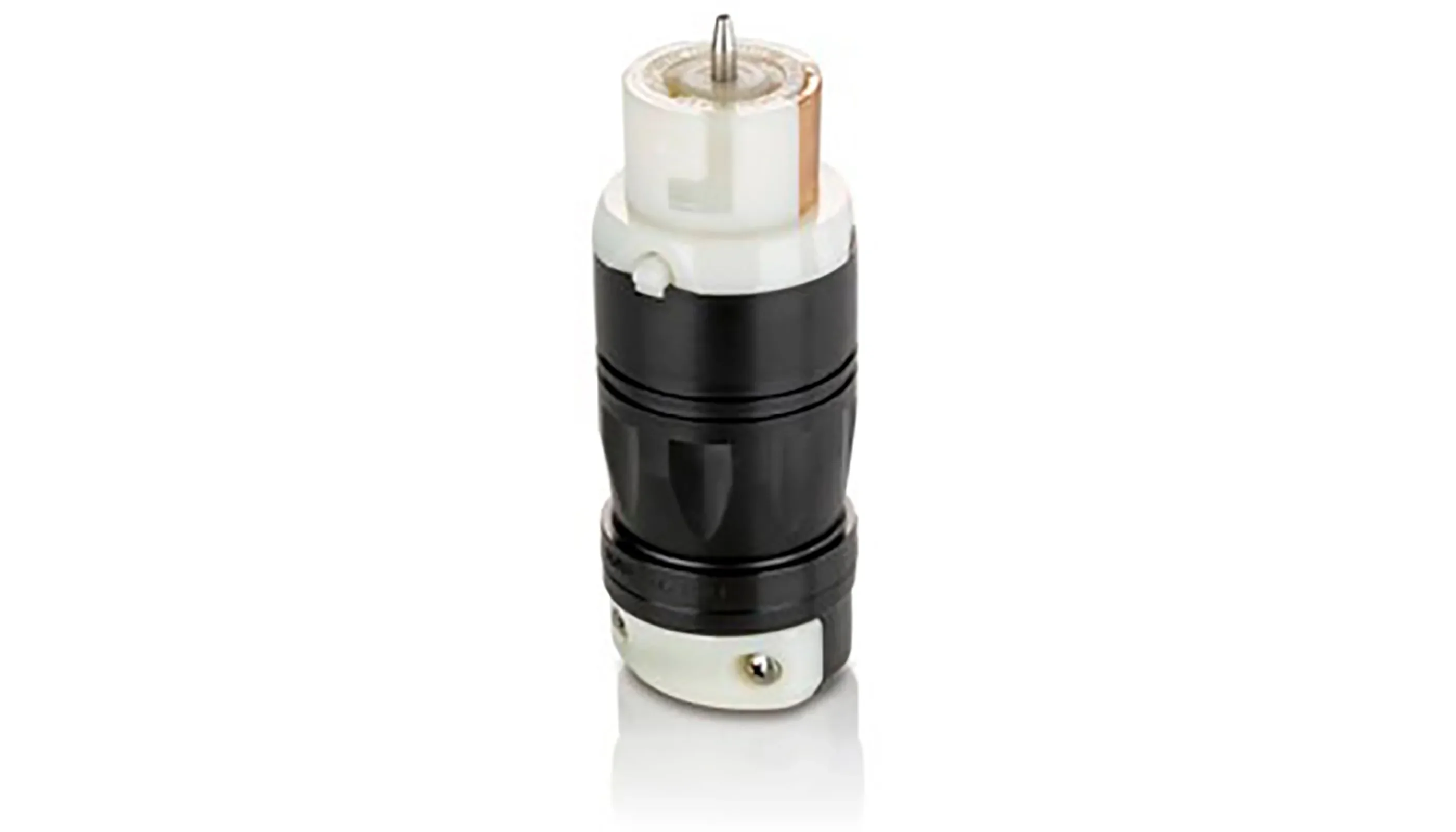

LEVITON 7764C Grounding Locking Connector, 600 VAC/250 VDC, 50 A, 3 Poles, 4 Wires, Black/White
Item: CR9HCRModel: 7764CCross Ref: 792TY9
7 In Stock
250V DC/600V AC
3
50A
Ships within 2 days via
5.00% off
€285.65 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 50A |
| Assembly Screws Material | Brass |
| Body Material | Nylon |
| Cable Clamp Screw Grade | Grade 304 |
| Cable Clamp Screw Material | Stainless Steel |
| Cable Clamp Screw Type | Philips Head |
| Cap Type | No Cap, Cover |
| Color | Black And White |
| Connection Orientation | Straight |
| Contact - Binding Plate Material | Brass |
| Contact - Binding Plate Thickness | 0.1" |
| Contact - Spring Material | Brass |
| Contact - Spring Thickness | 0.041" |
| Contact Material | Brass |
| Contact Rivet Material | Brass |
| Cord Range | 0.68" to 1.125" |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 50A |
| Device Type | Locking Connector |
| Dielectric Voltage Withstand | 2000V Minimum Per UL 498 |
| Dust Shield | Santoprene TPE |
| Environment | Dry |
| Face Dia. | 2.59" |
| Face Module | Nylon |
| Flammability | UL94V-2 |
| For Environment | Dry |
| For Maximum Cable Diameter | 1 1/8" |
| For Minimum Cable Diameter | 17/25" |
| Grade | General Use |
| Ground Post Material | Brass |
| Ground Shunt Material | Bronze |
| Grounding | Grounded , Grounding |
| Housing Color | Black, White |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Length | 6.47" |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Working Voltage | 600/250V AC/DC |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA Non |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Temp. | -40°C to +75°C |
| Outside Dia. | 2 14/25" |
| Outside Diameter | 2.56" |
| Overall Length | 6.47" |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | Yes |
| Standard Cable Clamp | Nylon |
| Temp. Rise | Max. 30 Temp Rise At Full-Rated Current After 150 Cycles Of Ol At 150% Rated Dc Current |
| Terminal Accom. | #10 Min to #4 Max AWG Solid Or Stranded Wire |
| Terminal Block Material | Copper |
| Terminal Block Size | 0.062" |
| Terminal Id | X, W, Y, Z And Green For Ground |
| Terminal Set Screw Grade | Grade 302, Grade 304 |
| Terminal Set Screw Material | Stainless Steel |
| Torque Range | Allen Wrench to 35 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V DC/600V AC |
| Voltage Rating | 250V DC/600V AC |
| Wire | 4 |
| Wire Connection Type | Screw Terminals |
| Wiring Chamber | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 37.47 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Housing Color | Current Rating | Voltage Rating | Grade | Nema Rating | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

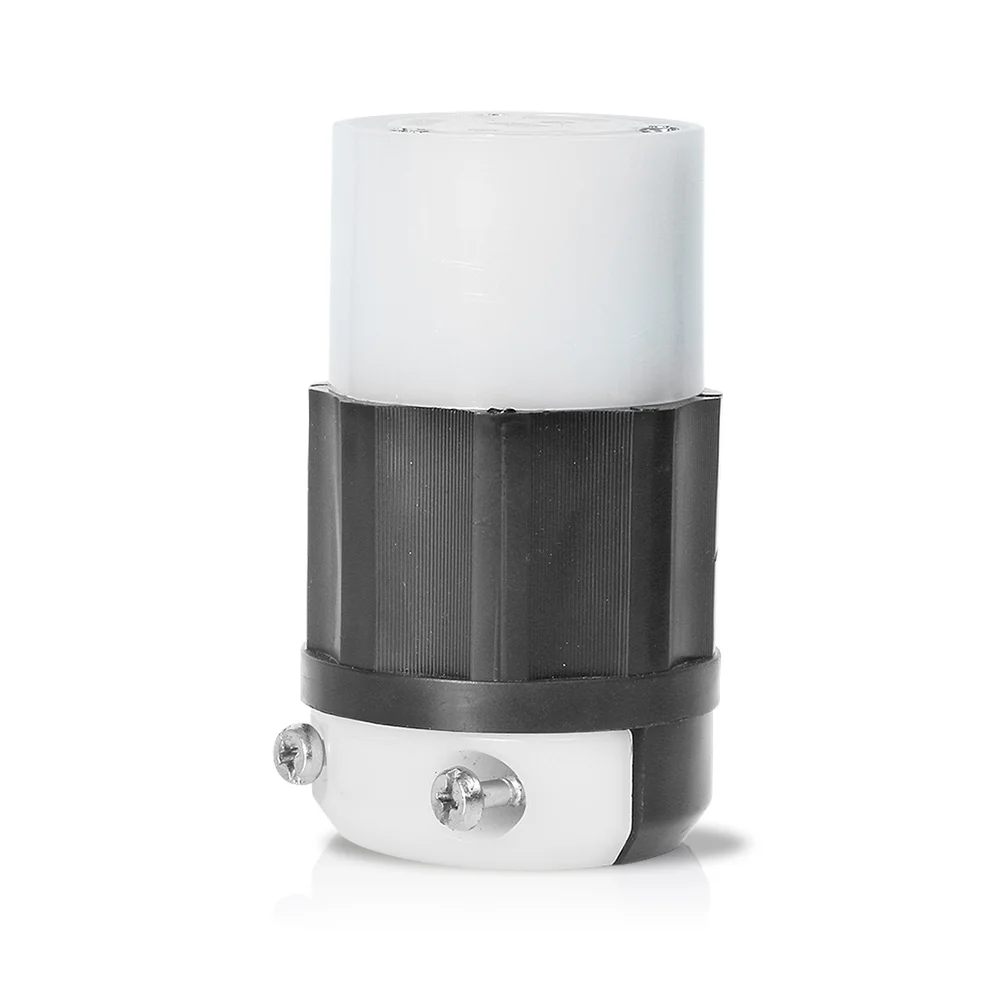

7565-C | 3 | 3 | Black, White | 15/20A | 125/250V AC | Federal Specification | NEMA WD-6 | 15/10A | €66.76 | |
 |
7413-C | 3 | 4 | Black, White | 20A | 120/208V AC | Federal Specification | NEMA WD-6 | 20A | €91.49 | |
 |

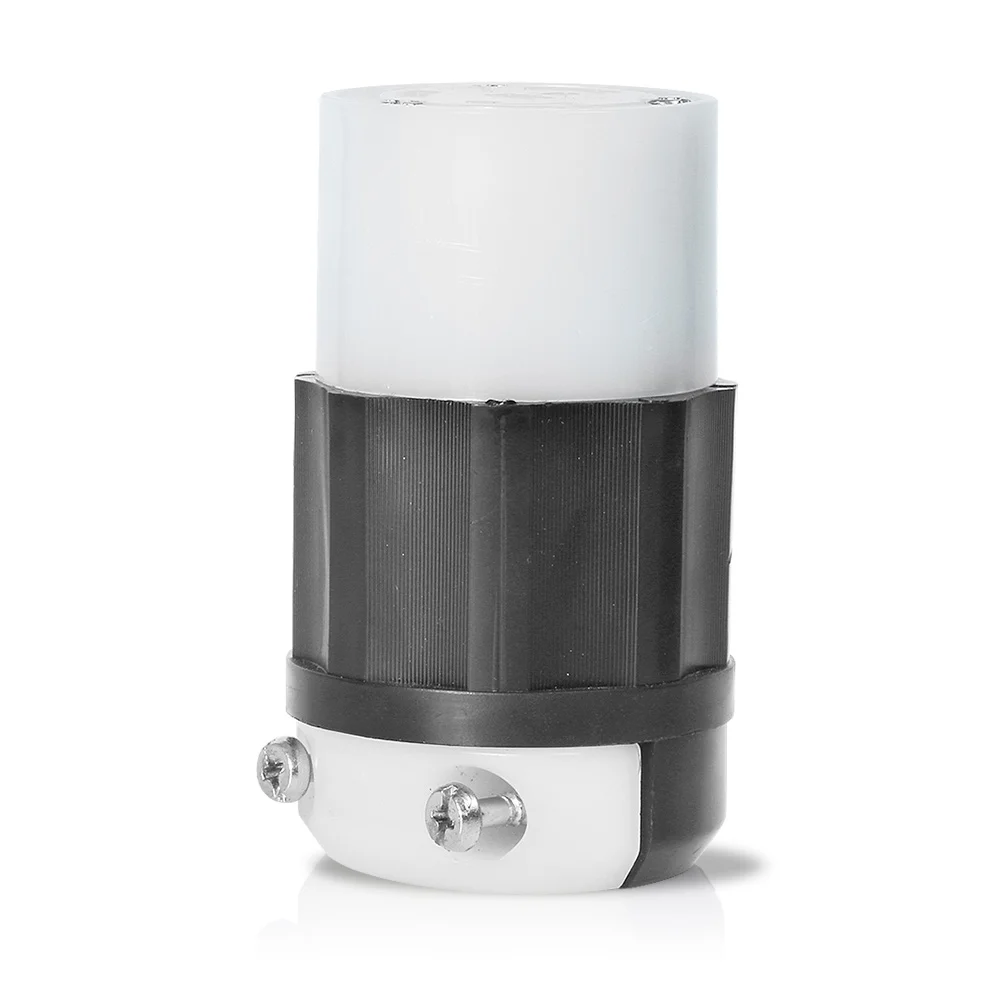

7314-C | 3 | 3 | Black, White | - | - | Federal | NEMA WD-6 | 20A | €73.89 | |
 |

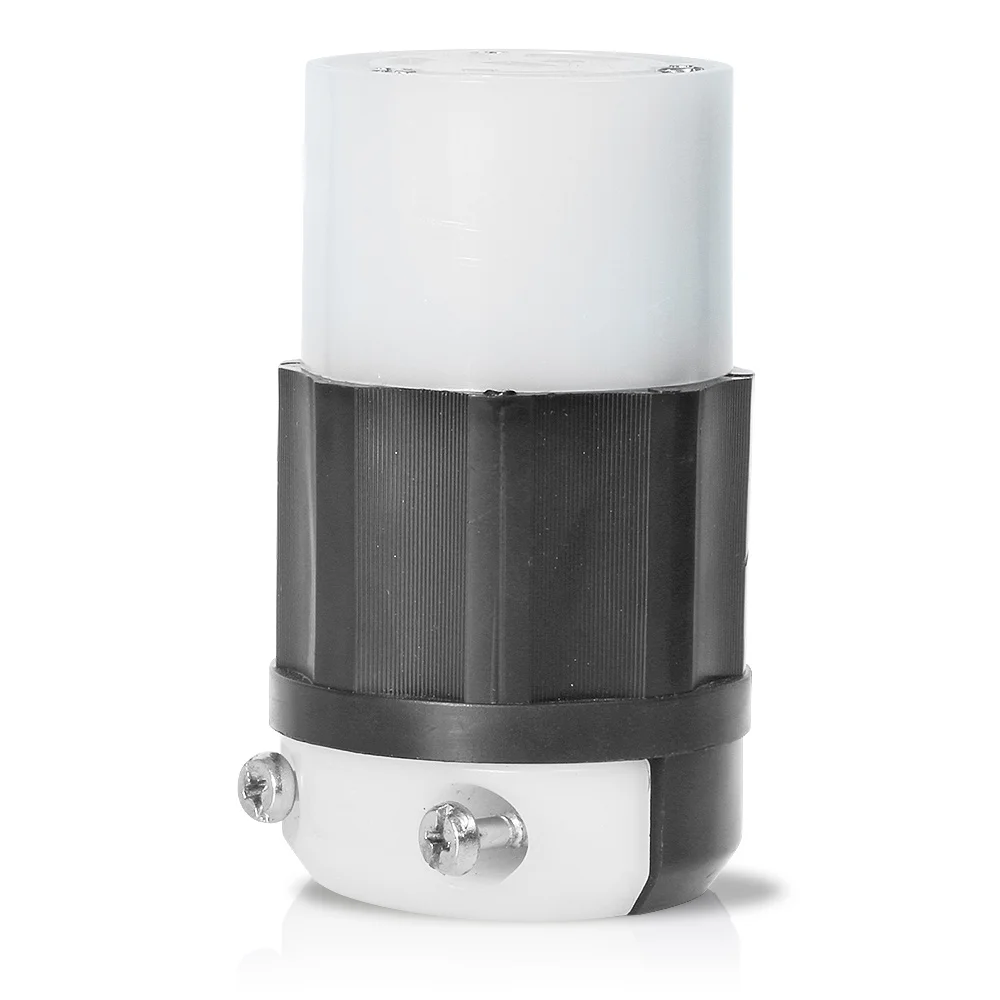

3333-GC | 2 | 3 | Black, White | 30A | 250V AC | Federal Specification | NEMA WD-6 | 30A | €74.21 | |
 |

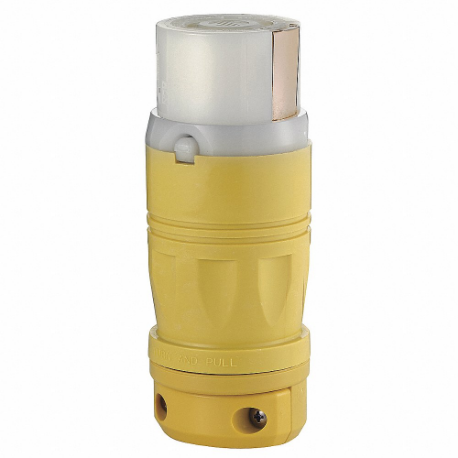

6360CR | 2 | 3 | Yellow | 50A | 125V AC | General Use | NEMA Non | 50A | €335.25 | |
|
6364CR | 3 | 4 | Yellow | 50A | 125V AC | General Use | NEMA Non | 50A | €292.25 | |
 |

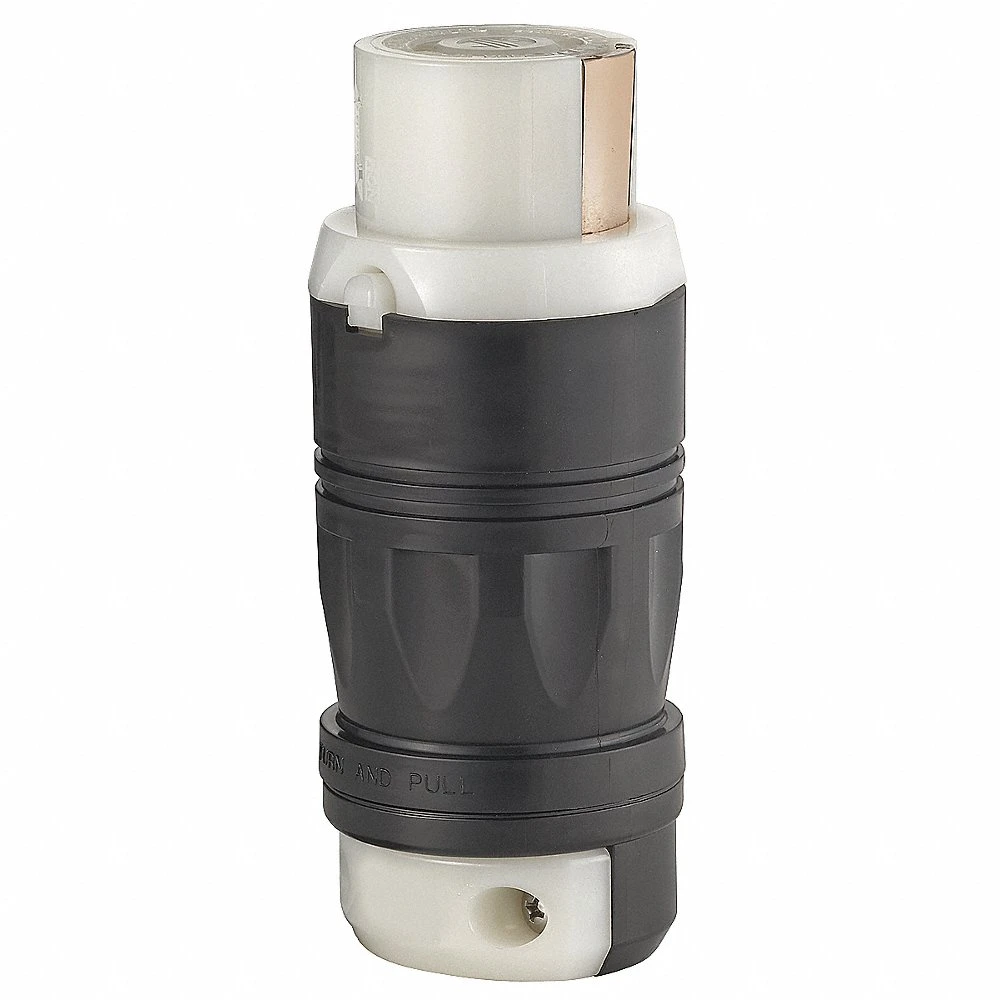

3762C | 2 | 3 | Black, White | 50A | 250V AC | General Use | NEMA Non | 50A | €290.17 |
