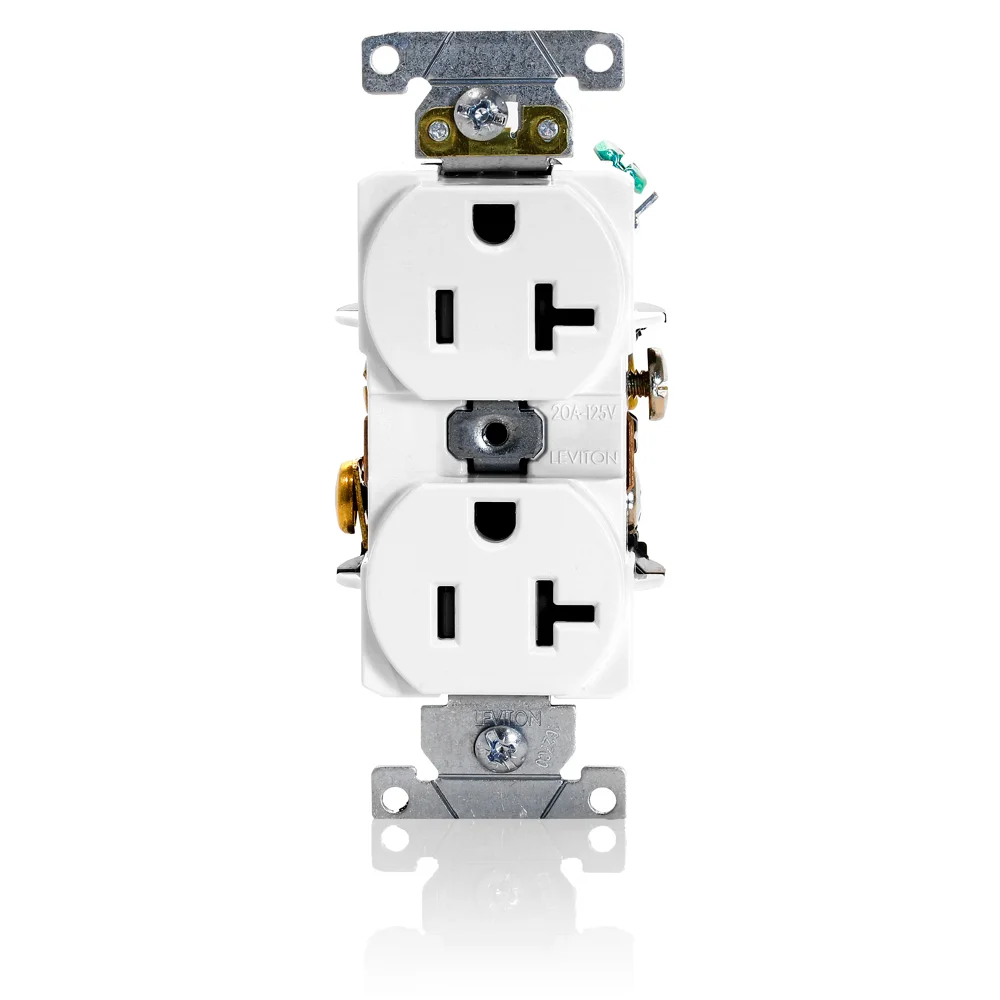

LEVITON 5362-SW Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Thermoplastic, White
Item: CR9HVPModel: 5362-SWCross Ref: 792TT7
7 In Stock
Ships within 2 days via
5.00% off
€13.42 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | PBT |
| Clamp Nuts Finish | Galvanized |
| Clamp Nuts Material | Steel |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | PBT |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Federal Specification , Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Steel |
| Grounding Screw Size | #8-32 |
| Housing Color | White |
| Housing Material | PBT |
| Hp | 1 hp |
| Includes | Grounding Clip |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5362-sw.pdf |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Standard Protection |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nom 057 Certified, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 10-32 |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.38 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Current Rating | Voltage Rating | Wire Connection Location | Housing Color | Surge Protection | Color | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16252-DIN | Decorator Duplex | 15A | 125V AC | Back | Gray | - | Gray | NEMA 5-15R | €129.40 | |
 |
5279-CWP | Single | 15A | 125V AC | Back | Gray | No | Gray | NEMA WD-6 | €124.61 | |
 |
16262-I | Decorator Duplex | 15A | 125V AC | Back, Side | Ivory | - | Ivory | NEMA WD-6 | €23.24 | |
 |
T5380-I | Decorator Duplex | 20A | 125V AC | Back, Side | Ivory | Yes | Ivory | NEMA WD-6 | €170.54 | |
 |
5362-SI | Duplex | 20A | 125V AC | Back, Side | Ivory | - | Ivory | NEMA WD-1 And NEMA WD-6 | €11.77 | |
 |
5361-IG | Single | 20A | 125V AC | Back, Side | Orange | - | Orange | NEMA WD-6 | €54.59 | |
 |
5292 | Duplex | 15A | 125/250V AC | Side | Brown | - | Brown | NEMA WD-6 | €57.28 |
