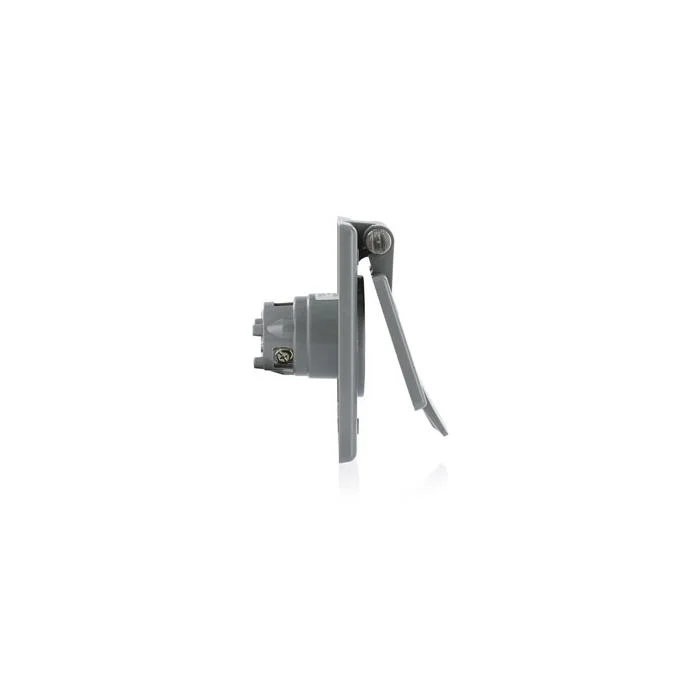

LEVITON 5279-CWP Straight Blade Flanged Outlet, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Item: CR9GYXModel: 5279-CWPCross Ref: 792TM9
7 In Stock
Ships within 2 days via
5.00% off
€118.38 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Receptacle |
| Ac Hp @ Rated Voltage | 1/2 hp |
| Afci | No |
| Amps | 15A |
| Amps Limiting | Full Rated Current |
| Body Material | Thermoplastic , Thermoplastic Glass Filled |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover And Plate Material | Glass Filled Thermoplastic |
| Cover Type | No Cover |
| Device Type | Straight Blade Flanged Inlet |
| Dielectric Voltage | Withstands 1500V Per UL498 |
| Environment | Dry |
| Face Material | Thermoplastic Glass Filled |
| Face Plate Height | 4.6" |
| Face Plate Width | 3" |
| Flammability | Rated V-2 Per UL 94 |
| Flange Shape | Rectangular |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | Gray |
| Hp | 1/2 hp |
| Included | Strap Material |
| Included Mounting Hardware | Yes |
| Ip Rating | Not Rated |
| Line Contacts Material | Brass |
| Max. Operating Temp. | 140°F , 60°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 18 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Recessed |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Outlets | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-5279-cwp.pdf |
| Receptacle Type | Single |
| Screw Terminal Torque | 10 lbs.-in. to 14 lbs.-in. |
| Signal & Power Protection | Standard Protection |
| Special Resistance Properties | Impact Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-16347, Nema Wd-6, Ul 498 File E13399 |
| Surge Protection | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 10-32 |
| Termination | Standard Wire Wells |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 22.54 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Location | Housing Color | Surge Protection | Color | Nema Rating | Voltage | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

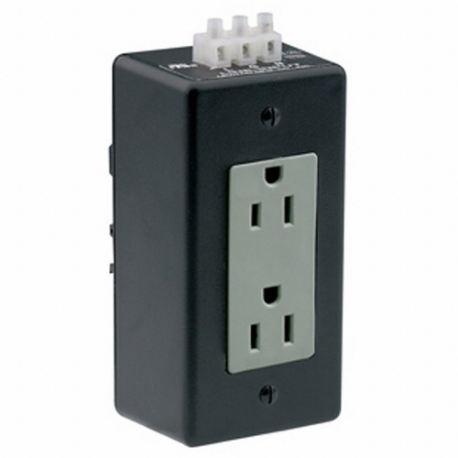

16252-DIN | Decorator Duplex | Back | Gray | - | Gray | NEMA 5-15R | 125V AC | Flush | €129.40 | |
 |

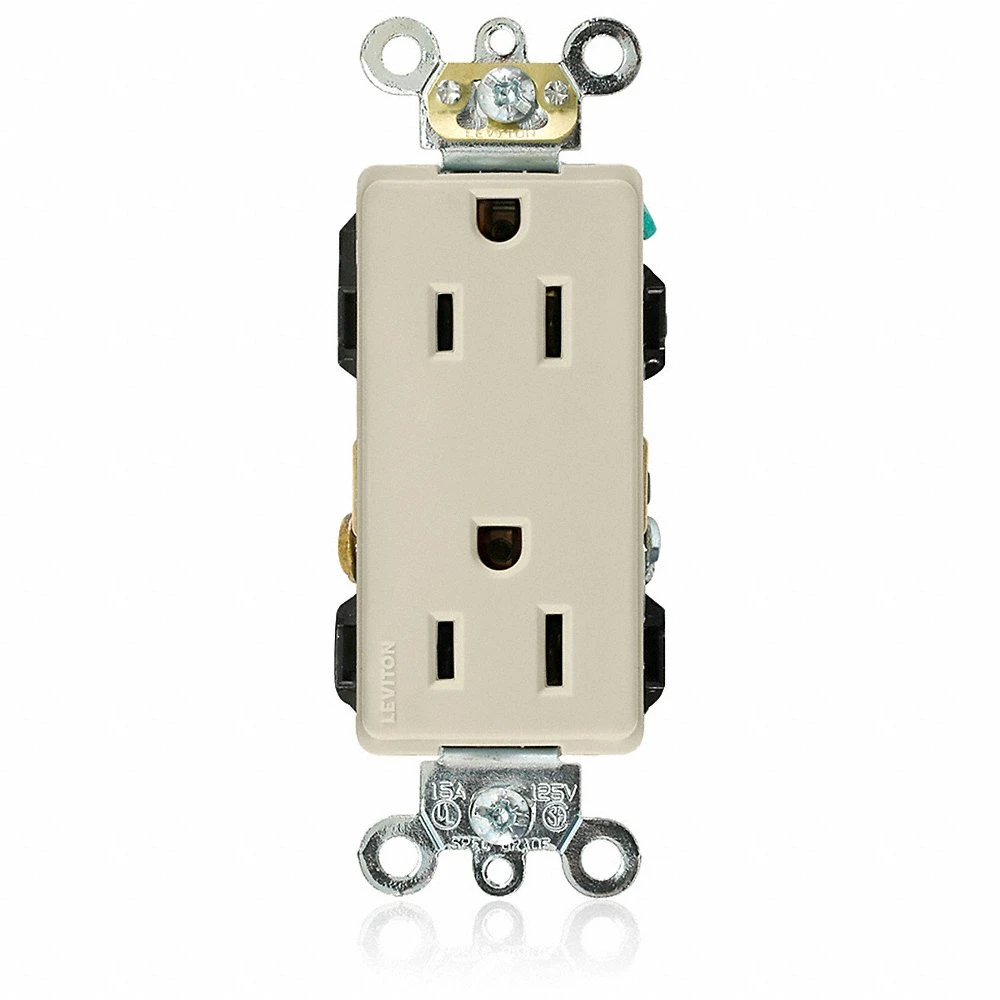

16262-I | Decorator Duplex | Back, Side | Ivory | - | Ivory | NEMA WD-6 | 125V AC | Flush | €23.24 | |
 |

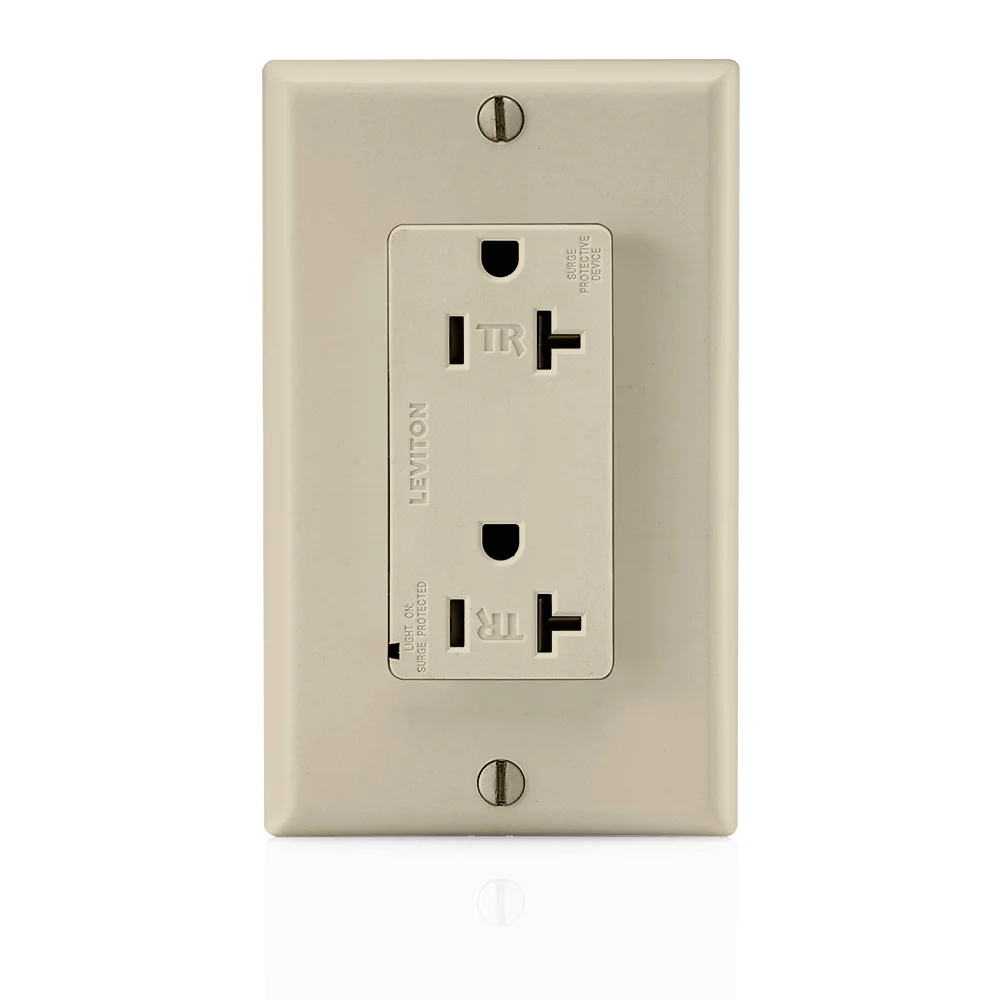

T5380-I | Decorator Duplex | Back, Side | Ivory | Yes | Ivory | NEMA WD-6 | 125V AC | Flush | €170.54 | |
 |
5362-SI | Duplex | Back, Side | Ivory | - | Ivory | NEMA WD-1 And NEMA WD-6 | 125V AC | Flush | €11.77 | |
 |

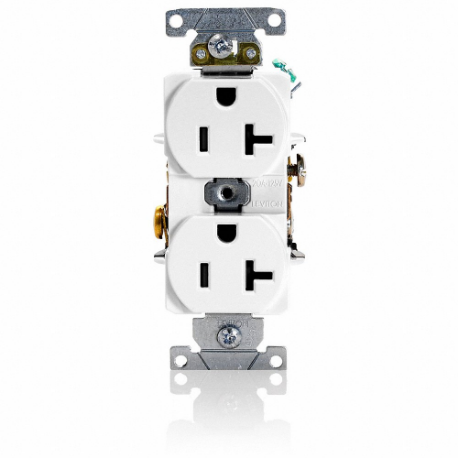

5362-SW | Duplex | Back, Side | White | - | White | NEMA WD-1 And NEMA WD-6 | 125V AC | Flush | €14.13 | |
 |

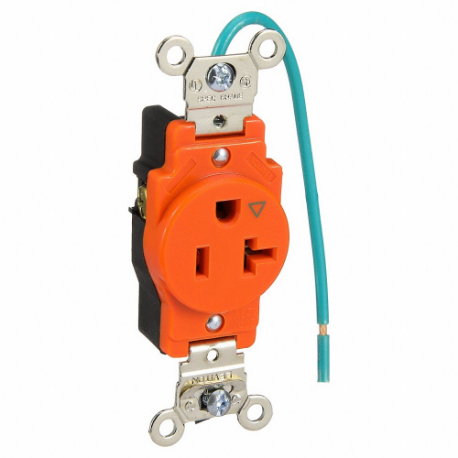

5361-IG | Single | Back, Side | Orange | - | Orange | NEMA WD-6 | 125V AC | Flush | €54.59 | |
 |

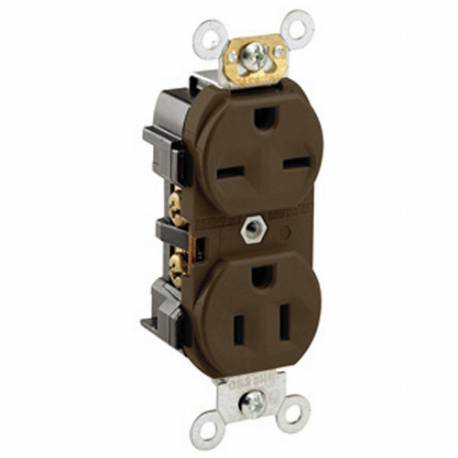

5292 | Duplex | Side | Brown | - | Brown | NEMA WD-6 | 125/250V AC | Flush | €57.28 |
