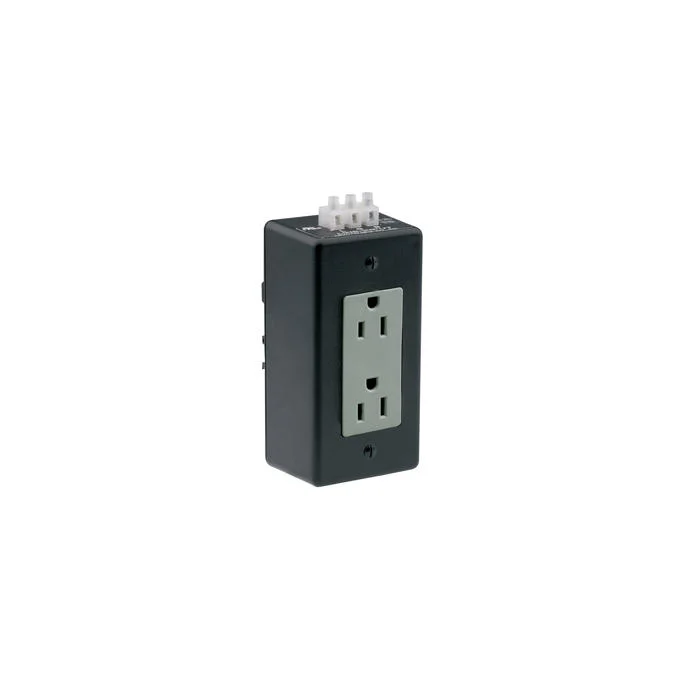

LEVITON 16252-DIN DIN Rail Duplex Heavy Duty Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Item: CR9GYUModel: 16252-DINCross Ref: 792T01
7 In Stock
Ships within 2 days via
5.00% off
€122.93 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | Gray |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Material | Thermoplastic Nylon |
| Face Plate Height | 2.6" |
| Face Plate Width | 1.6" |
| Features | Standard Duplex |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Gray |
| Housing Material | Thermoplastic |
| Included | Strap Material |
| Included Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-16252-din.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Standard Protection |
| Termination | Terminal Block |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Color | Voltage | Amps | Mounting Type | Housing Color | Wire Connection Location | No. Of Outlets | Face Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5279-CWP | Gray | 125V AC | 15A | Recessed | Gray | Back | 1 | Thermoplastic Glass Filled | €124.61 | |
 |
16262-I | Ivory | 125V AC | 15A | Flush | Ivory | Back, Side | 2 | Thermoplastic Nylon | €23.24 | |
 |
T5380-I | Ivory | 125V AC | 20A | Flush | Ivory | Back, Side | 2 | Nylon | €170.54 | |
 |
5362-SI | Ivory | 125V AC | 20A | Flush | Ivory | Back, Side | 2 | PBT | €11.77 | |
 |
5362-SW | White | 125V AC | 20A | Flush | White | Back, Side | 2 | PBT | €14.13 | |
 |
5361-IG | Orange | 125V AC | 20A | Flush | Orange | Back, Side | 1 | Thermoplastic Nylon | €54.59 | |
 |
5292 | Brown | 125/250V AC | 15A | Flush | Brown | Side | 2 | Thermoplastic Nylon | €57.28 |
