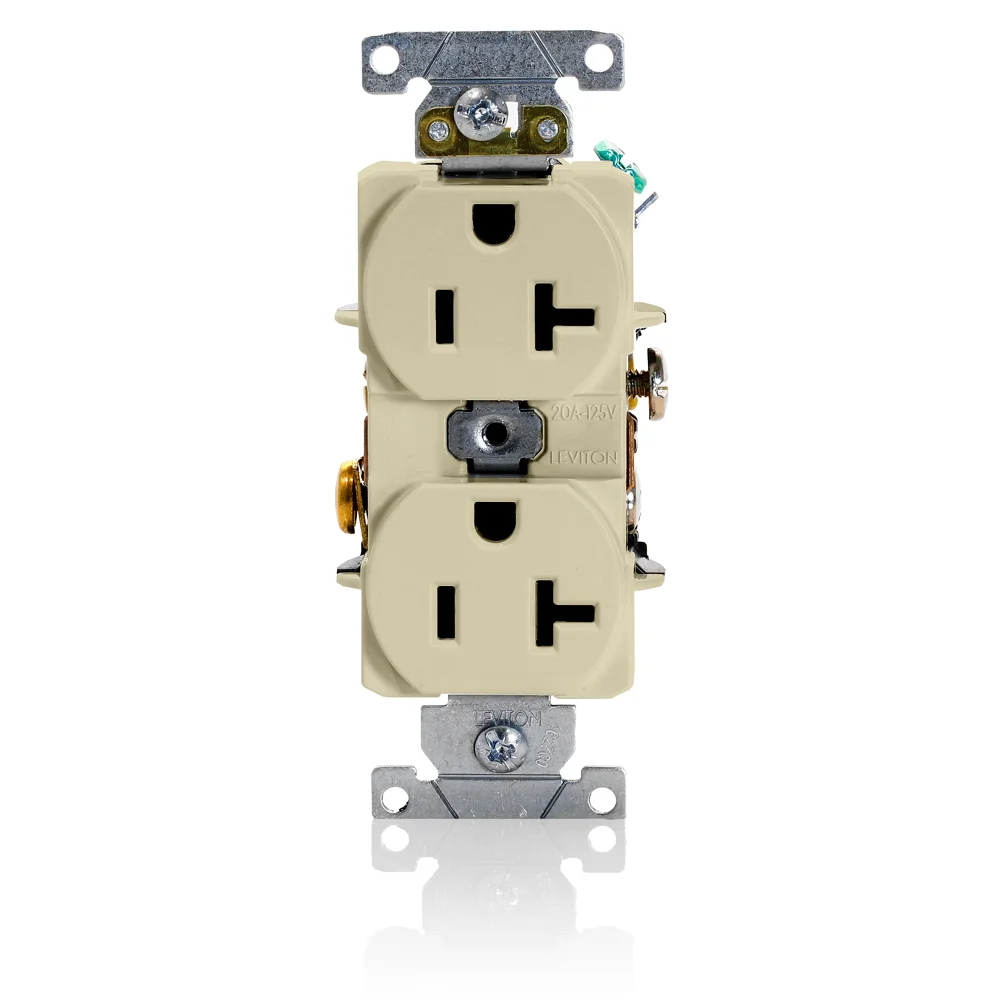

LEVITON 5362-SI Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Ivory, Screw Terminals, Std Protection | CR9HVH 792TT6

LEVITON 5362-SI Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Ivory, Screw Terminals, Std Protection

Item: CR9HVHModel: 5362-SICross Ref: 792TT6
7 In Stock

Ships within 2 days via

€11.77
10.00% off
€10.59 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Amps 20A
Body Material PBT
Color Ivory
Connection Orientation Straight
Contact Material Brass
Cover Type No Cover
Current Rating 20A
Depth 1.07"
Face Plate Height 2 4/5"
Face Plate Width 1.3"
Gfci No
Grade Federal Specification
Grounding Grounded
Housing Color Ivory
Housing Material PBT
Hp 1 hp
Includes Grounding Clip
Includes Mounting Hardware Yes
Max. Operating Temp. 60°C
Maximum Operating Temperature 140°F
Maximum Wire Size 10 AWG
Min. Operating Temp. -40°C
Min. Wire Size 14 AWG
Minimum Operating Temperature -40°F
Mount Hole Center-to-center Height 3.3"
Mounting Hardware Included Yes
Mounting Type Flush
Nema Enclosure Rating Not Rated
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Overall Depth 1.1"
Phase Single
Polarized Yes
Receptacle Type Duplex
Signal & Power Protection Standard Protection
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nom 057 Certified, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13399
Ul 94 Flammability Rating V-2
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminals

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)10.31
Ship length (cm)48.26
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelReceptacle TypeCurrent RatingVoltage RatingWire Connection LocationHousing ColorSurge ProtectionColorNema RatingPrice
LEVITON 16252-DIN Din Rail Receptacle, Decorator Duplex, 5-15R, 125VAC, 15 A, 2 Poles, Gray | CR9GYU 792T01 16252-DINDecorator Duplex15A125V ACBackGray-GrayNEMA 5-15R€129.40
LEVITON 5279-CWP Flanged Receptacle, Single, 5-15R, 125 VAC, 15 A, 2 Poles, Gray, Screw Terminals | CR9GYX 792TM9 5279-CWPSingle15A125V ACBackGrayNoGrayNEMA WD-6€124.61
LEVITON 16262-I Receptacle, Decorator Duplex, 5-15R, 125V AC, 15 A, 2 Poles, Ivory, Screw Terminals | CR9HQC 792T06 16262-IDecorator Duplex15A125V ACBack, SideIvory-IvoryNEMA WD-6€23.24
LEVITON T5380-I Receptacle, Decorator Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Ivory, Screw Terminals | CR9HQY 792UR5 T5380-IDecorator Duplex20A125V ACBack, SideIvoryYesIvoryNEMA WD-6€170.54
LEVITON 5362-SW Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, White, Screw Terminals, Std Protection | CR9HVP 792TT7 5362-SWDuplex20A125V ACBack, SideWhite-WhiteNEMA WD-1 And NEMA WD-6€14.13
LEVITON 5361-IG Receptacle, Single, 5-20R, 125V AC, 20 A, 2 Poles, Orange, Screw Terminals | CR9HZK 792TR1 5361-IGSingle20A125V ACBack, SideOrange-OrangeNEMA WD-6€54.59
LEVITON 5292 Receptacle, Duplex, 5-15R/6-15R, 125/250V AC, 15 A, 2 Poles, Brown, Screw Terminals | CR9JCE 792TN2 5292Duplex15A125/250V ACSideBrown-BrownNEMA WD-6€57.28
