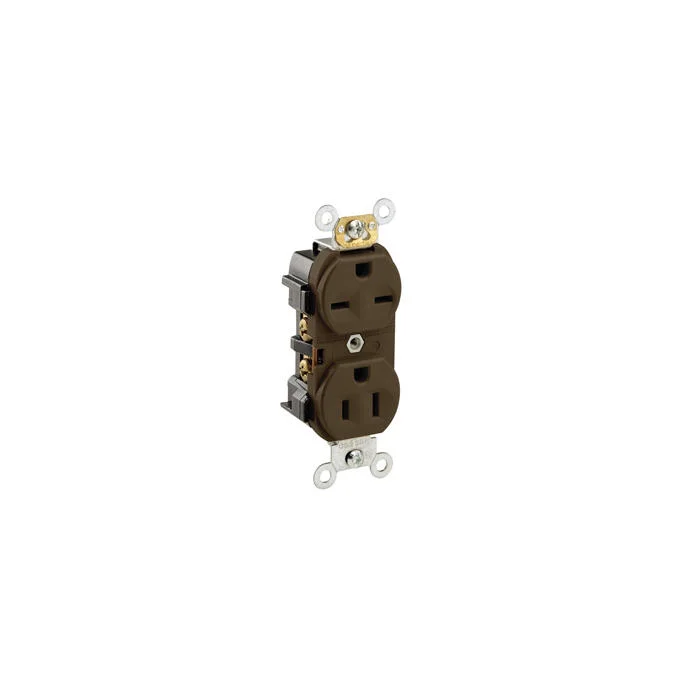

LEVITON 5292 Dual Voltage Duplex Heavy Duty Self-Grounding Straight Blade Receptacle, 125/250 VAC, 15 A, 2 Poles, 3 Wires, Brown
Item: CR9JCEModel: 5292Cross Ref: 792TN2
7 In Stock
Ships within 2 days via
5.00% off
€54.42 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp 125V, 1 1/2 hp 250V |
| Amps | 15A |
| Body Material | Thermoplastic , Thermoplastic Nylon |
| Color | Brown |
| Connection Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Depth | 1 3/25" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic Nylon |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.6" |
| Features | Dual Voltage, Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Federal Specification , Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Brown |
| Hp | 1 1/2 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Phosphor Bronze |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R, NEMA 6-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Signal & Power Protection | Standard Protection |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Finish | Galvanized |
| Strap Material | Steel With Riveted Ground Contacts |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Brass |
| Termination | Side Wire |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125/250V AC |
| Voltage Rating | 125/250V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.94 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Current Rating | Voltage Rating | Wire Connection Location | Housing Color | Surge Protection | Color | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16252-DIN | Decorator Duplex | 15A | 125V AC | Back | Gray | - | Gray | NEMA 5-15R | €129.40 | |
 |

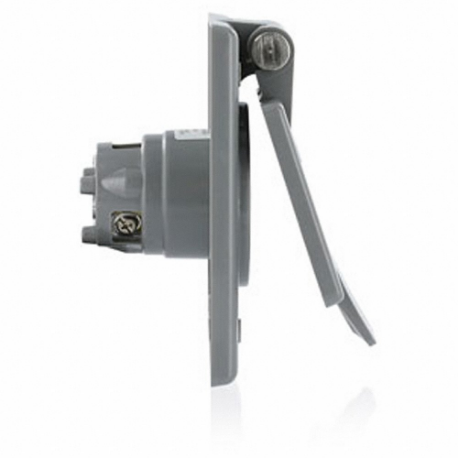

5279-CWP | Single | 15A | 125V AC | Back | Gray | No | Gray | NEMA WD-6 | €124.61 | |
 |
16262-I | Decorator Duplex | 15A | 125V AC | Back, Side | Ivory | - | Ivory | NEMA WD-6 | €23.24 | |
 |
T5380-I | Decorator Duplex | 20A | 125V AC | Back, Side | Ivory | Yes | Ivory | NEMA WD-6 | €170.54 | |
 |
5362-SI | Duplex | 20A | 125V AC | Back, Side | Ivory | - | Ivory | NEMA WD-1 And NEMA WD-6 | €11.77 | |
 |
5362-SW | Duplex | 20A | 125V AC | Back, Side | White | - | White | NEMA WD-1 And NEMA WD-6 | €14.13 | |
 |
5361-IG | Single | 20A | 125V AC | Back, Side | Orange | - | Orange | NEMA WD-6 | €54.59 |
