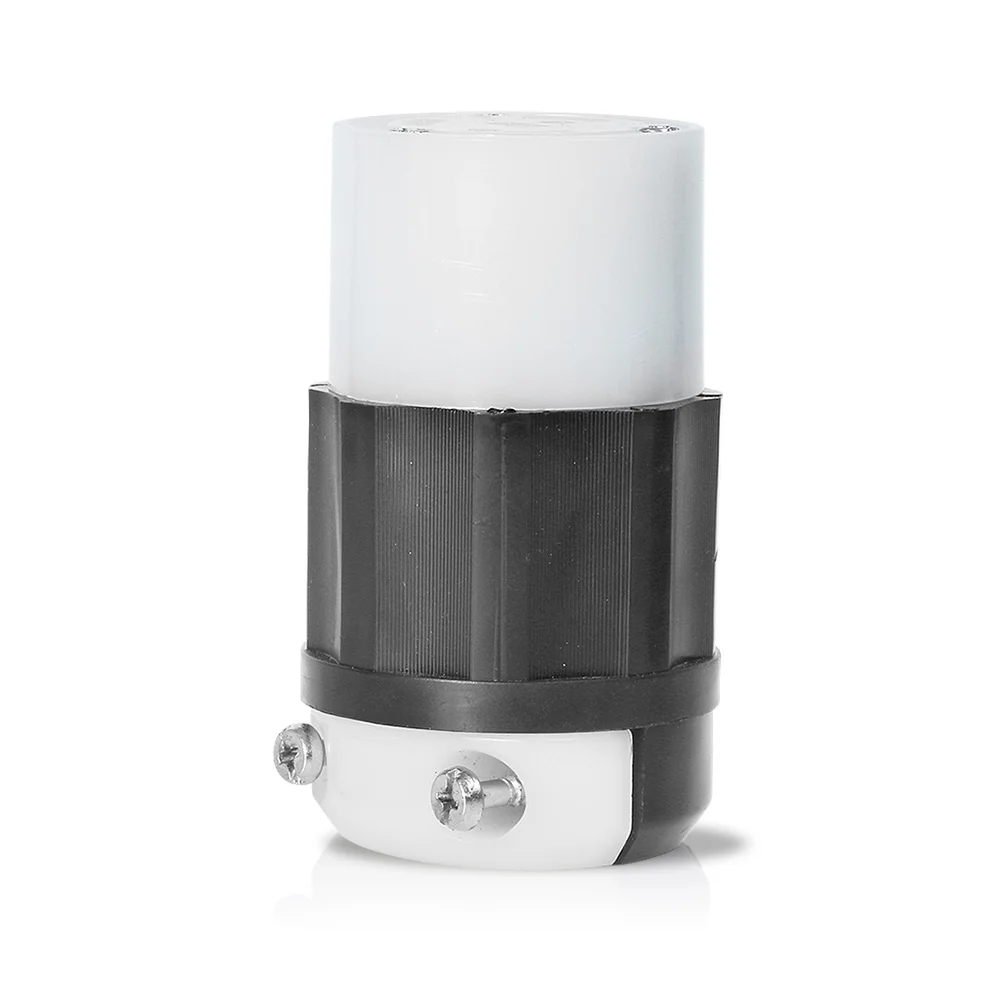

LEVITON 4779-C Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Item: CR9HCFModel: 4779-CCross Ref: 792TH4
7 In Stock
Ships within 2 days via
5.00% off
€53.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Clamp Insert Material | Nylon |
| Color | Black And White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cord Range | 0.23" to 0.685" |
| Cord-clamp | Nylon |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 15A |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1.39" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.685" |
| For Minimum Cable Diameter | 0.23" |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp | 2 hp |
| Hp Rating | 2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L7-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1.53" |
| Overall Length | 2.76" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Torque Range | 10 lbs.-in. to 14 lbs.-in. |
| Ul 94 Flammability Rating | HB |
| Voltage | 277V AC |
| Voltage Rating | 277V AC |
| Wire Gauge | 18 AWG to 10 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 23.81 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Wires | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2713-B | Straight | 3 | 4 | Black | - | - | - | Federal | €88.37 | |
 |
2423 | Straight | 3 | 4 | Black | 20A | 250V AC | Three | Federal Specification | €92.63 | |
 |
4729-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €57.25 | |
 |
4729-CY | Straight | 2 | 3 | White, Yellow | 15A | 125V AC | Single | Federal Specification | €41.64 | |
|
2613-B | Straight | 2 | 3 | Black | - | - | - | Federal | €68.57 | |
 |
2613-PLC | Straight | 2 | 3 | Black, White | 30A | 125V AC | Single | Federal Specification | €282.90 | |
 |
2613-CY | Straight | 2 | 3 | White, Yellow | 30A | 125V AC | Single | Federal Specification | €103.51 |
