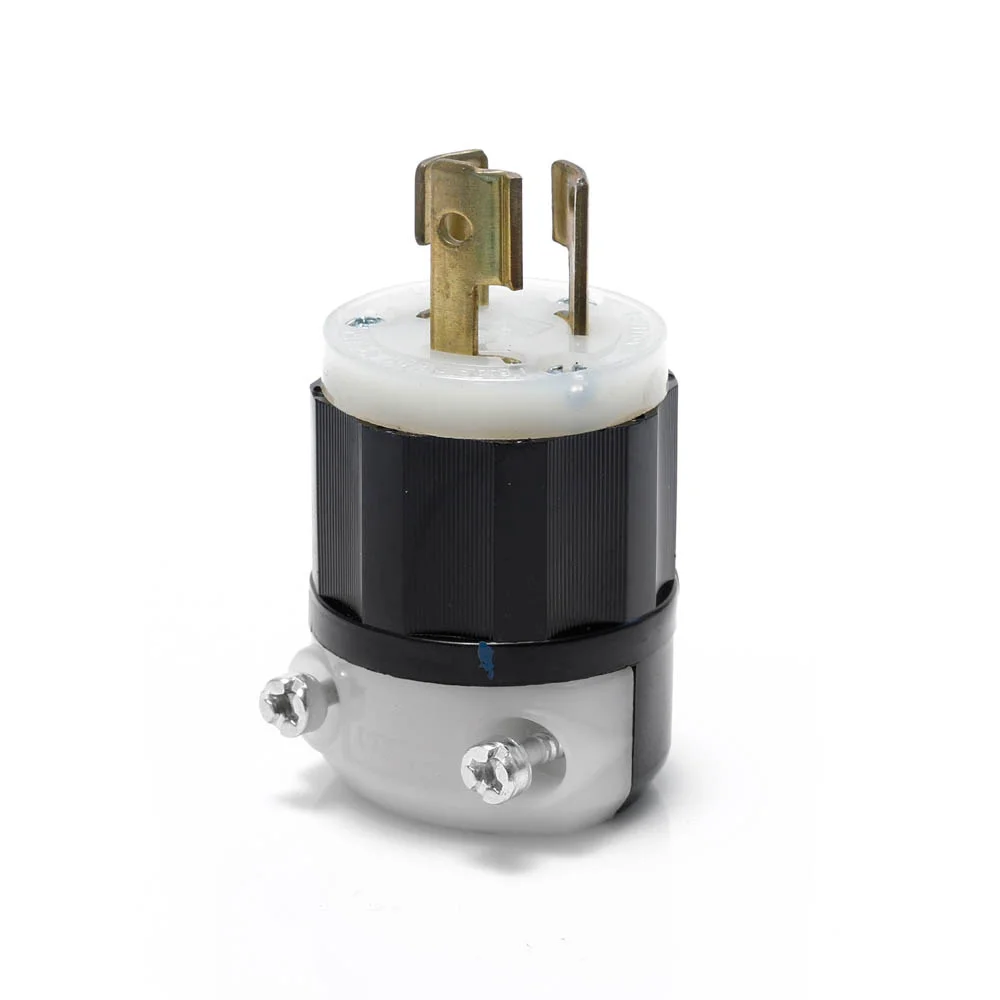

LEVITON 4570-C Locking Plug, L6-15P, 250V AC, 15 A, 2 Poles, Black/White, Screw Terminals, L6-15 | CR9HDN 792TG8

LEVITON 4570-C Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Item: CR9HDNModel: 4570-CCross Ref: 792TG8
7 In Stock

Ships within 2 days via

€33.06
5.00% off
€31.40 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Plug
Amps 15A
Amps Interrupting Certified For Current Interrupting At Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Back Cover Thermoplastic
Blade Material Brass
Blades/contacts Solid Brass
Body Length 1.98"
Body Material Nylon
Clamp Insert Material Nylon
Color Black And White
Connection Orientation Straight
Cord Range 0.23" to 0.685"
Cord-clamp Nylon
Dielectric Voltage Withstands 2000V Per UL498
Environment Dry
Face Dia. 1.39"
Flammability Rated HB Or Better UL94
For Environment Dry
For Max. Cable Dia. 0.685"
For Min. Cable Dia. 0.23"
Grade Federal Specification
Grounding Grounded , Grounding
Housing Color Black, White
Housing Material Nylon
Hp 1 1/2 hp
Ip Rating Not Rated
Length 2 19/25"
Market Industrial
Max. Operating Temp. 60°C
Max. Wire Size 10 AWG
Midget Locking No
Min. Operating Temp. -40°C
Min. Wire Size 18 AWG
Nema Plug Configuration L6-15P
Nema Rating NEMA WD-6
No. Of Blades 3
No. Of Poles 2
No. Of Wires 3
Operating Temp. -40°C to +60°C
Outside Dia. 1.53"
Overall Length 2.76"
Phase 1
Polarized Yes
Product Datasheet leviton-5410-w.pdf
Resistance Properties Chemical Resistant, Impact Resistant, UV, Sunlight Resistant
Shrouded No
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Terminal Screws Brass
Torque 10 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating HB
Voltage 250V AC
Wire Connection Type Screw Terminal
Wire Gauge 18 AWG to 10 AWG
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.81
Ship height (cm)22.86
Ship length (cm)23.81
Ship width (cm)3.89
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelConnection OrientationHousing ColorPhaseFace Dia.GradeNema Plug ConfigurationMax. Wire SizeMin. Wire SizePrice
LEVITON 4880-C Locking Plug, L11-15P, 250V AC, 15 A, 3 Poles, Black/White, Screw Terminals | CR9HDF 792TH5 4880-CStraightBlack, White31.39"General UseL11-15P10 AWG18 AWG€73.86
LEVITON 2741 Locking Plug, L17-30P, 600V AC, 30 A, 3 Poles, Black/White, Screw Terminals, L17-30 | CR9HDH 792TA6 2741StraightBlack, White31.97"Federal SpecificationL17-30P8 AWG14 AWG€81.37
LEVITON 7102-C Locking Plug, L2-20P, 250V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L2-20 | CR9HDJ 792TX6 7102-CStraightBlack, White11.39"Federal SpecificationL2-20P10 AWG18 AWG€36.84
LEVITON 4720-C Locking Plug, L5-15P, 125V AC, 15 A, 2 Poles, Black/White, Screw Terminals, L5-15 | CR9HDK 792TH0 4720-CStraightBlack, White11.39"Federal SpecificationL5-15P10 AWG18 AWG€29.56
LEVITON 2311-PLC Locking Plug, L5-20P, 125V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L5-20 | CR9HDM 792T40 2311-PLCStraightBlack, White-1 21/25"FederalL5-20P10 AWG16 AWG€59.06
LEVITON 2341 Locking Plug, L8-20P, 480V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L8-20 | CR9HDQ 792T48 2341StraightBlack, White11 21/25"Federal SpecificationL8-20P10 AWG16 AWG€50.39

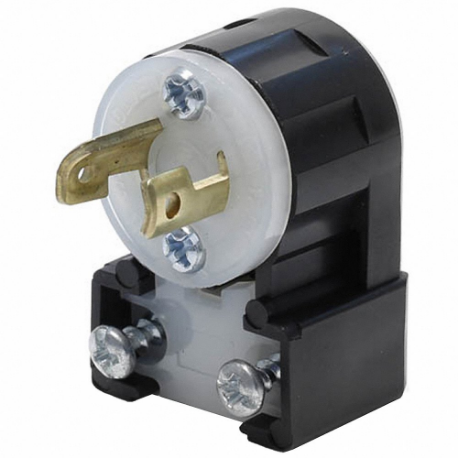

LEVITON ML1-AP Locking Plug, ML1-15P, 125V AC, 15 A, 2 Poles, Black/White, Screw Terminals | CR9HDR 792UN1 ML1-APAngledBlack, White11.03"Federal SpecificationML1-15P14 AWG18 AWG€42.48
