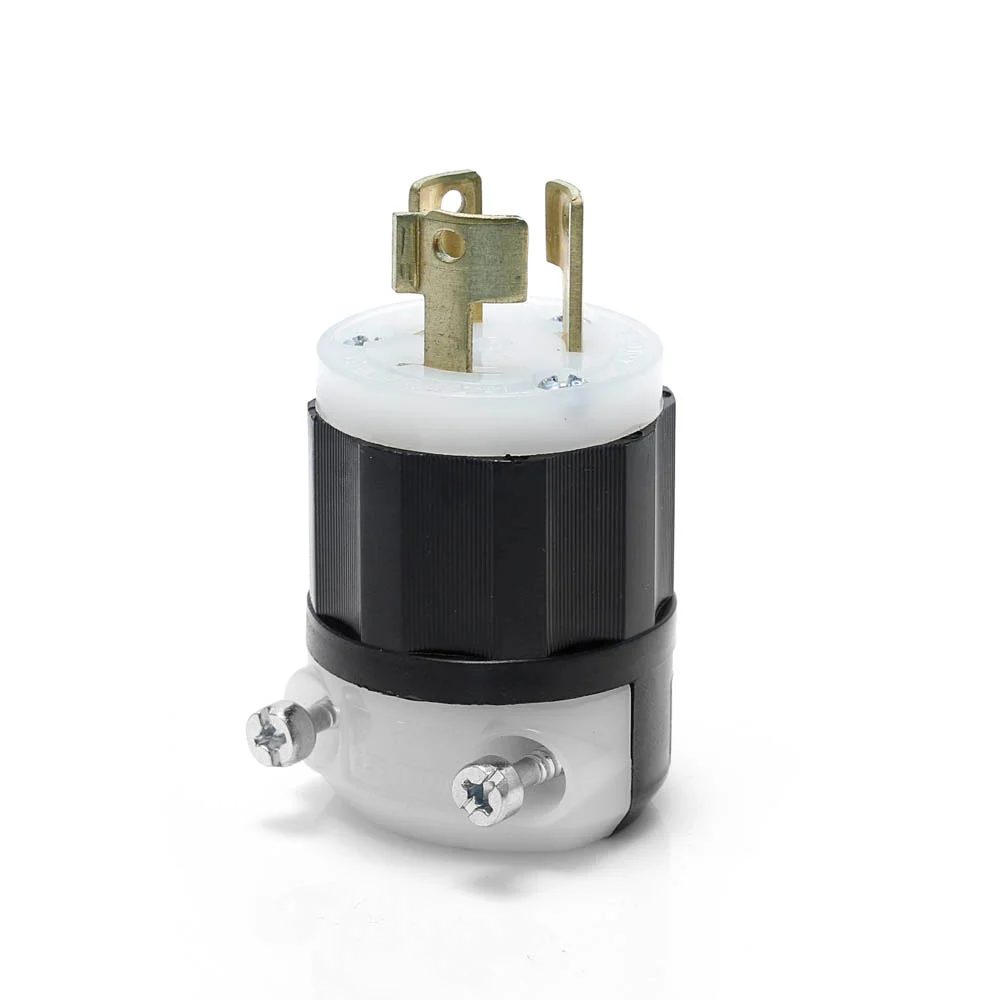

LEVITON 4880-C Non-Grounding Cable Mount Locking Plug, 3-Phase, 250 VAC, 15 A, 3 Poles, 3 Wires, Black/White
Item: CR9HDFModel: 4880-CCross Ref: 792TH5
7 In Stock
Ships within 2 days via
5.00% off
€70.17 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Length | 1.98" |
| Body Material | Nylon |
| Color | Black And White |
| Connection Orientation | Straight |
| Cord Range | 0.24" to 0.7" |
| Environment | Dry |
| Face Dia. | 1.39" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Max. Cable Dia. | 0.7" |
| Grade | General Use |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp | 2 hp |
| Ip Rating | Not Rated |
| Market | Industrial |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | L11-15P |
| Nema Rating | NEMA L11-15P |
| No. Of Blades | 3 |
| No. Of Phase | 3 |
| No. Of Poles | 3 |
| No. Of Wire | 3 |
| Outside Dia. | 1.53" |
| Phase | 3.0 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminal |
| Wire Gauge | 18 AWG to 10 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 23.81 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Housing Color | Phase | Face Dia. | Grade | Nema Plug Configuration | Max. Wire Size | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2741 | Straight | Black, White | 3 | 1.97" | Federal Specification | L17-30P | 8 AWG | 14 AWG | €81.37 | |
 |
7102-C | Straight | Black, White | 1 | 1.39" | Federal Specification | L2-20P | 10 AWG | 18 AWG | €36.84 | |
 |
4720-C | Straight | Black, White | 1 | 1.39" | Federal Specification | L5-15P | 10 AWG | 18 AWG | €29.56 | |
 |
2311-PLC | Straight | Black, White | - | 1 21/25" | Federal | L5-20P | 10 AWG | 16 AWG | €59.06 | |
 |
4570-C | Straight | Black, White | 1 | 1.39" | Federal Specification | L6-15P | 10 AWG | 18 AWG | €33.06 | |
 |
2341 | Straight | Black, White | 1 | 1 21/25" | Federal Specification | L8-20P | 10 AWG | 16 AWG | €50.39 | |
 |
ML1-AP | Angled | Black, White | 1 | 1.03" | Federal Specification | ML1-15P | 14 AWG | 18 AWG | €42.48 |
