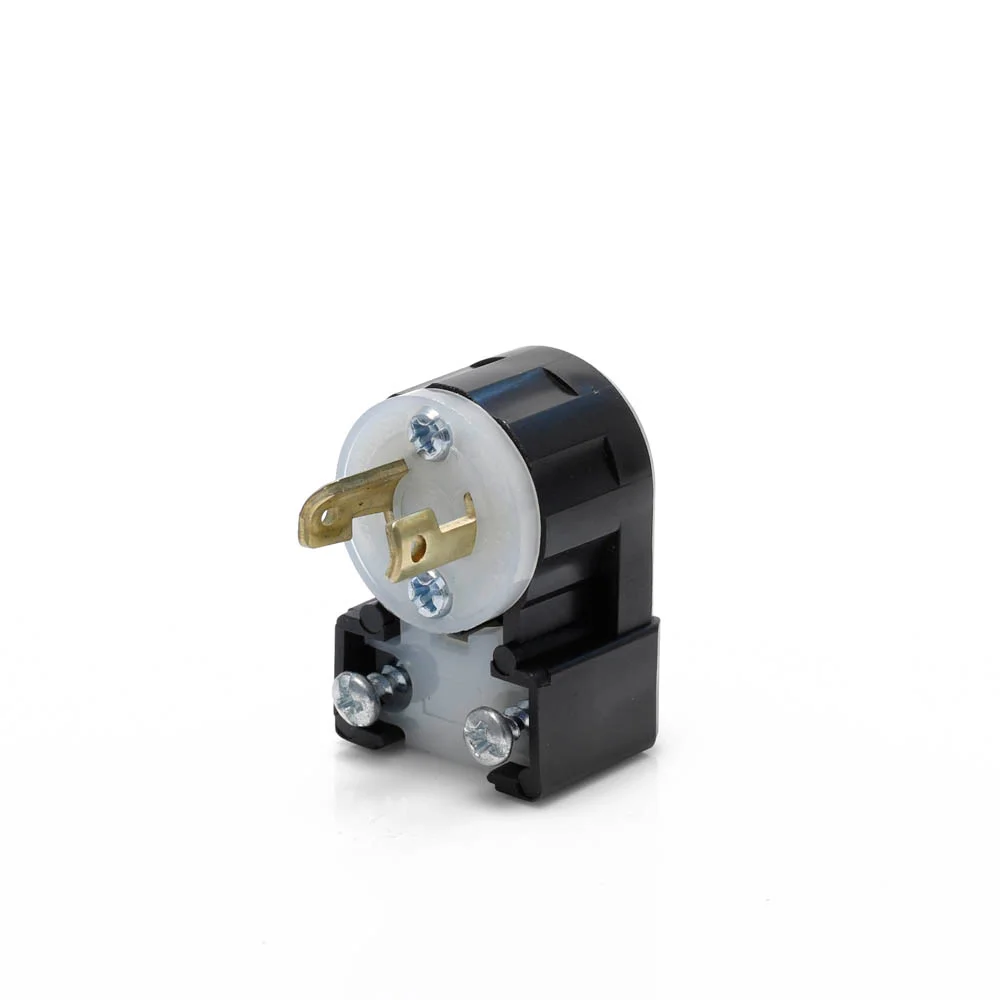

LEVITON ML1-AP Angled Cable Mount Non-Grounding Locking Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Black/White
Item: CR9HDRModel: ML1-APCross Ref: 792UN1
7 In Stock
Ships within 2 days via
5.00% off
€40.35 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Clamp Insert Material | Nylon |
| Color | Black And White |
| Connection Orientation | Angled |
| Cord Range | 0.218" to 0.43" |
| Cord-clamp | Nylon |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 15A |
| Device Type | Locking Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1.03" |
| Features | Angled |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.43" |
| For Minimum Cable Diameter | 0.218" |
| Grade | Federal Specification |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | Not Rated |
| Market | Industrial |
| Max. Wire Size | 14 AWG |
| Maximum Operating Temperature | 60°C |
| Midget Locking | Yes |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | ML1-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 2 |
| Number Of Blades | 2 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C At 250 Cycles Ol At 200 Pct Rated Current |
| Terminal Accom. | 18 AWG to 14 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Gauge | 18 AWG to 14 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 16.83 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 2.82 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4880-C | Straight | 3 | 3 | Black, White | 15A | 250V AC | 3.0 | General Use | €73.86 | |
 |
2741 | Straight | 3 | 4 | Black, White | 30A | 600V AC | 3.0 | Federal Specification | €81.37 | |
 |
7102-C | Straight | 2 | 2 | Black, White | 20A | 250V AC | Single | Federal Specification | €36.84 | |
 |
4720-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €29.56 | |
 |
2311-PLC | Straight | 2 | 3 | Black, White | - | - | - | Federal | €59.06 | |
 |
4570-C | Straight | 2 | 3 | Black, White | 15A | 250V AC | Single | Federal Specification | €33.06 | |
 |
2341 | Straight | 2 | 3 | Black, White | 20A | 480V AC | Single | Federal Specification | €50.39 |
