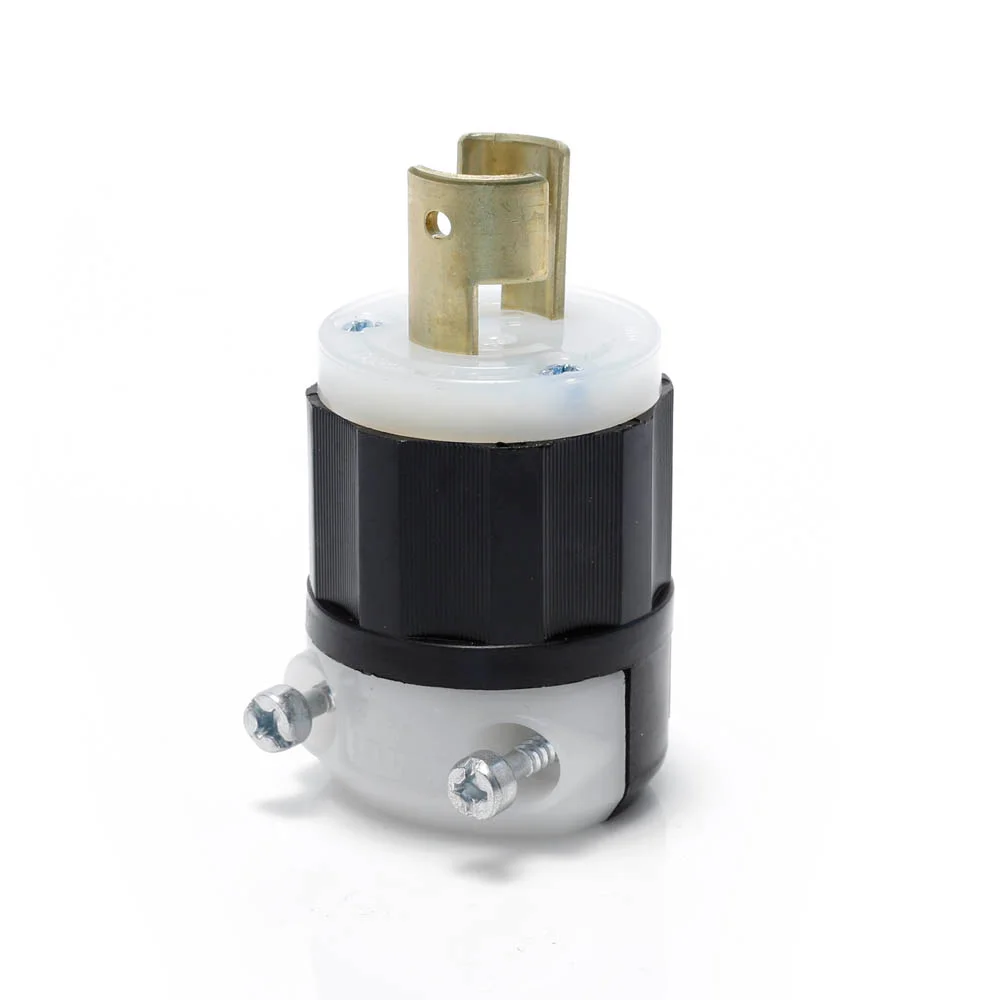

LEVITON 7102-C Locking Plug, L2-20P, 250V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L2-20
Item: CR9HDJModel: 7102-CCross Ref: 792TX6
7 In Stock
Ships within 2 days via
10.00% off
€33.16 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 20A |
| Blade Material | Brass |
| Body Length | 1.98" |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Environment | Dry |
| Face Dia. | 1.39" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.7" |
| For Minimum Cable Diameter | 0.245" |
| Grade | Federal Specification |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp Rating | 2 hp |
| Ip Rating | Not Rated |
| Length | 2.71" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | L2-20P |
| No. Of Wires | 2 |
| Number Of Blades | 2 |
| Number Of Poles | 2 |
| Outside Dia. | 1.53" |
| Overall Length | 2.71" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 6.88 |
| Ship length (cm) | 3.89 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4880-C | Straight | 3 | 3 | Black, White | 15A | 250V AC | 3.0 | General Use | €73.86 | |
 |
2741 | Straight | 3 | 4 | Black, White | 30A | 600V AC | 3.0 | Federal Specification | €81.37 | |
 |
4720-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €29.56 | |
 |
2311-PLC | Straight | 2 | 3 | Black, White | - | - | - | Federal | €59.06 | |
 |
4570-C | Straight | 2 | 3 | Black, White | 15A | 250V AC | Single | Federal Specification | €33.06 | |
 |
2341 | Straight | 2 | 3 | Black, White | 20A | 480V AC | Single | Federal Specification | €50.39 | |
 |
ML1-AP | Angled | 2 | 2 | Black, White | 15A | 125V AC | Single | Federal Specification | €42.48 |
