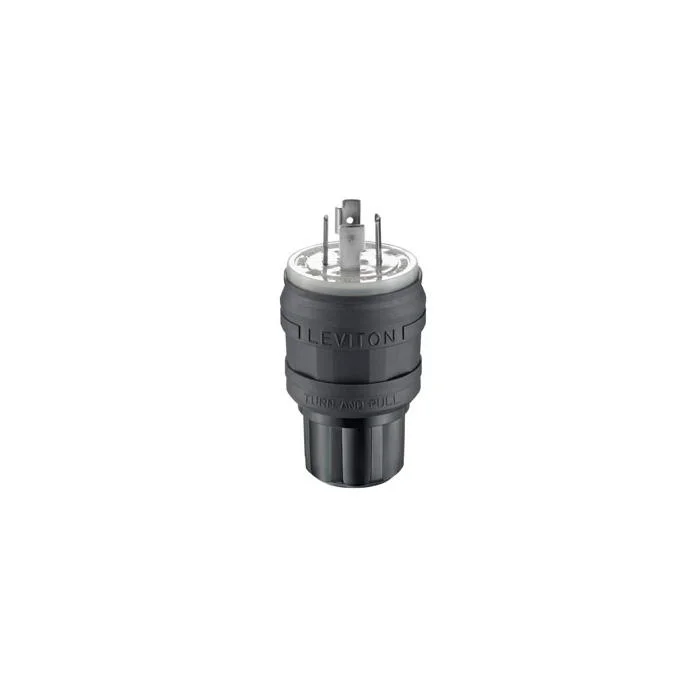

LEVITON 26W75-B Grounding Watertight Cable Mount Locking Plug, 3-Phase, 250 VAC, 20 A, 3 Poles, 4 Wires, Black
Get it by Wednesday, Jul 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€61.42 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Locking Plug |
| Amps | 20A |
| Amps Limiting | Full Rated Current |
| Assembly Screws Material | Stainless Steel |
| Blade Material | Nickel Plated Brass |
| Blades/contacts | Electroless Nickel Coated Brass |
| Body Interior | Nylon |
| Body Material | Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Color | Black |
| Compression Nut Strain Relief | Nylon |
| Connection Orientation | Straight |
| Cord Grip | 0.375" to 0.875" |
| Device Type | Locking Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 2.06" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Washdown |
| For Max. Cable Dia. | 7/8" |
| For Min. Cable Dia. | 3/8" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Hp | 3 hp |
| Ip Rating | IP66, IP67, IP69K |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Plug Configuration | L15-20P |
| Nema Rating | NEMA WD-6 |
| No. Of Blades | 4 |
| No. Of Phase | 3 |
| No. Of Poles | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | 3.0 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | #16 to #10 |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Torque | 12 lbs.-in. to 14 lbs.-in. |
| Voltage | 250V AC |
| Wire | 4 |
| Wire Connection Type | Screw Terminal |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 29.21 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Ip Rating | Face Dia. | Max. Wire Size | Min. Wire Size | Grounding | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24W04 | 1 | Yellow | IP66, IP67, IP69K | 1 1/2" | 10 AWG | 18 AWG | Non Grounded | Santoprene TPV | €53.06 | |
 |
24W47 | 1 | Yellow | IP66, IP67, IP69K | 1 1/2" | 10 AWG | 18 AWG | Grounded | EPTR Rubber | €49.60 | |
 |
24W34 | 1 | Yellow | IP66, IP67, IP69K | 1 1/2" | 10 AWG | 18 AWG | Grounded | EPTR Rubber | €73.92 | |
 |
26W81 | 3 | Yellow | IP66, IP67, IP69K | 2.06" | 10 AWG | 16 AWG | Grounded | Rubber | €175.37 | |
 |
28W81 | 3 | Yellow | IP66, IP67, IP69K | 2.28" | 8 AWG | 12 AWG | Grounded | Rubber | €204.76 | |
 |
26W07 | 1 | Yellow | IP66, IP67, IP69K | 1 1/2" | 10 AWG | 16 AWG | Non Grounded | Santoprene TPV | €64.15 | |
 |
26W82 | 3 | Yellow | IP66, IP67, IP69K | 2.31" | 10 AWG | 16 AWG | Grounded | Rubber | €195.46 |
