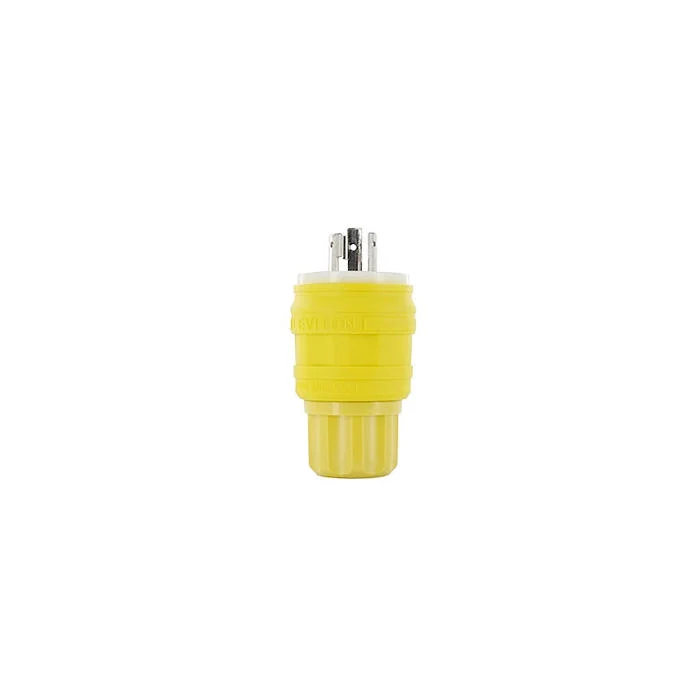

LEVITON 24W34 Locking Plug, L7-15P, 15 A, 277V AC, Yellow, 2 Poles | CR9HDP 792T61

LEVITON 24W34 Grounding Watertight Cable Mount Locking Plug, 1 Phase, 277 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Item: CR9HDPModel: 24W34Cross Ref: 792T61
7 In Stock

Ships within 2 days via

€73.92
5.00% off
€70.23 /unit
This product can only be shipped in multiples of 20
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Plug
Amps 15A
Assembly Screws Grade Grade 300
Assembly Screws Material Stainless Steel
Blade Material Nickel Plated Brass
Blades/contacts Nickel Plated Brass
Body Interior Nylon
Body Length 3.49"
Body Material EPTR Rubber
Bushing Material Santoprene TPV
Color Yellow
Compression Nut, Strain Relief Nylon
Connection Orientation Straight
Cord Grip Range 0.234" to 0.687"
Current Limiting Full Rated Current
Current Rating 15A
Device Type Locking Plug
Dielectric Voltage Withstands 2000V Per UL498
Environment Wet
Face Dia. 1 1/2"
Face Diameter 1.5"
Flammability Rated V-2 Per UL 94
For Environment Washdown
For Maximum Cable Diameter 0.687"
For Minimum Cable Diameter 0.234"
Grade General Use
Grounding Grounded , Grounding
Housing Color Yellow
Hp Rating 2 hp
Ip Rating IP66, IP67, IP69K
Length 3.49"
Market Industrial
Max. Operating Temp. 60°C
Max. Wire Size 10 AWG
Midget Locking No
Min. Operating Temp. -40°C
Min. Wire Size 18 AWG
Nema Plug Configuration L7-15P
Nema Rating NEMA WD-6
No. Of Wires 3
Number Of Blades 3
Number Of Poles 2
Operating Temp. -40°C to +60°C
Outside Dia. 1 7/25"
Outside Diameter 1.28"
Overall Length 3.49"
Phase Single
Polarized Yes
Product Datasheet leviton-5410-w.pdf
Resistance Properties Watertight
Shrouded No
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Electroless Nickel Coated
Terminal Screws Material Brass
Ul 94 Flammability Rating V-2
Voltage 277V AC
Voltage Rating 277V AC
Wire Connection Type Screw Terminals
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)31.12
Ship length (cm)40.01
Ship width (cm)22.86
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelPhaseNumber Of PolesHousing ColorIp RatingCurrent RatingVoltage RatingNumber Of BladesFor Maximum Cable DiameterPrice
LEVITON 24W04 Locking Plug, L1-15P, 15 A, 125V AC, Yellow, 2 Poles | CR9HDG 792T59 24W04Single2YellowIP66, IP67, IP69K15A125V AC20.687"€53.06
LEVITON 24W47 Locking Plug, L5-15P, 15 A, 125V AC, Yellow, 2 Poles | CR9HDL 792T62 24W47Single2YellowIP66, IP67, IP69K15A125V AC30.655"€49.60
LEVITON 26W75-B WatertigHeight Locking Plug, L15-20P, 20 A, 250VAC, Black, 3 Poles, Screw Terminals | CR9HKR 792T97 26W75-B3.03BlackIP66, IP67, IP69K--47/8"€73.89
LEVITON 26W81 WatertigHeight Locking Plug, L21-20P, 20 A, 120/208VAC, Yellow, 5 Poles | CR9HKT 792T94 26W813.05YellowIP66, IP67, IP69K20A120/208V AC-7/8"€175.37
LEVITON 28W81 WatertigHeight Locking Plug, L21-30P, 30 A, 120/208VAC, Yellow, 4 Poles, Screw Terminals | CR9HKU 792TE7 28W813.04YellowIP66, IP67, IP69K30A120/208V AC51 1/8"€204.76
LEVITON 26W07 WatertigHeight Locking Plug, L2-20P, 20 A, 250VAC, Yellow, 2 Poles | CR9HKV 792T83 26W07Single2YellowIP66, IP67, IP69K20A250V AC27/8"€64.15

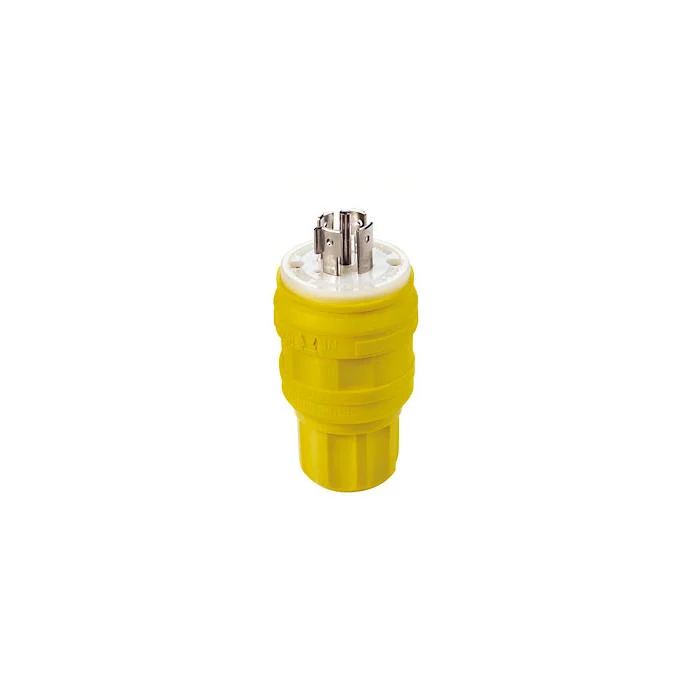

LEVITON 26W82 WatertigHeight Locking Plug, L22-20P, 20 A, 277/480VAC, Yellow, 4 Poles, Screw Terminals | CR9HKW 792T95 26W823.04YellowIP66, IP67, IP69K20A277/480V AC57/8"€195.46
