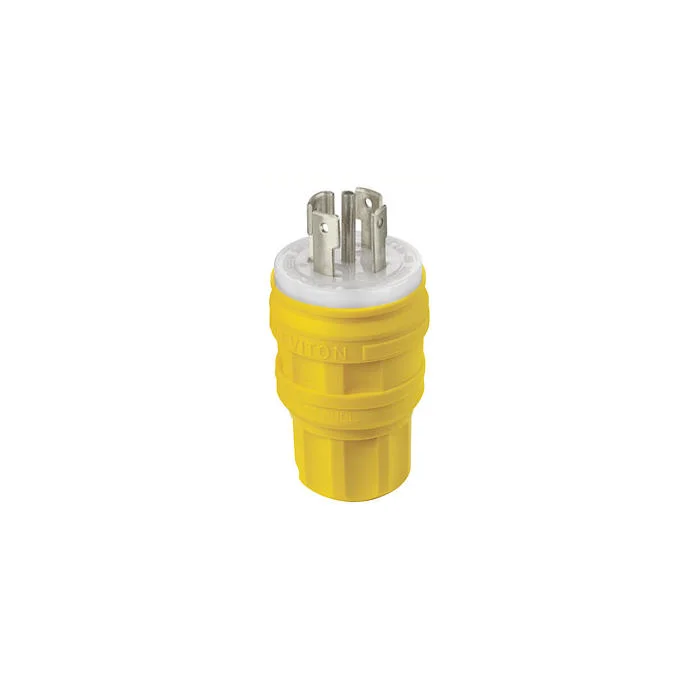

LEVITON 28W81 Watertight Locking Plug, L21-30P, 30 A, 120/208VAC, Yellow, 4 Poles, Screw Terminals
Item: CR9HKUModel: 28W81Cross Ref: 792TE7
7 In Stock
Ships within 2 days via
10.00% off
€184.29 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 30A |
| Blade Material | Nickel Plated Brass |
| Body Length | 3.62" |
| Body Material | Rubber |
| Color | Yellow |
| Connection Orientation | Straight |
| Current Rating | 30A |
| Environment | Wet |
| Face Diameter | 2.28" |
| For Environment | Washdown |
| For Maximum Cable Diameter | 1 1/8" |
| For Minimum Cable Diameter | 5/8" |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Yellow |
| Hp Rating | 3 hp |
| Ip Rating | IP66, IP67, IP69K |
| Length | 4 3/5" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 12 AWG |
| Nema Plug Configuration | L21-30P |
| No. Of Phase | 3 |
| Number Of Blades | 5 |
| Number Of Poles | 4 |
| Outside Dia. | 2.53" |
| Overall Length | 4.6" |
| Phase | 3.0 |
| Polarized | Yes |
| Resistance Properties | Watertight |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 120/208V AC |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 9.17 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Phase | Number Of Poles | Housing Color | Ip Rating | Current Rating | Voltage Rating | Number Of Blades | For Maximum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
24W04 | Single | 2 | Yellow | IP66, IP67, IP69K | 15A | 125V AC | 2 | 0.687" | €53.06 | |
 |

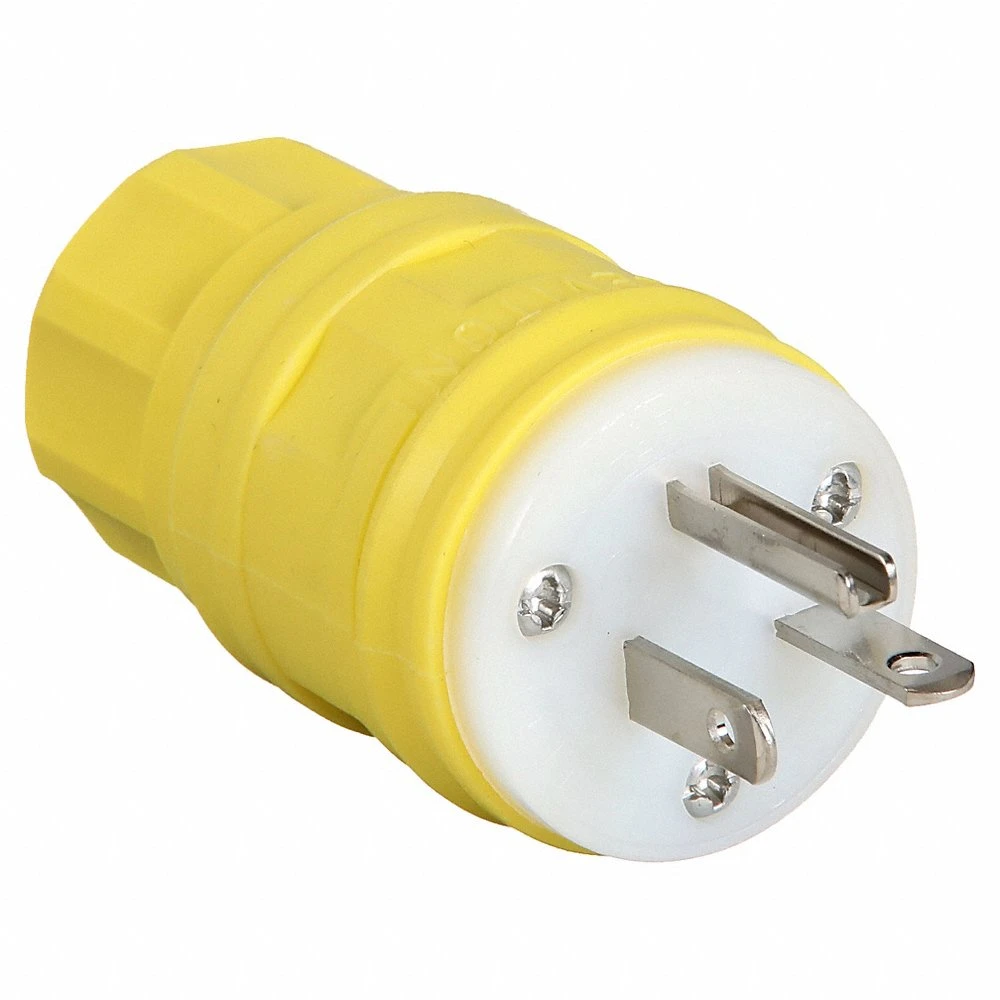

24W47 | Single | 2 | Yellow | IP66, IP67, IP69K | 15A | 125V AC | 3 | 0.655" | €49.60 | |
|
24W34 | Single | 2 | Yellow | IP66, IP67, IP69K | 15A | 277V AC | 3 | 0.687" | €73.92 | |
 |
26W75-B | 3.0 | 3 | Black | IP66, IP67, IP69K | - | - | 4 | 7/8" | €73.89 | |
 |

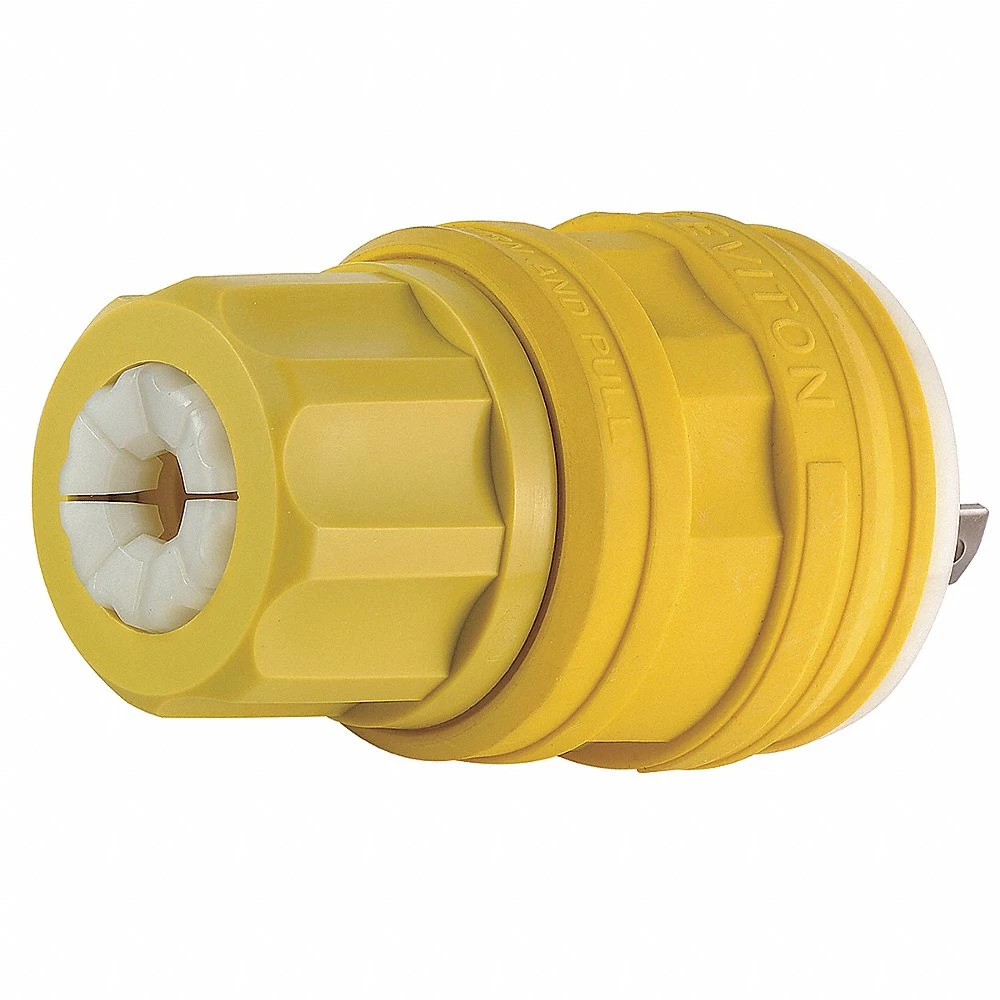

26W81 | 3.0 | 5 | Yellow | IP66, IP67, IP69K | 20A | 120/208V AC | - | 7/8" | €175.37 | |
|
26W07 | Single | 2 | Yellow | IP66, IP67, IP69K | 20A | 250V AC | 2 | 7/8" | €64.15 | |
 |

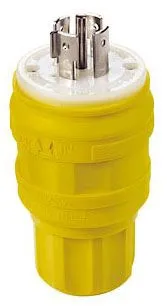

26W82 | 3.0 | 4 | Yellow | IP66, IP67, IP69K | 20A | 277/480V AC | 5 | 7/8" | €195.46 |
