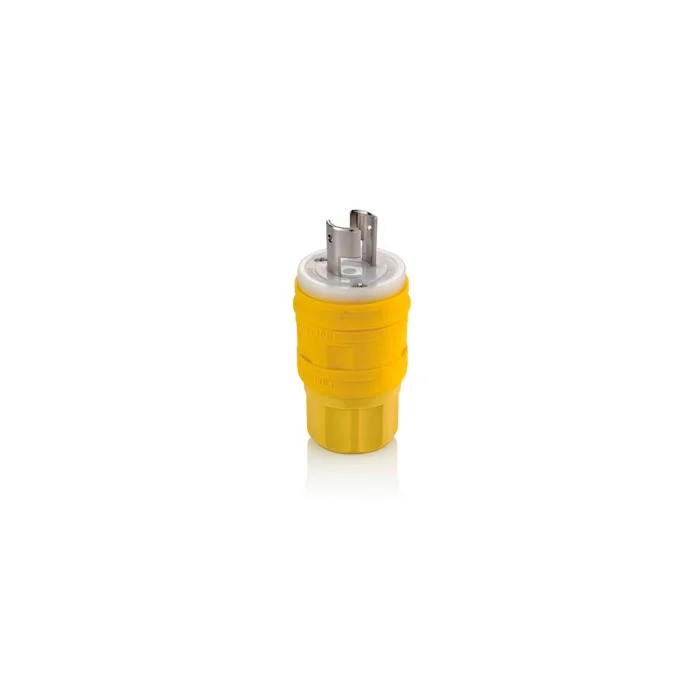

LEVITON 26W07 WatertigHeight Locking Plug, L2-20P, 20 A, 250VAC, Yellow, 2 Poles | CR9HKV 792T83

LEVITON 26W07 Non-Grounding Locking Plug, 1 Phase, 250 VAC, 20 A, 2 Poles, 2 Wires, Yellow

Item: CR9HKVModel: 26W07Cross Ref: 792T83
7 In Stock

Ships within 2 days via

€64.15
5.00% off
€60.94 /unit
This product can only be shipped in multiples of 20
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Plug
Amps 20A
Amps Limiting Full Rated Current
Assembly Screws Material Stainless Steel
Blade Material Nickel Plated Brass
Blades/contacts Electroless Nickel Coated Brass
Body Interior Nylon
Body Length 3.34"
Body Material Santoprene TPV
Bushing Material Santoprene TPV
Color Yellow
Compression Nut Strain Relief Nylon
Connection Orientation Straight
Cord Grip 0.375" to 0.875"
Device Type Locking Plug
Dielectric Voltage Withstands 2000V Per UL498
Environment Wet
Face Dia. 1 1/2" , 1.5"
Flammability Rated V-2 Per UL 94
For Environment Washdown
For Max. Cable Dia. 7/8"
For Min. Cable Dia. 3/8"
Grade General Use
Grounding Non Grounded , Non Grounding
Housing Color Yellow
Housing Material Santoprene Tpv
Hp 2 hp
Ip Rating IP66, IP67, IP69K
Length 3 11/25"
Market Industrial
Max. Operating Temp. 60°C
Max. Wire Size 10 AWG
Midget Locking No
Min. Operating Temp. -40°C
Min. Wire Size 16 AWG
Nema Plug Configuration L2-20P
Nema Rating NEMA WD-6
No. Of Blades 2
No. Of Poles 2
No. Of Wires 2
Operating Temp. -40°C to +60°C
Outside Dia. 1 1/2" , 1.5"
Overall Length 3.44"
Phase 1
Polarized Yes
Product Datasheet leviton-5410-w.pdf
Resistance Properties Watertight
Shrouded No
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. #16 to #10
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Electroless Nickel Coated
Terminal Screws Material Brass
Ul 94 Flammability Rating V-2
Voltage 250V AC
Wire Connection Type Screw Terminal
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)31.12
Ship length (cm)40.01
Ship width (cm)22.86
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelPhaseHousing ColorIp RatingFace Dia.Max. Wire SizeMin. Wire SizeGroundingBody MaterialPrice
LEVITON 24W04 Locking Plug, L1-15P, 15 A, 125V AC, Yellow, 2 Poles | CR9HDG 792T59 24W041YellowIP66, IP67, IP69K1 1/2"10 AWG18 AWGNon GroundedSantoprene TPV€53.06
LEVITON 24W47 Locking Plug, L5-15P, 15 A, 125V AC, Yellow, 2 Poles | CR9HDL 792T62 24W471YellowIP66, IP67, IP69K1 1/2"10 AWG18 AWGGroundedEPTR Rubber€49.60
LEVITON 24W34 Locking Plug, L7-15P, 15 A, 277V AC, Yellow, 2 Poles | CR9HDP 792T61 24W341YellowIP66, IP67, IP69K1 1/2"10 AWG18 AWGGroundedEPTR Rubber€73.92
LEVITON 26W75-B WatertigHeight Locking Plug, L15-20P, 20 A, 250VAC, Black, 3 Poles, Screw Terminals | CR9HKR 792T97 26W75-B3BlackIP66, IP67, IP69K2.06"10 AWG16 AWGGroundedSantoprene TPV€64.66
LEVITON 26W81 WatertigHeight Locking Plug, L21-20P, 20 A, 120/208VAC, Yellow, 5 Poles | CR9HKT 792T94 26W813YellowIP66, IP67, IP69K2.06"10 AWG16 AWGGroundedRubber€175.37
LEVITON 28W81 WatertigHeight Locking Plug, L21-30P, 30 A, 120/208VAC, Yellow, 4 Poles, Screw Terminals | CR9HKU 792TE7 28W813YellowIP66, IP67, IP69K2.28"8 AWG12 AWGGroundedRubber€204.76
LEVITON 26W82 WatertigHeight Locking Plug, L22-20P, 20 A, 277/480VAC, Yellow, 4 Poles, Screw Terminals | CR9HKW 792T95 26W823YellowIP66, IP67, IP69K2.31"10 AWG16 AWGGroundedRubber€195.46
