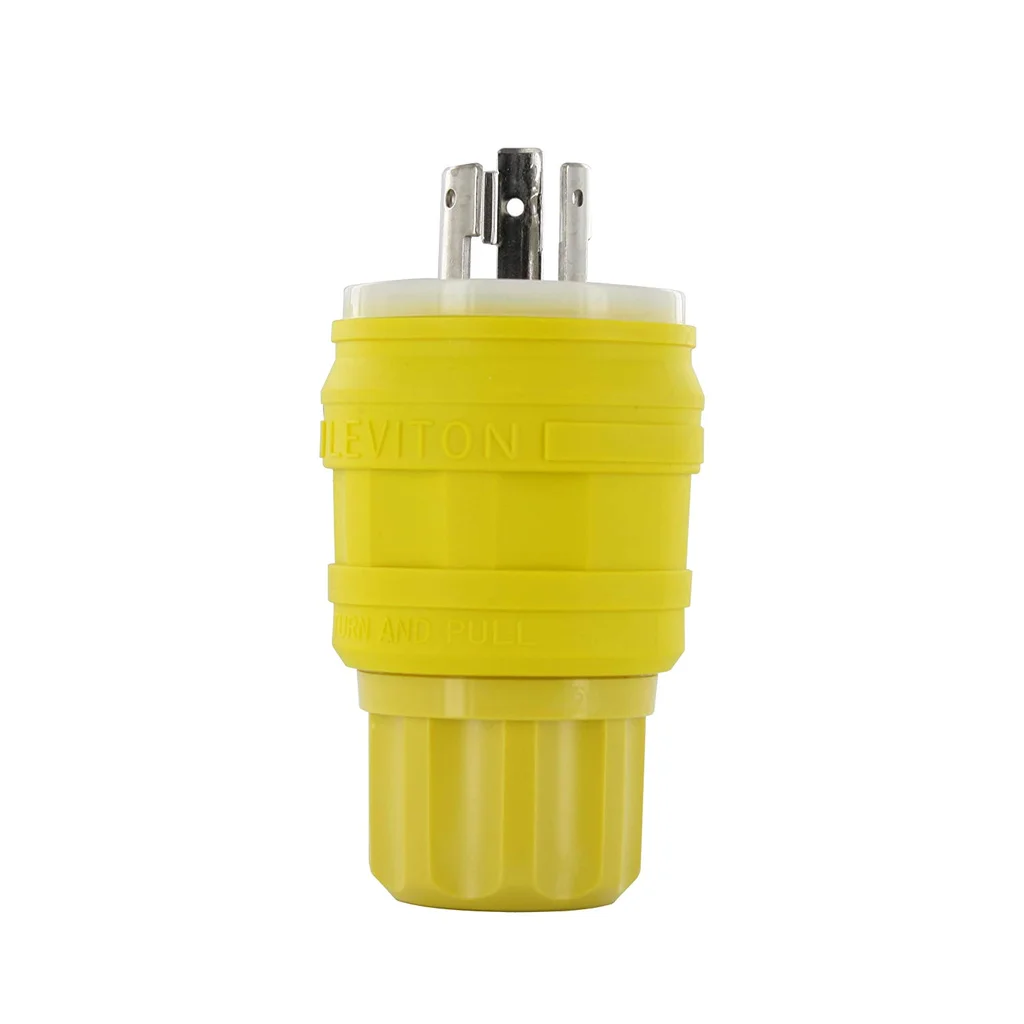

LEVITON 26W48 Locking Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Item: EA6QANModel: 26W48Cross Ref: 792T89
7 In Stock
Ships within 2 days via
5.00% off
€84.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Plug |
| Amps Rating | 20A |
| Ansi | C-73 |
| Assembly Screws | Stainless Steel 300 |
| Blade Finish | Nickel Plated |
| Blade Material | Brass |
| Blades/contacts | Nickel Plated Brass |
| Body Length | 3.58" |
| Comm Code Enhanced | 51300 |
| Compression Nut Strain Relief | Nylon |
| Connection | Screw Terminal |
| Connection Orientation | Straight |
| Constructional Feature | Water Tight |
| Cord Size | 3/8" to 7/8" |
| Cord Type | SO |
| Dielectric Voltage | Withstands 2000v Per UL498 |
| Dimension S | 2.04" x 3.61" |
| Environment | Wet |
| Family Series | Leviton Plugs, Receptacles |
| Flammability | Rated V-2 per UL 94 |
| For Environment | Washdown |
| For Max. Cable Dia. | 7/8" |
| For Min. Cable Dia. | 3/8" |
| Grade | Grade Industrial |
| Grounding | Grounding |
| Housing Color | Yellow |
| Ip Rating | IP66, IP67, IP69K, IP67, IP68, IP66, IP69K |
| Length | 8" |
| Material | TPV |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema | WD-6 |
| Nema Configuration | L6-20 , L6-20P |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Resistance Property | General Purpose |
| Shrouded | No |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Electroless Nickel-Coated Brass |
| Type | 1 Phase Grounding Watertight Cable Mount |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Width | 11 1/2" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 10 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 8.13 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Phase | For Max. Cable Dia. | For Min. Cable Dia. | Housing Color | Voltage | Material | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24W04 | 2 | 1 | 0.687" | 0.234" | Yellow | 125V AC | - | 15A | €53.06 | |
 |
24W47 | 2 | 1 | 0.655" | 3/8" | Yellow | 125V AC | - | 15A | €49.60 | |
 |
24W34 | 2 | 1 | 0.687" | 0.234" | Yellow | 277V AC | - | 15A | €73.92 | |
 |
26W75-B | 3 | 3 | 7/8" | 3/8" | Black | 250V AC | - | 20A | €64.66 | |
 |
26W81 | 4 | 3 | 7/8" | 3/8" | Yellow | 120/208V AC | - | 20A | €175.37 | |
 |
28W81 | 4 | 3 | 1 1/8" | 5/8" | Yellow | 120/208V AC | - | 30A | €204.76 | |
 |
26W07 | 2 | 1 | 7/8" | 3/8" | Yellow | 250V AC | - | 20A | €64.15 |
