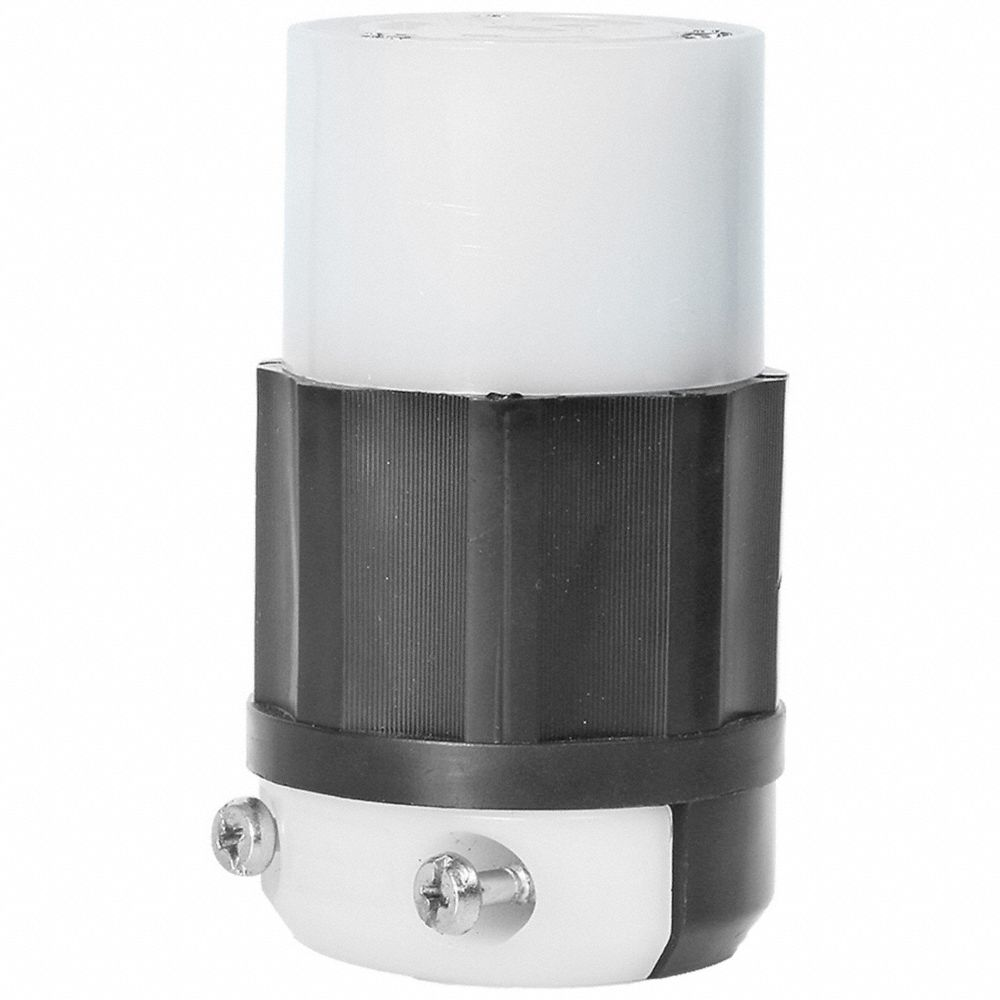

LEVITON 2643 Locking Connector, 480 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Item: EA6QAJModel: 2643Cross Ref: 792T80
7 In Stock
Ships within 2 days via
5.00% off
€118.87 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Amps Rating | 30A |
| Ansi | C-73 |
| Assembly Screws | Steel, Zinc Plated |
| Back Cover | Thermoplastic |
| Blades/contacts | Solid Brass |
| Cap Type | NO Cap Or Cover |
| Color | Black, White |
| Comm Code Enhanced | 51300 |
| Connection Orientation | Straight |
| Coo | Us |
| Cord Size | 0.385" to 0.86" |
| Dimension S | 28" x 2.47" |
| Face Dia. | 1 21/25" |
| Flammability | Rated HB or Better UL94 |
| For Max. Cable Dia. | 0.93" |
| Grade | Grade Industrial |
| Grounding | Grounding |
| Grounding Style | Self Grounding |
| Height | 4 3/25" |
| Housing Color | Black, White |
| Ip Rating | Not Rated |
| Length | 2 1/4" |
| Material | Nylon |
| Material Safety Data Sheet | Htt |
| Max. Cord Dia. | 0.86" |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Mounting | Cable |
| Nema | WD-6 |
| Nema Configuration | L8-30 , L8-30R |
| Nema Rating | NEMA L8-30R |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| Outside Dia. | 2 2/25" |
| Overall Length | 3 14/25" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Temp. Rating | -40°C to +60°C |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Type | Screw |
| Torque | 10 lbs.-in. to 14 lbs.-in. |
| Type | 1 Phase Grounding Cable Mount |
| Ul 94 Flammability Rating | HB |
| Voltage | 480V AC |
| Width | 2.31" |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 11.75 |
| Ship length (cm) | 30.01 |
| Ship width (cm) | 12.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Min. Wire Size | No. Of Poles | Housing Color | For Max. Cable Dia. | For Min. Cable Dia. | Max. Wire Size | Voltage | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2713-B | 14 AWG | 3 | Black | 1.15" | 0.595" | - | 125/250V AC | - | €88.37 | |
 |
2423 | 18 AWG | 3 | Black | 0.775" | 14/25" | 10 AWG | 250V AC | 3 | €92.63 | |
 |
4729-C | 18 AWG | 2 | Black, White | - | 0.23" | 10 AWG | 125V AC | 1 | €57.25 | |
 |
4729-CY | 18 AWG | 2 | White, Yellow | 0.7" | 6/25" | 10 AWG | 125V AC | 1 | €41.64 | |
 |
2613-B | 16 AWG | 2 | Black | 0.93" | 0.385" | - | 125V AC | - | €68.57 | |
 |
2613-PLC | 16 AWG | 2 | Black, White | 0.93" | 0.385" | 8 AWG | 125V AC | 1 | €282.90 | |
 |
2613-CY | 16 AWG | 2 | White, Yellow | 0.93" | 0.385" | 8 AWG | 125V AC | 1 | €103.51 |
