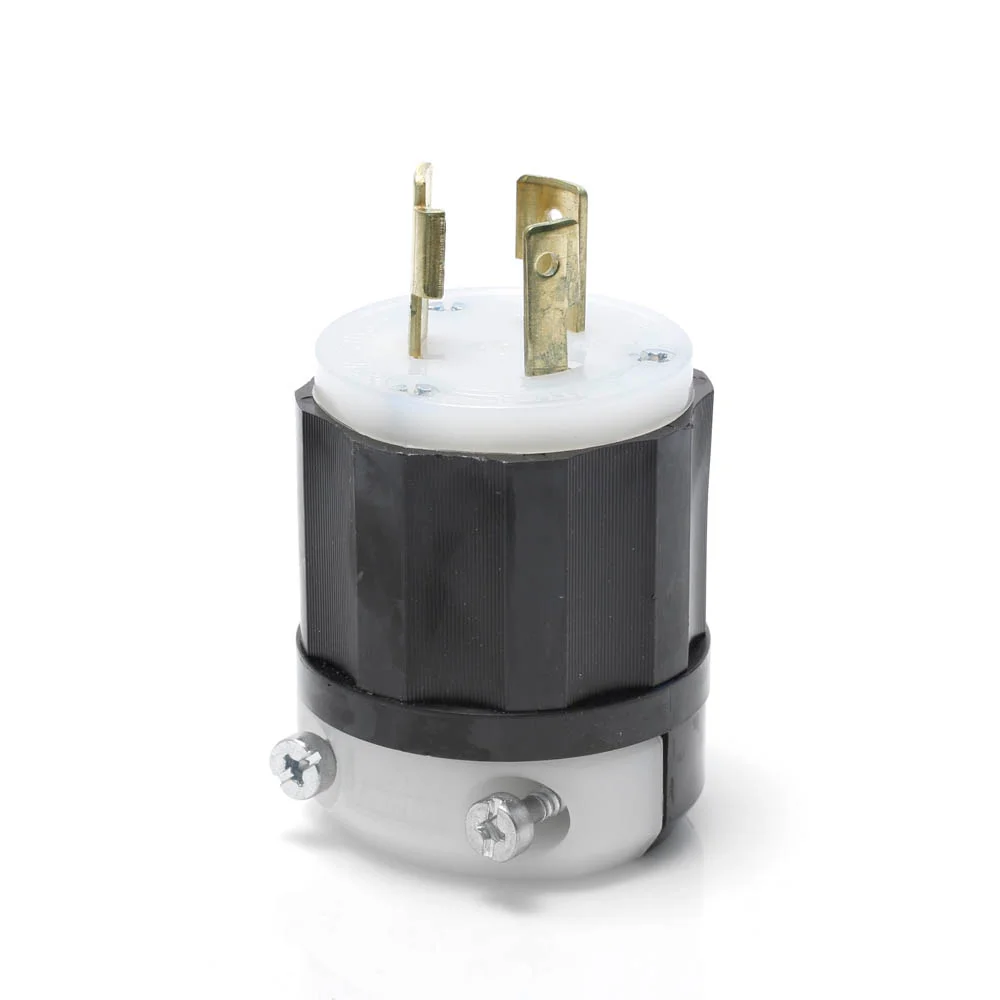

LEVITON 2311 Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Item: CR9HDUModel: 2311Cross Ref: 792T39
7 In Stock
Ships within 2 days via
5.00% off
€37.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 20A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Clamp Insert Material | Nylon |
| Color | Black And White |
| Connection Orientation | Straight |
| Cord Range | 0.385" to 0.72" |
| Cord-clamp | Nylon |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 20A |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Dia. | 1 21/25" |
| Face Diameter | 1.84" |
| Flammability | Rated HB Or Better UL94 |
| For Maximum Cable Diameter | 18/25" |
| For Minimum Cable Diameter | 0.385" |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp Rating | 1 hp |
| Ip Rating | Not Rated |
| Length | 3.37" |
| Market | Industrial |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 60°C |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Plug Configuration | L5-20P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +60°C |
| Outside Diameter | 2.08" |
| Overall Length | 3.37" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Torque Range | 10 lbs.-in. to 14 lbs.-in. |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Gauge | 16 AWG to 10 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 12.54 |
| Ship length (cm) | 30.01 |
| Ship width (cm) | 5.87 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4880-C | Straight | 3 | 3 | Black, White | 15A | 250V AC | 3.0 | General Use | €73.86 | |
 |
2741 | Straight | 3 | 4 | Black, White | 30A | 600V AC | 3.0 | Federal Specification | €81.37 | |
 |
7102-C | Straight | 2 | 2 | Black, White | 20A | 250V AC | Single | Federal Specification | €36.84 | |
 |
4720-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €29.56 | |
 |
2311-PLC | Straight | 2 | 3 | Black, White | - | - | - | Federal | €59.06 | |
 |
4570-C | Straight | 2 | 3 | Black, White | 15A | 250V AC | Single | Federal Specification | €33.06 | |
 |
2341 | Straight | 2 | 3 | Black, White | 20A | 480V AC | Single | Federal Specification | €50.39 |
