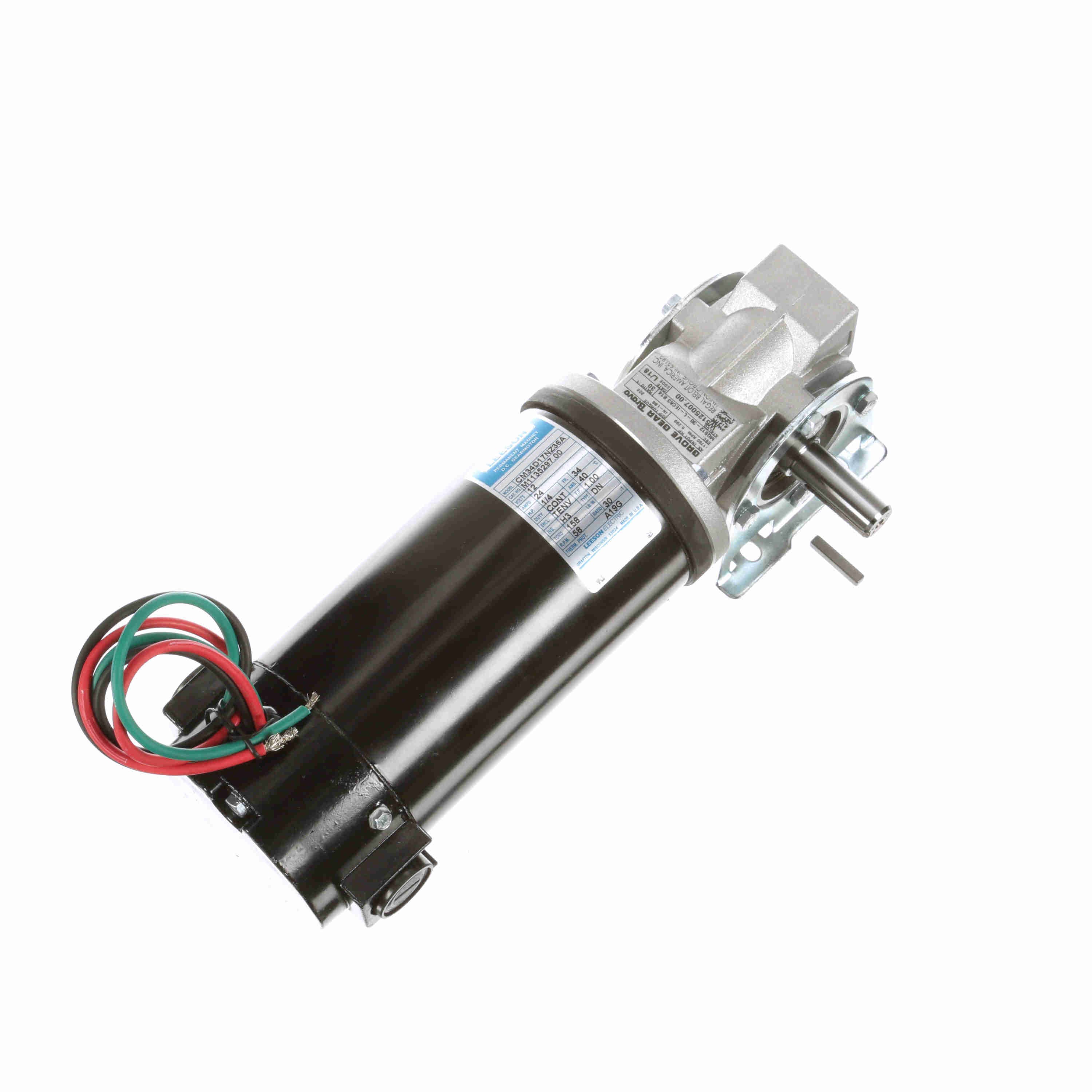

LEESON M1135297.00 CM34D17NZ36A Right Angle Gearmotor, 0.25 HP, 12V, 58 RPM
Get it by Monday, May 25
€1,049.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 24A |
| Base To Center Of Shaft | 2.17" |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 37.3% |
| Enclosure Type | Tenv |
| Frame Length | 5.31" |
| Frame Size | 34 |
| Frame Suffix | Not Available |
| Full Load Amps | 24A |
| Gear Ratio | 30 |
| Gear Type | Worm |
| Height | 5.63" |
| Housing Material | Die Cast Aluminum Alloy |
| Hp | 1/4 hp |
| Input Hp | 1/4 hp |
| Insulation Class | Class H |
| Keyway Depth | 1" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.19 kW |
| Length | 15 1/4" |
| Length Less Shaft | 9.93" |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 58 RPM |
| Maximum Torque | 158 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class H |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1.97" |
| Mount Hole Center-to-center Width | 2 16/25" |
| Mount Type | Special |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Rpm | 58 RPM |
| Operating Voltage | 12V DC |
| Opp. Drive End Bearing Size | 608 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.19 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6 23/25" |
| Overall Length | 11.82" |
| Overall Width | 4 13/25" |
| Product Datasheet | leeson-m1135297-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 58 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Standards | Csa, Ul |
| Torque | 158 lbs.-in. |
| Type | Right Angle Continuous Duty |
| Voltage Rating | 12V DC |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Gear Ratio | Nameplate Rpm | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1135065.00 | 180V DC | 10:1 | 250 RPM | 1/4 hp | - | 235 lbs.-ft. | - | 12 16/25" | €1,050.36 | |
 |
M1135252.00 | 12V DC | 20:1 | 125 RPM | 1/4 hp | 1.67" | 235 lbs.-ft. | - | 12 16/25" | €1,060.13 | |
 |
M1135251.00 | 12V DC | 40:1 | 62 RPM | 1/4 hp | 1.67" | 235 lbs.-ft. | - | 12 16/25" | €1,060.13 | |
 |
M1135064.00 | 180V DC | 20:1 | 125 RPM | 1/4 hp | 1.67" | 235 lbs.-ft. | - | 12 16/25" | €781.34 | |
 |
M1115020.00 | 90V DC | 20:1 | 125 RPM | 1/17 hp | 1 12/25" | 185 lbs.-ft. | - | 8 4/5" | €842.01 | |
 |
M1135039.00 | 90V DC | 20:1 | 125 RPM | 1/8 hp | 1.67" | 235 lbs.-ft. | 45 lbs.-in. | 10 16/25" | €970.18 | |
 |
M1135045.00 | 90V DC | 10:1 | - | - | - | - | - | 12 16/25" | €1,024.44 |
