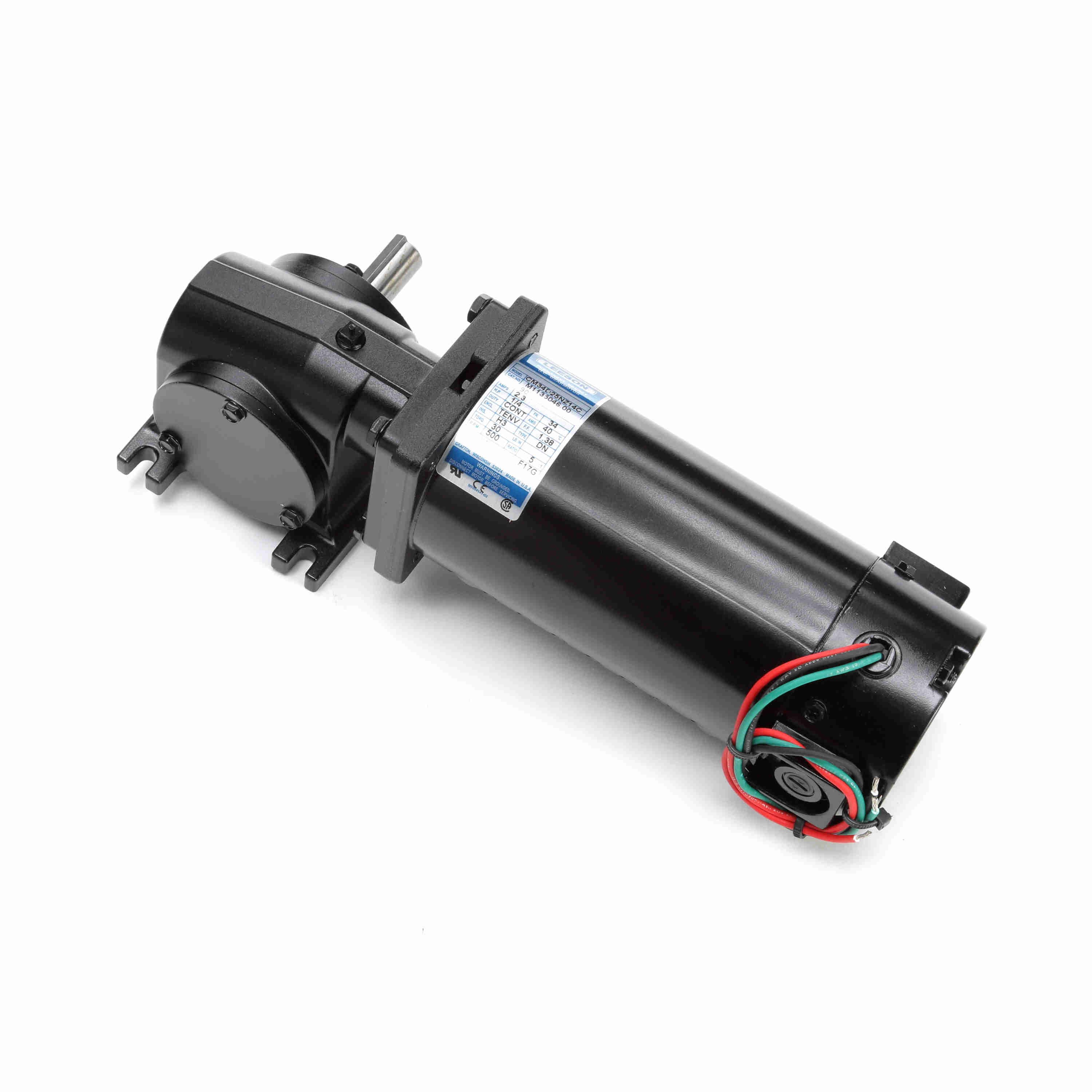

LEESON M1135046.00 CM34D25NZ14C Right Angle Gearmotor, 0.25 HP, 90V, 500 RPM
Get it by Tuesday, Apr 7
€971.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 2.3A |
| Assembly | M1040368 |
| Base To Center Of Shaft | 1.67" |
| Bearing Size | 6201-13 |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 61.1% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Frame Length | 5.81" |
| Frame Size | 34 |
| Frame Suffix | Not Available |
| Full Load Amps | 2.3A |
| Gear Ratio | 5:1 |
| Height | 6.69" |
| Hp | 1/4 hp |
| Input Hp | 1/4 hp |
| Insulation Class | Class H |
| Keyway Depth | 3/16" |
| Keyway Length | 1 1/4" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.19 kW |
| Length | 16 1/2" |
| Length Less Shaft | 10 22/25" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 500 RPM |
| Max. Torque | 30 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class H |
| Motor Type | Permanent Magnet DC |
| Mount Type | Special |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Rpm | 500 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030350 |
| Output Kw | 0.19 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 6.58" |
| Overall Length | 12 16/25" |
| Overall Width | 5.3" |
| Overrlung Ld. | 235 lbs. |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 500 RPM |
| Series | 13 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Starting Torque | 30 lbs.-in. |
| Test Card | 04 |
| Torque | 30 lbs.-in. |
| Type | Dn |
| Voltage | 90V |
| Winding | MD342145 |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Orientation | Operating Voltage | Gear Ratio | Nameplate Rpm | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125039.00 | Parallel | 180V DC | 35:1 | 51 RPM | 1/8 hp | 3 1/2" | 227 lbs.-ft. | 130 lbs.-in. | €1,007.08 | |
 |
M112528100 | - | - | - | - | - | - | - | - | €1,265.04 |
