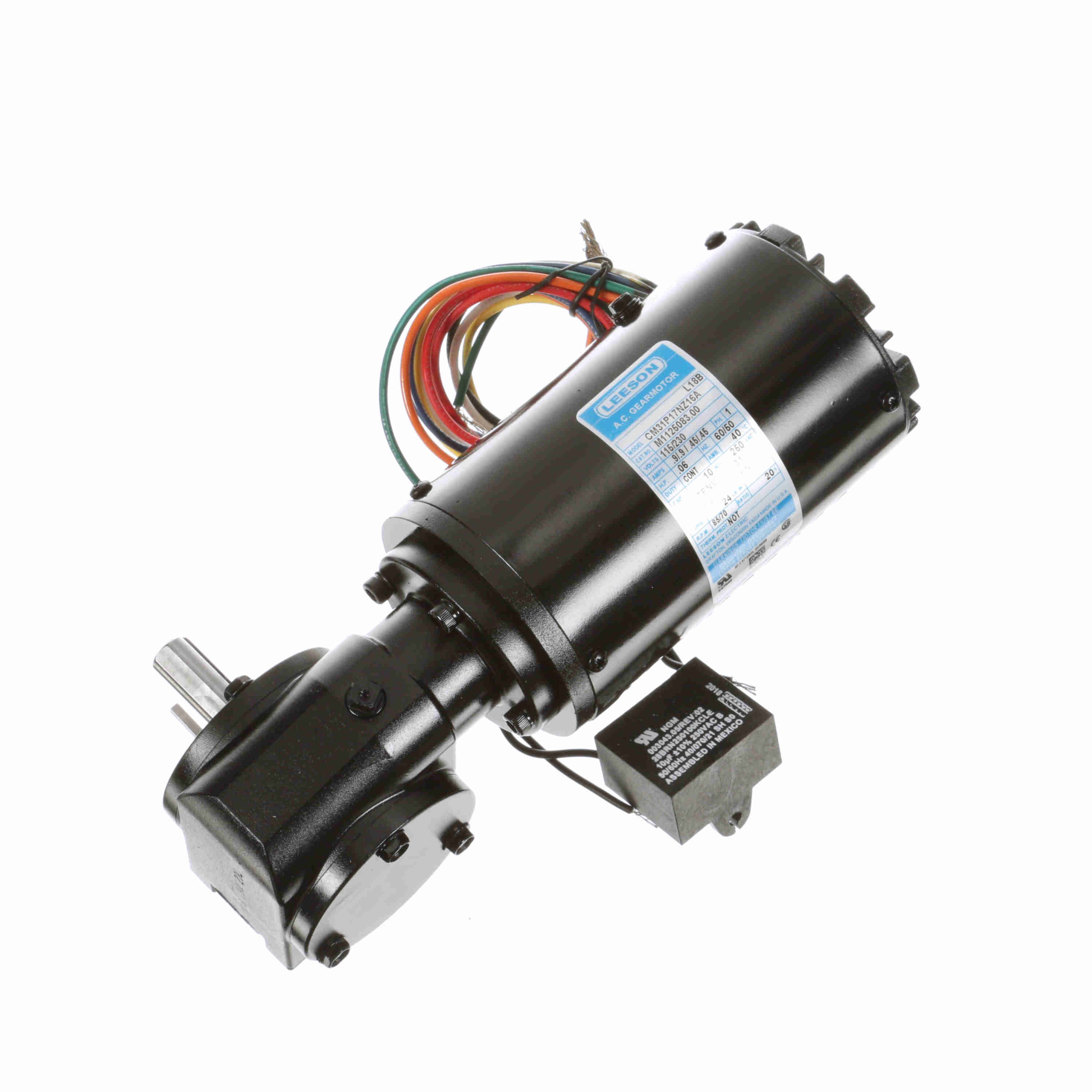

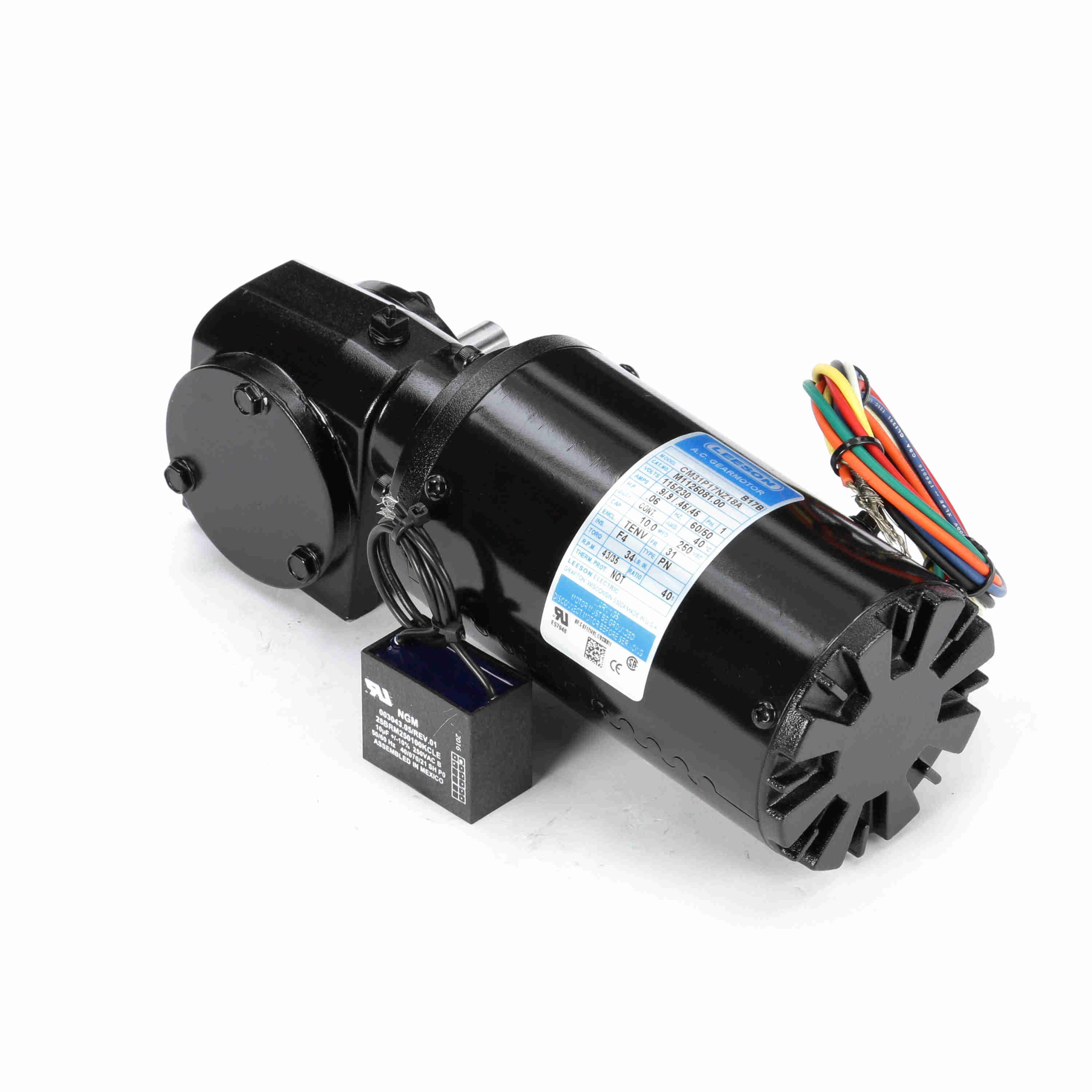

LEESON M1125083.00 CM31P17NZ16A Right Angle Gearmotor, 0.06 HP, 1 Phase, 60 Hz, 115V, 85 RPM
Item: AJ2WVQModel: M1125083.00Cross Ref: 794AP1 / CM31P17NZ16A
7 In Stock
Ships within 2 days via
5.00% off
€1,532.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 0.45/0.9A |
| Assembly | M1040445 |
| Base To Center Of Shaft | 1 12/25" |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | C |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Frame | 31 |
| Frame Length | 4 3/4" |
| Frame Size | 31 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.45/0.9A |
| Gear Ratio | 20:1 |
| Housing Material | Aluminum |
| Hp | 3/50 hp |
| Included | Conduit Box, Gearbox Base |
| Included Capacitor | Capacitor Included |
| Included Junction/conduit Box | Yes |
| Input Hp | 3/50 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/8" |
| Keyway Type | Square |
| Keyway Width | 3/23" |
| Kw | 0.04 kW |
| Length Less Shaft | 7.66" |
| Lubrication | Oil Bath |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 85 RPM |
| Max. Torque | 24 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center To Center Length | 2" |
| Mount Hole Center To Center Width | 1.19" |
| Mounting | Special |
| Mounting Orientation | Horizontal |
| Mounting Type | Horizontal , Special |
| Nameplate Speed | 85 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Opp Drive End Bearing Size | 608 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030420 |
| Output Direction | Reversible |
| Output Kw | 0.04 kW |
| Output Shaft Dia. | 1/2" |
| Output Shaft Length | 1 5/16" |
| Overall Height | 4.02" |
| Overall Length | 8.94" |
| Overall Width | 4.95" |
| Overhung Load Capacity | 185 lbs.-ft. |
| Overrlung Ld. | 185 lbs. |
| Packaging | M1307027.01 |
| Phase | 1 |
| Product Datasheet | leeson-m1125083-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Series | 10 Series |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1.3" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Speed | 85 RPM |
| Starting Torque | 24 lbs.-in. |
| Test Card | 01 |
| Torque | 24 lbs.-in. |
| Type | PN |
| Voltage | 115V |
| Winding | MP3141 |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Details:
- HPKW: .06/.06
- Nameplate: M1004149.02
- Overrlung Ld.: 185
- Winding: MP3141
- GROUP: 3 C
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Max. Torque | Operating Voltage | Gear Ratio | Full Load Amps | Lubrication | Insulation Class | Bearing Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125080.00 | 37 lbs.-in. | 115/230V AC | 60:1 | 0.45/0.9A | Oil Bath | Class F | Ball | 8.94" | €1,141.85 | |
 |
M1125081.00 | 34 lbs.-in. | 115/230V AC | 40:1 | 0.45/0.9A | Oil Bath | Class F | Ball | 8.94" | €1,140.30 | |
 |
M1135044.00 | 90 lbs.-in. | 90V AC | 20:1 | 2.3A | Semi-Fluid Grease | Class H | Permanently Lubricated | 12 16/25" | €1,059.24 | |
 |
M1135040.00 | 25 lbs.-in. | 90V AC | 10:1 | 1.4A | Semi-Fluid Grease | Class H | Permanently Lubricated | 10 16/25" | €1,284.27 | |
 |
M1125082.00 | 40 lbs.-in. | 115/230V AC | 30:1 | 0.45/0.9A | Oil Bath | Class F | Ball | 8.94" | €1,714.71 |
