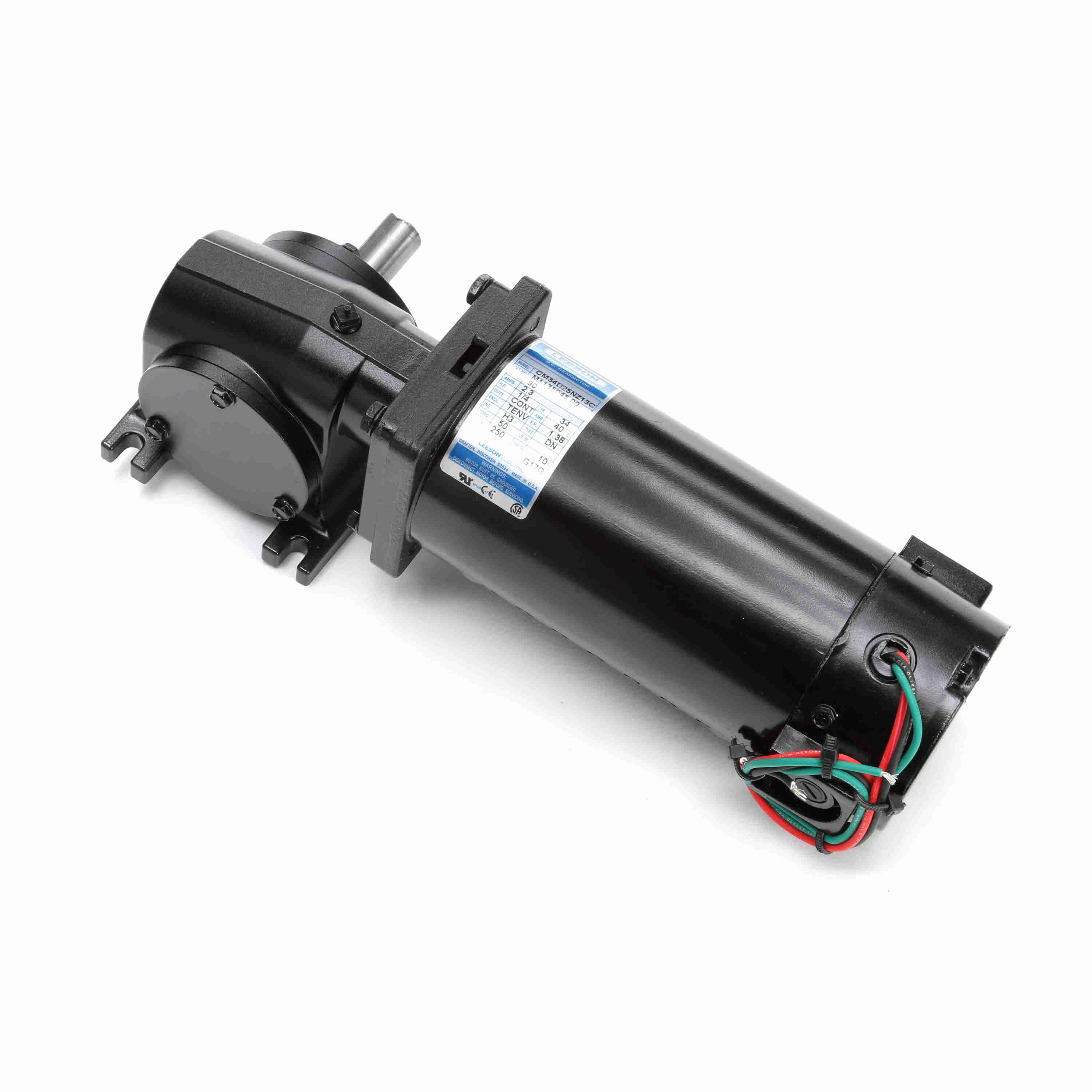

LEESON M1135045.00 CM34D25NZ13C Right Angle Gearmotor, 0.25 HP, 90V, 250 RPM
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€990.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 2.3A |
| Bearing Type | Ope6201-13 |
| Ce | Y |
| Csa | Y |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 37.9% |
| Enclosure | Totally Enclosed Non Ventilated |
| Enclosure Type | Tenv |
| Features | Precision Machined Aluminum Gear Housing |
| Frame | 34 |
| Frame Length | 5.81" |
| Frame Size | 34 |
| Frame Suffix | Not Available |
| Full Load Amps | 2.3A |
| Gear Ratio | 10:1 |
| Height | 6.69" |
| Housing Material | Aluminum |
| Hp | 1/4 hp |
| Insulation Class | Class H |
| Keyway Depth | 3/16" |
| Keyway Length | 1 1/4" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.19 kW |
| Length | 16 1/2" |
| Length Less Shaft | 12.64" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 250 RPM |
| Max. Torque | 50 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Insulation Class | Class H |
| Mount Hole Center To Center Length | 3.25" |
| Mount Hole Center To Center Width | 3" |
| Mounting | Special |
| Mounting Orientation | Any Angle |
| Mounting Type | Special |
| Nameplate Speed | 250 RPM |
| Operating Voltage | 90V DC |
| Opp Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Hp | 1/4 hp |
| Output Kw | 0.19 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Output Shaft Type | Keyed |
| Overall Height | 6.58" |
| Overall Length | 12 16/25" |
| Overall Width | 4" |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 0.625" , 5/8" |
| Shaft Extension | 1.8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Speed | 250 RPM |
| Thermal Protection | No |
| Torque | 50 lbs.-in. |
| Ul | Recognized |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Torque | Full Load Amps | Nameplate Speed | Voltage | Operating Voltage | Bearing Type | Housing Material | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1135065.00 | 50 lbs.-in. | 1.3A | 250 RPM | 180V | 180V DC | - | Aluminum | 5/8" | €1,124.97 | |
 |
M1135252.00 | 90 lbs.-in. | 21A | 125 RPM | 12V | 12V DC | Ball | - | 5/8" | €1,140.20 | |
 |
M1135297.00 | 158 lbs.-in. | 24A | 58 RPM | 12V DC | 12V DC | - | Die Cast Aluminum Alloy | 5/8" | €1,049.47 | |
 |
M1135251.00 | 135 lbs.-in. | 21A | 62 RPM | 12V | 12V DC | Ball | - | 5/8" | €1,140.20 | |
 |
M1135064.00 | 90 lbs.-in. | 1.3A | 125 RPM | 180V | 180V DC | Ball | - | 5/8" | €781.34 | |
 |
M1115020.00 | 16 lbs.-in. | 0.85A | 125 RPM | 90V | 90V DC | - | - | 1/2" | €842.01 | |
 |
M1135039.00 | 45 lbs.-in. | 1.4A | 125 RPM | 90V | 90V DC | - | - | 5/8" | €970.18 |
