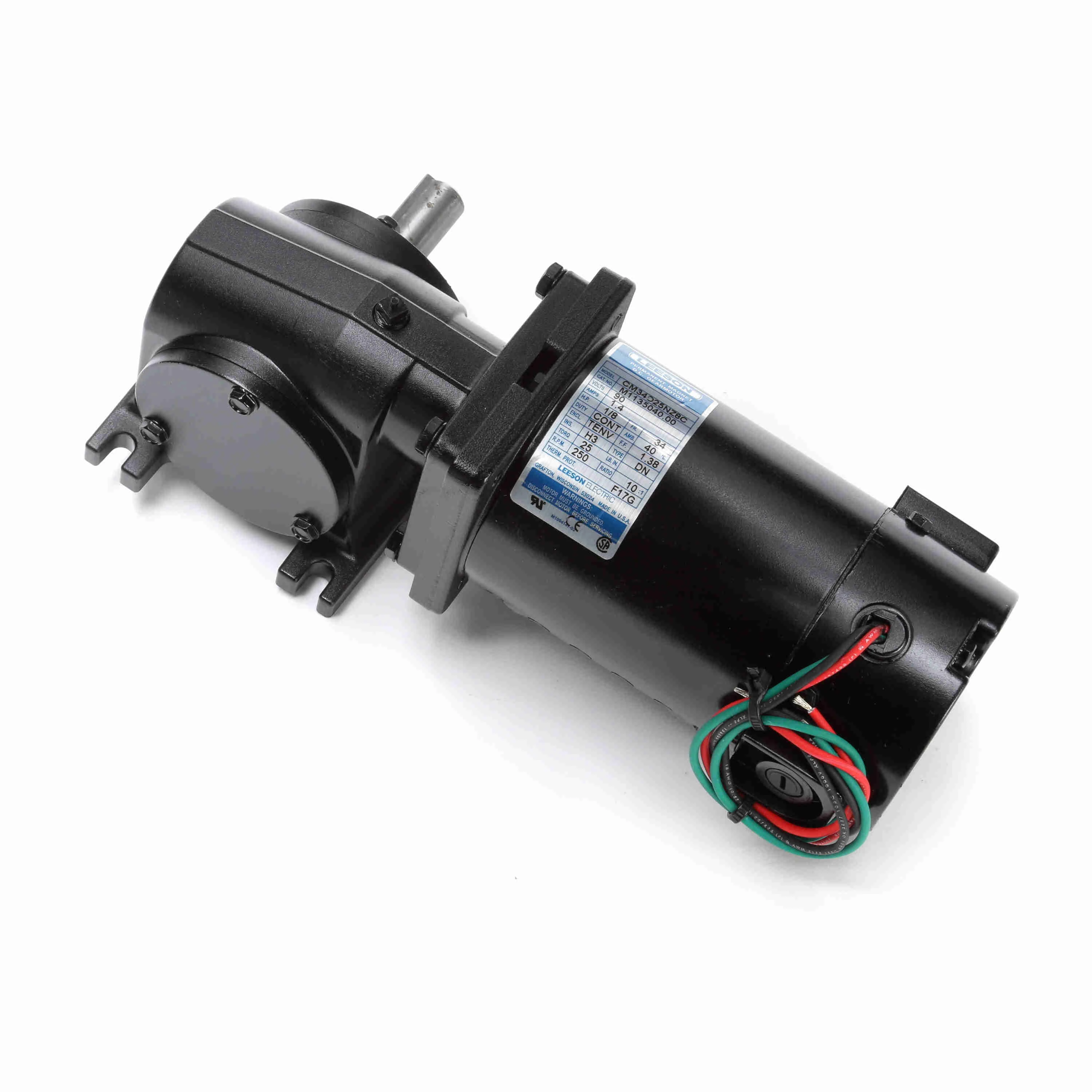

LEESON M1135040.00 CM34D25NZ8C Right Angle Gearmotor, 0.13 HP, 90V, 250 RPM
Item: CR8PMDModel: M1135040.00Cross Ref: 36X635 / CM34D25NZ8C
7 In Stock
Ships within 2 days via
5.00% off
€1,260.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1.4A |
| Assembly | M1040373 |
| Bearing Type | Permanently Lubricated |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Efficiency | 35.4% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Features | Output Shaft Is Field Interchangeable From Left Hand To Right Hand Style By Re-Assembly |
| Frame Length | 3.81" |
| Frame Size | 34 |
| Frame Suffix | Not Available |
| Full Load Amps | 1.4A |
| Gear Ratio | 10:1 |
| Height | 6.69" |
| Housing Material | Aluminum |
| Hp | 13/100 hp |
| Input Horsepower | 0.13 hp |
| Input Hp | 13/100 hp |
| Insulation Class | Class H |
| Keyway Depth | 3/16" |
| Keyway Length | 1 1/4" |
| Keyway Type | Square |
| Keyway Width | 0.187" |
| Kw | 0.1 kW |
| Length | 16 1/2" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 104°F |
| Max. Torque | 25 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Frame Designation | 34 |
| Motor Insulation Class | Class H |
| Mount Type | Special |
| Mounting Type | Special |
| Nameplate Rpm | 250 RPM |
| Nameplate Rpm Range | 201-250 RPM |
| Operating Voltage | 90V AC |
| Opp. Drive End Bearing Size | 608 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030350 |
| Output Direction | Reversible |
| Output Kw | 0.1 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 6.61" |
| Overall Length | 10 16/25" |
| Overall Width | 4.09" |
| Overrlung Ld. | 235 lbs. |
| Product Datasheet | leeson-m1135040-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 250 RPM |
| Series | 13 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Test Card | 04 |
| Thermal Protection | No Protection |
| Torque | 25 lbs.-in. |
| Type | Dn |
| Voltage | 90V |
| Winding | MD342195 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
