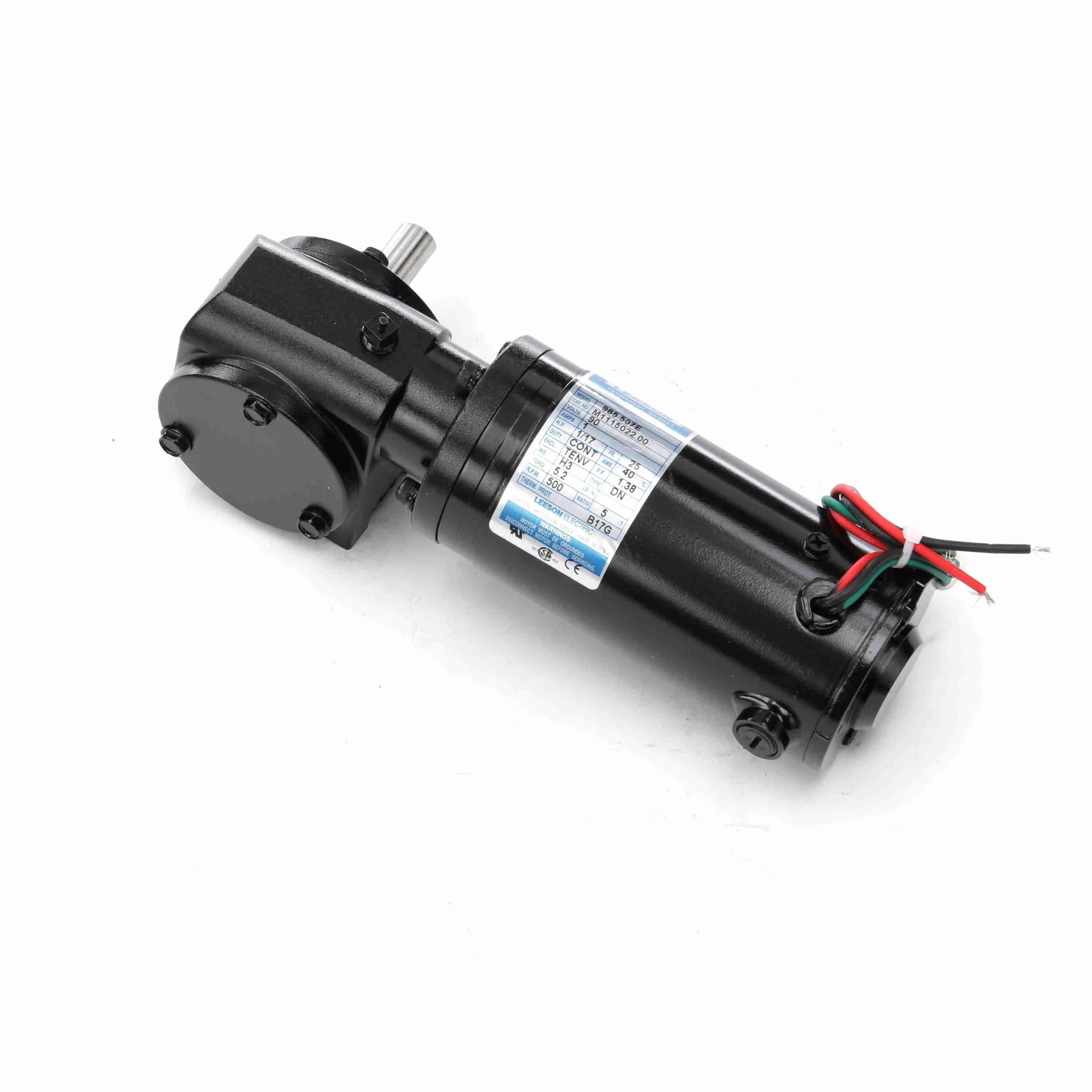

LEESON M1115022.00 Right Angle Gearmotors, Right Angle, 90V DC, Tenv, 500 Rpm, 5.2 In-Lb Max Torque | CR8PNL 794AX8

LEESON M1115022.00 985.507E Right Angle Gearmotor, 0.06 HP, 90V, 500 RPM

Item: CR8PNLModel: M1115022.00Cross Ref: 794AX8 / 985.507E
7 In Stock
HP
RPM

Ships within 2 days via

€842.01 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item DC Gearmotor
Ambient Temp. 40°C
Amps 1A
Assembly M1041038
Base To Center Of Shaft 1 12/25"
Bearing Type Ball
Connection Const Torque Speed Range
Drive End Bearing Size 608
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 25.9%
Enclosure Type Tenv
Explosion Proof Brake Motors
Frame Length 4 1/4"
Frame Size 25
Frame Suffix Not Available
Full Load Amps 1A
Gear Ratio 5:1
Height 5.63"
Hp 3/50 hp
Input Hp 1/17 hp
Insulation Class Class H
Keyway Depth 3/4"
Keyway Length 1 1/8"
Keyway Type Square
Keyway Width 1/8"
Kw 0.04 kW
Length 15 1/4"
Length Less Shaft 7 13/25"
Lubrication Oil Bath
Max. Ambient Temp. 40°C
Max. Output Speed 500 RPM
Maximum Torque 5.2 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Nonventilated
Motor Insulation Class Class H
Motor Type Permanent Magnet DC
Mount Hole Center-to-center Length 2"
Mount Hole Center-to-center Width 1.19"
Mount Type Special
Mounting Orientation Horizontal
Mounting Type Special
Nameplate Rpm 500 RPM
Operating Voltage 90V DC
Opp. Drive End Bearing Size 608
Opp. Drive End Bearing Type Ball
Outline M1030885
Output Kw 0.04 kW
Output Shaft Dia. 1/2"
Output Shaft Length 1 5/16"
Overall Height 5.54"
Overall Length 8 4/5"
Overall Width 3.94"
Overhung Load Capacity 185 lbs.-ft.
Overrlung Ld. 185 lbs.
Product Datasheet leeson-m1115022-00.pdf
Rotation CW/CCW
Rotation Type Reversible
Rpm 500 RPM
Series 10 Series
Service Factor 1
Shaft Dia. 1/2"
Shaft Length 1.3"
Shaft Orientation Right Angle
Shaft Type Right Angle
Starting Torque 5.2 lbs.-in.
Test Card 02
Torque 5.2 lbs.-in.
Type Dn
Voltage 90V
Winding MD2526

Shipping Info:

Ship weight (kg) 2.7
Ship height (cm)14.3
Ship length (cm)38.74
Ship width (cm)18.11
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelOperating VoltageGear RatioNameplate RpmInput HpBase To Center Of ShaftOverhung Load CapacityMax. TorqueOverall LengthPrice
LEESON M1135065.00 Motor, 1/4 Hp 180 Volt Tenv, Right Angle, 180V DC | CR8PMR 36X855 M1135065.00180V DC10:1250 RPM1/4 hp-235 lbs.-ft.-12 16/25"€1,050.36
LEESON M1135252.00 Right Angle Gearmotors, Right Angle, 12V DC, Tenv, 125 Rpm, 90 In-Lb Max Torque | CR8PMW 794AZ2 M1135252.0012V DC20:1125 RPM1/4 hp1.67"235 lbs.-ft.-12 16/25"€1,060.13
LEESON M1135297.00 Right Angle Gearmotors, Right Angle, 12V DC, Tenv, 58 Rpm, 158 In-Lb Max Torque | CR8PMX 794AZ3 M1135297.0012V DC3058 RPM1/4 hp2.17"--11.82"€1,049.47
LEESON M1135251.00 Right Angle Gearmotors, Right Angle, 12V DC, Tenv, 62 Rpm, 135 In-Lb Max Torque | CR8PMY 794AZ1 M1135251.0012V DC40:162 RPM1/4 hp1.67"235 lbs.-ft.-12 16/25"€1,060.13
LEESON M1135064.00 Right Angle Gearmotors, Right Angle, 180V DC, Tenv, 125 Rpm, 90 In-Lb Max Torque | CR8PMZ 794AY7 M1135064.00180V DC20:1125 RPM1/4 hp1.67"235 lbs.-ft.-12 16/25"€781.34
LEESON M1115020.00 Right Angle Gearmotors, Right Angle, 90V DC, Tenv, 125 Rpm, 16 In-Lb Max Torque | CR8PNA 794AX7 M1115020.0090V DC20:1125 RPM1/17 hp1 12/25"185 lbs.-ft.-8 4/5"€842.01
LEESON M1135039.00 Right Angle Gearmotors, Right Angle, 90V DC, Tenv, 125 Rpm, 45 In-Lb Max Torque | CR8PNB 794AY1 M1135039.0090V DC20:1125 RPM1/8 hp1.67"235 lbs.-ft.45 lbs.-in.10 16/25"€970.18
