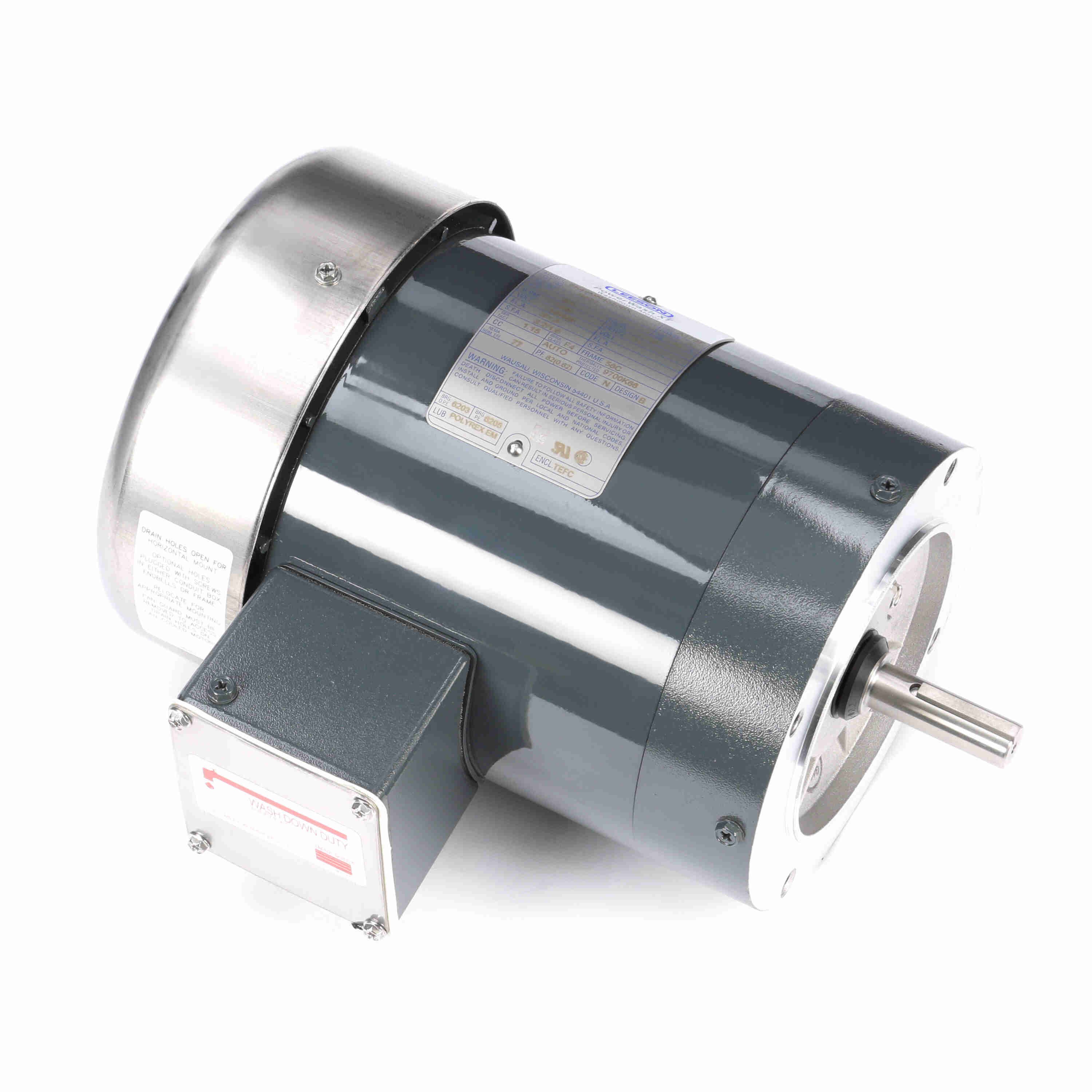

LEESON 5K49MN4620 K607 Severe Duty Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Dec 23
€901.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Car Wash Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Double Sealed Ball |
| Body Dia. | 6 1/2" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Finish | Epoxy Paint |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3/1.5A |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Length Less Shaft | 9 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Car Wash |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 77% |
| Number Of Speeds | 1 |
| Overall Length | 11 11/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Shaft Material | Stainless Steel |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 29 lbs. |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.05 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| HS code | 8501514040 |
| Country of Origin | US |
Product Variants
| Product | Model | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Efficiency | Conduit Box Position | Nominal Efficiency | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K42GN4619 | 1800 RPM | 1/2 hp | 2.2/1.1A | C Face | 72% | F1 Only | 72% | Totally Enclosed Fan Cooled | €1,157.37 |
