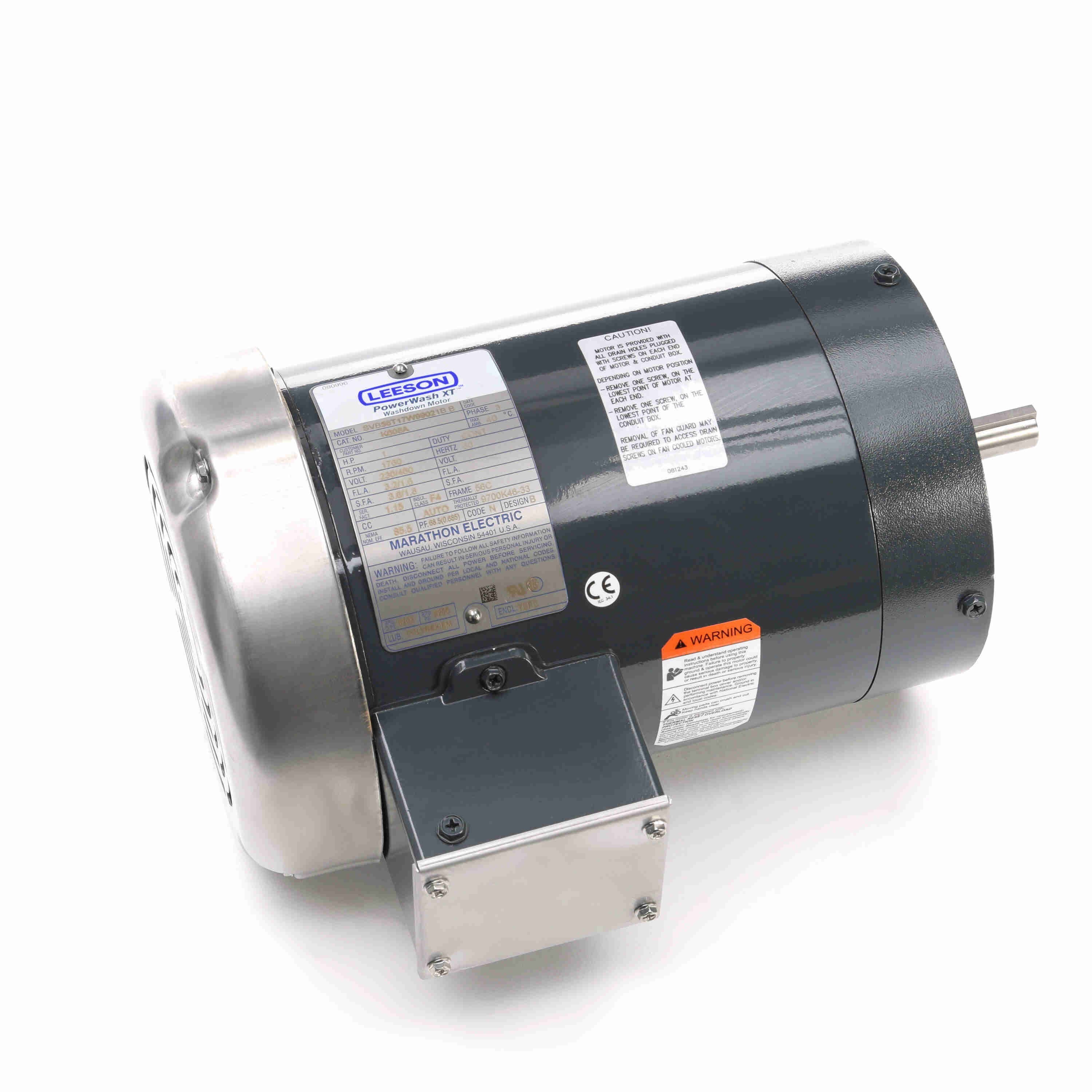

LEESON 056T17W99021 K608A / 56T17W99021B Severe Duty Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Thursday, Dec 18
10.00% off
€1,266.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Full Load Amps | 3.2/1.6A |
| Hp | 1 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 10 13/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Face |
| Nameplate Rpm | 1760 RPM |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 12 7/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Standards | Ce, Csa, Ul Recognized |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 36 lbs. |
Shipping Info:
| Ship weight (kg) | 15.62 |
| Ship height (cm) | 31.47 |
| Ship length (cm) | 114.3 |
| Ship width (cm) | 106.68 |
| Country of Origin | US |
Product Variants
| Model | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Service Factor | Voltage | Frame Material | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 056T17F15954 | 1725 RPM | 1 1/2 hp | 4.6-4.7/2.3A | Universal | 1.15 | 208-230/460V | Rolled Steel | CCW | €770.33 | |
| 056T34F15671 | 3450 RPM | 1 1/2 hp | 4/2A | Universal | 1.15 | - | Rolled Steel | CW/CCW | €944.87 | |
| 056T34F15672 | 3450 RPM | 1 1/2 hp | 1.6A | Bolt On Base | 1.15 | 575V | Rolled Steel | CCW | €630.40 | |
| 056T11F15544 | 1140 RPM | 1 hp | 3.8-3.8/1.9A | Bolt On Base | 1, 1.15 | 230/460/190/380V | Rolled Steel | CCW | €1,202.66 | |
| 056T34F15679 | 3450 RPM | 1 hp | 1.1A | Bolt On Base | 1.15 | 575V | Rolled Steel | CCW | €574.86 | |
| 056T34F15680 | 3450 RPM | 1 hp | 3-3/1.5A | Bolt On Base | 1, 1.15 | 208-230/460/190/380V | Rolled Steel | CW/CCW | €574.86 | |
| 056T11F15540 | 1140 RPM | 1/2 hp | 2-2.1/1.1A | Bolt On Base | 1, 1.15 | 230/460/190/380V | Rolled Steel | CCW | €988.12 |
