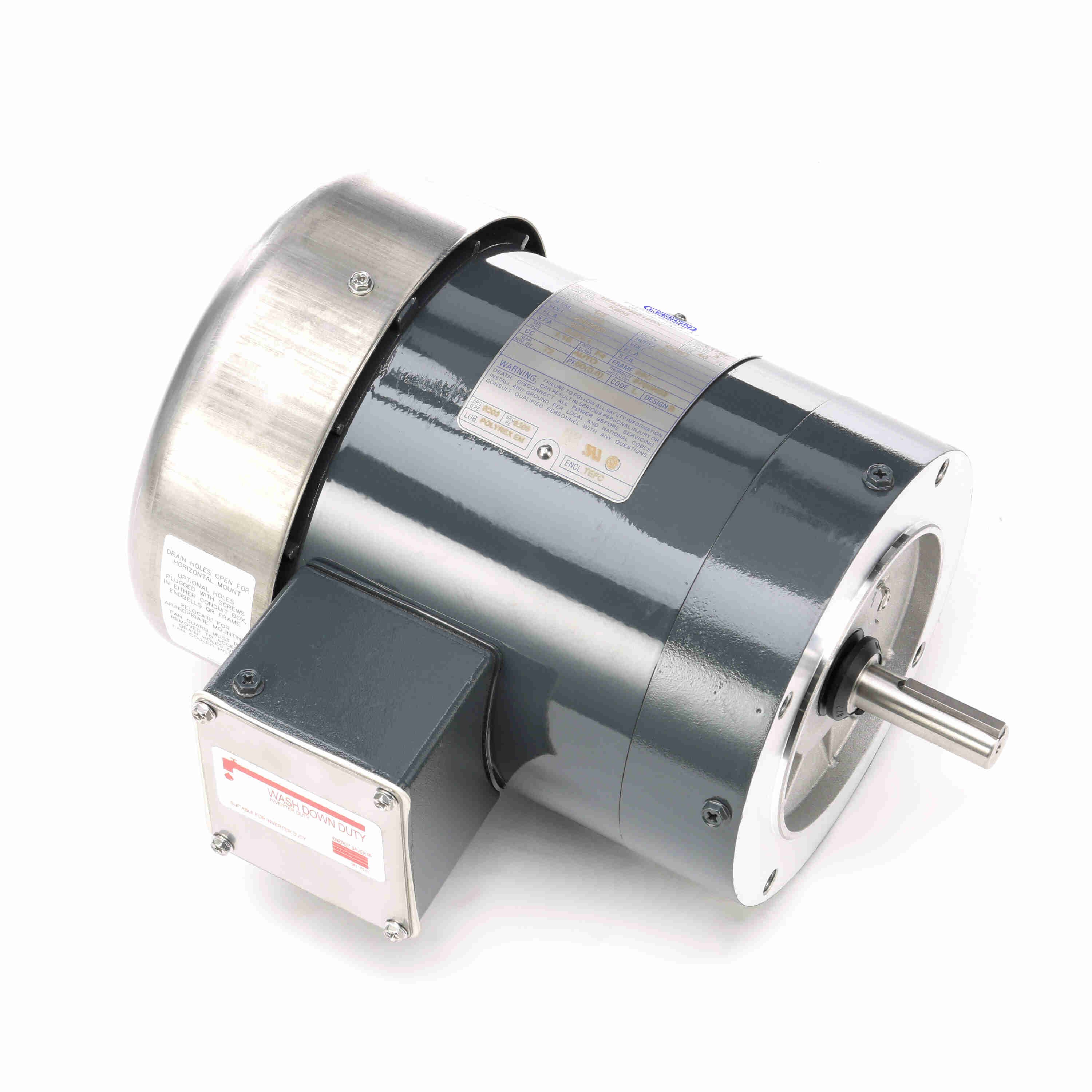

LEESON 5K42GN4619 K606 Severe Duty Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Monday, Jul 6
5.00% off
€1,068.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.2/1.1A |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face, Footless |
| Motor Thermal Protection | Automatic |
| Mounting Type | C Face |
| Nameplate Speed | 1800 RPM |
| Nema Design | B |
| Nominal Efficiency | 72% |
| Orientation | Horizontal |
| Output Kw | 0.37 kW |
| Phase | 3 |
| Power | 0.37 kW |
| Product Datasheet | leeson-5k42gn4619.pdf |
| Service Factor | 1.15 |
| Thermal Protection | Automatic |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 27.05 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: L
- Drive End Bearing: BALL
- IP Code: 55
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6205
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Frequency | Voltage | Hp | Full Load Amps | Phase | Service Factor | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 60 Hz | 115/230V AC | 1/3 hp | 3.8-4/1.9-2A | 1 | 1.35 | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 60 Hz | 115/230V AC | 3/4 hp | 8.8-9/4.4-4.5A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face, Base | Capacitor Start, Run | €1,060.60 |
