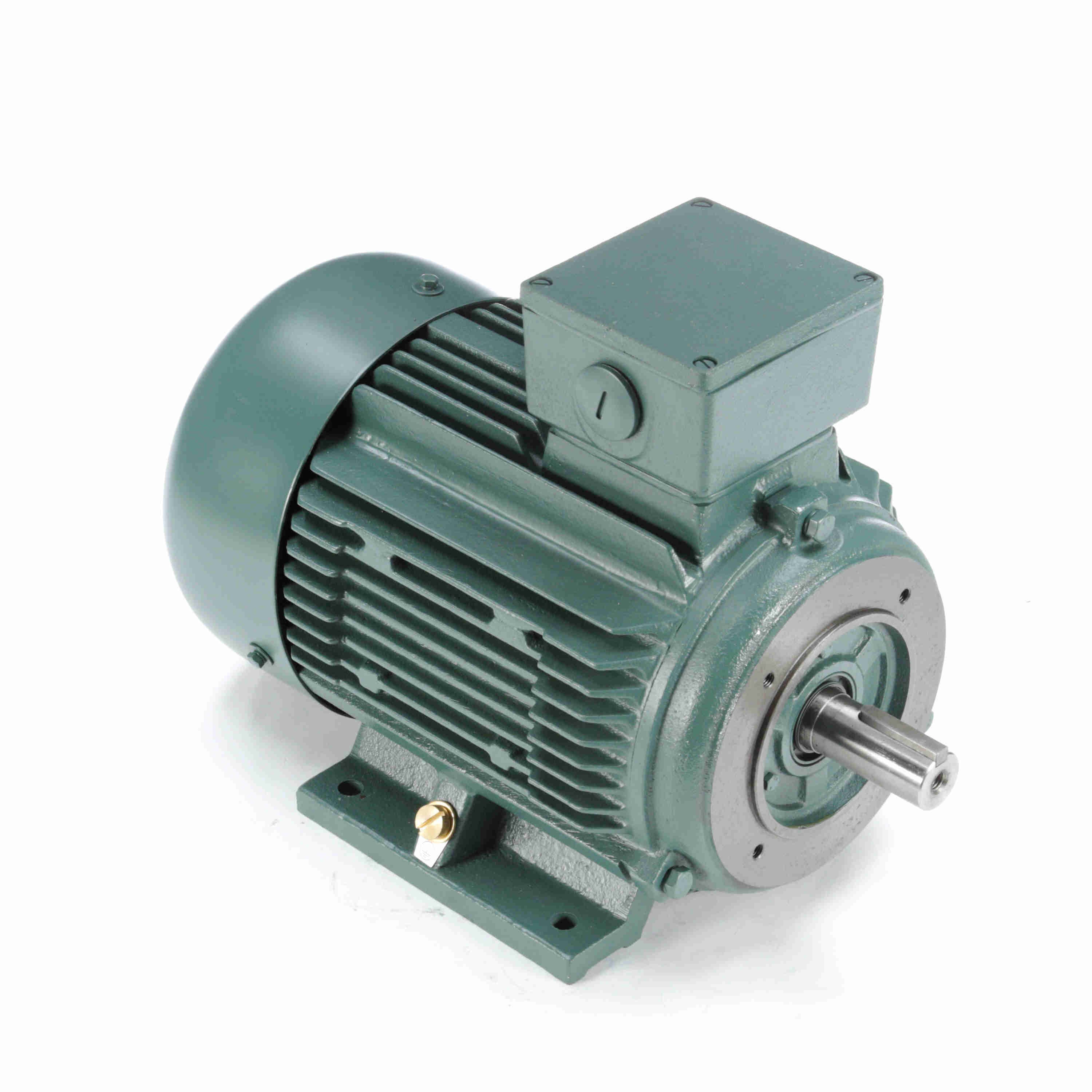

LEESON 193373.60 C160T34FZ65A General Purpose Motor, 15 HP, 3 Phase, 3550 RPM
Get it by Monday, Dec 22
€2,850.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Ambient Temp. | 40°C |
| Code | G |
| Design | B, G |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91% |
| Efficiency Group | Premium |
| Enclosure Type | Tefc |
| Frame | 160M |
| Frame Material | Cast Iron |
| Frame Type | 160m |
| Frequency | 60 Hz |
| Full Load Amps | 35/17.5A |
| Hp | 15 hp |
| Insulation Class | Class F |
| Kw | 11.2 kW |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6209 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 11.2/7.5 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 88.5, 86.5 |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4.33" |
| Type | TF |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 117 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 69.85 |
| Ship width (cm) | 38.1 |
| Country of Origin | CN |
Product Details:
- Eff 100%: 91
- Eff 75%: 91
- Bearing OPE: 6209
- CC Number: CC005A
- Bearing PE: 6309
- Nameplate: 622232
- Winding: T12902027
- GROUP: 3
- Paint: VERIFY
- S. F Amps: 41 / 20.5
