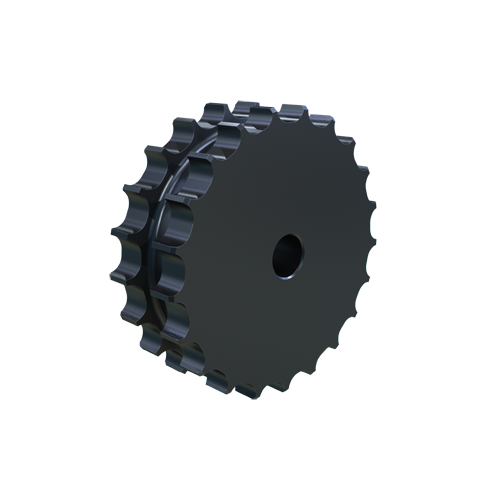

MARTIN SPROCKET 820A21B Sprocket, Stock Bore, 5.120 Inch Outside Dia., Cast Iron
Item: AM7KFGModel: 820A21B
7 In Stock
Ships within 2 days via
€255.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 3/4" to 2 1/2" |
| Chain Size | #820 |
| Length Through Bore | 1 11/16" |
| Material | Cast Iron |
| No. Of Teeth | 21 |
| Pitch Dia. | 5.089" |
| Series | 800 Series |
| Type | Block Body |
Shipping Info:
| Ship weight (kg) | 3.42 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13 |
| Ship width (cm) | 13 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Type | Bore Dia. | Chain Size | Material | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
820A25 | 6.032" | 25 | 1 11/16" | Arm Body | 3/4" to 2" | #820 | Cast Iron | 800 Series | €267.81 | |
|
820A21 | 5.089" | 21 | 1 11/16" | Arm Body | 3/4" to 1 3/4" | #820 | Cast Iron | 800 Series | €250.39 | |
 |
820A13B | 3.228" | 13 | 1 11/16" | Block Body | 3/4" to 1 1/4" | #820 | Cast Iron | 800 Series | €196.81 | |
|
820A23 | 5 14/25" | 23 | 1 11/16" | Arm Body | 3/4" to 1 3/4" | #820 | Cast Iron | 800 Series | €265.96 | |
|
820A24 | 5.796" | 24 | 1 11/16" | Arm Body | 3/4" to 1 3/4" | #820 | Cast Iron | 800 Series | €267.81 | |
 |
820A19 | 4.62" | 19 | 1 11/16" | Arm Body | 3/4" to 1 1/4" | #820 | Cast Iron | 800 Series | €233.87 | |
 |
820A20 | 4.854" | 20 | 1 11/16" | Arm Body | 3/4" to 1 1/4" | #820 | Cast Iron | 800 Series | €250.39 |
