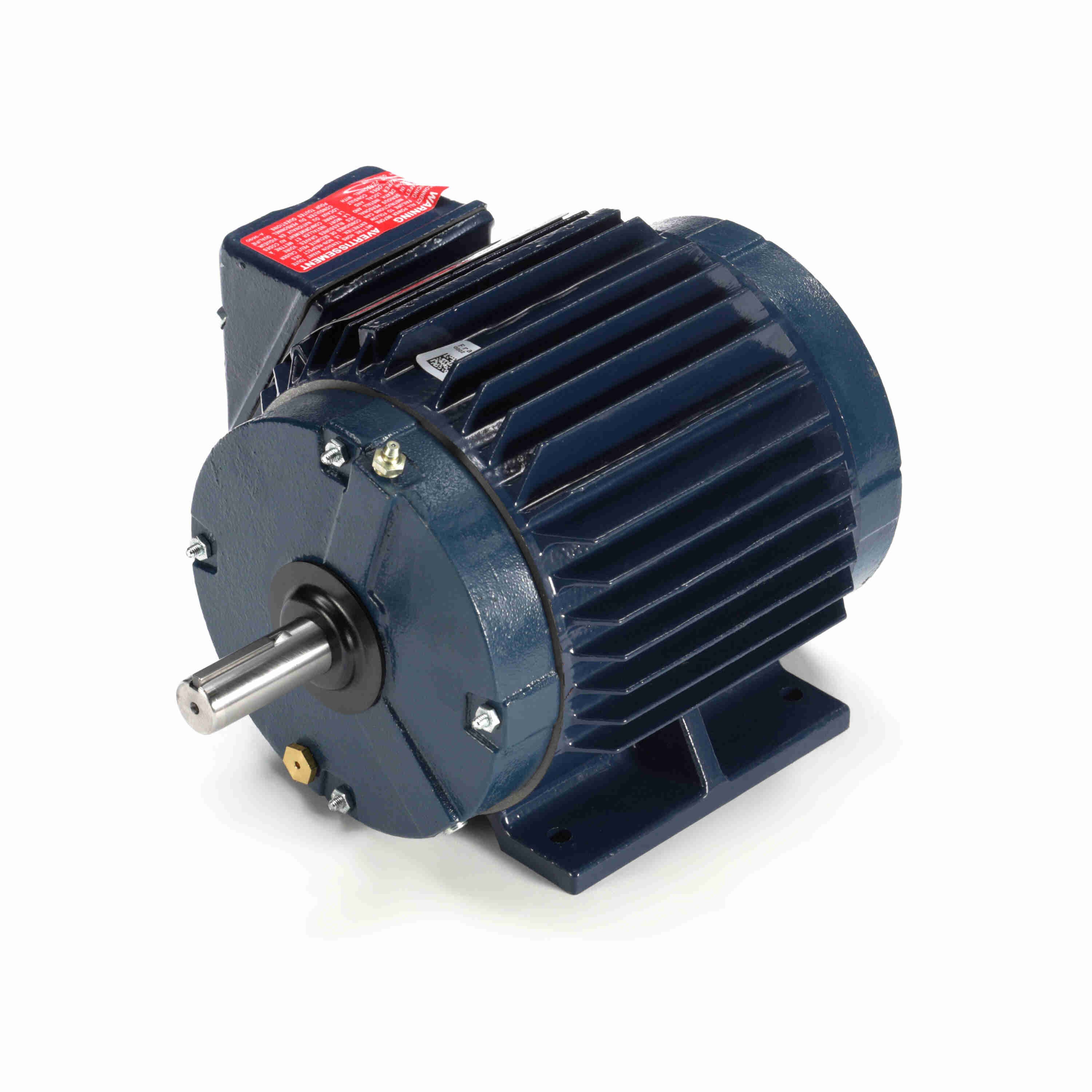

LEESON 145TTTN16631 E464A / 145TTTN16631AA Severe Duty Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Wednesday, Dec 24
10.00% off
€996.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Frame | 145T |
| Frame Material | Cast Iron |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 9 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Mounting Type | Rigid Base |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Length | 11 7/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Full Load Amps | Service Factor | Voltage | Mounting Type | Nameplate Rpm | Frequency | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T34D15599 | 1 1/2 hp | 4.2/2.1A | 1.15 | 230/460V AC | Rigid Base | 3450 RPM | - | 56 | €571.04 | |
 |
184TTDBD6101 | 1 1/2 hp, 1 hp | 2.8A | 1.15 | 190/230/380/460V | Rigid Base | 865 RPM | 50/60 Hz | 184T | €1,616.73 | |
 |
056T17DRR70021A1 | 1/2 hp | 1.7-1.8/0.9A | 1.25 | 208-230/460V AC | Rigid Base | 1725 RPM | - | 56 | €632.15 | |
 |
256TTDBD6076 | 10 hp | 25.6/12.8A | 1.15 | 230/460V AC | Rigid Base | 1182 RPM | - | 256T | €3,605.92 | |
 |
365TSTDBD6001 | 100 hp | 228/114A | 1.15 | 230/460V AC | Rigid Base | 3568 RPM | - | 365TS | €7,605.33 | |
 |
286TTDBD6076 | 20 hp | 52.5/26.3A | 1.15 | 230/460V AC | Rigid Base | 1182 RPM | - | 286T | €4,530.75 | |
|
254TTDBD6001 | 20 hp | 48/24A | 1.15 | 230/460V AC | Rigid Base | 3552 RPM | - | 254T | €3,211.89 |
