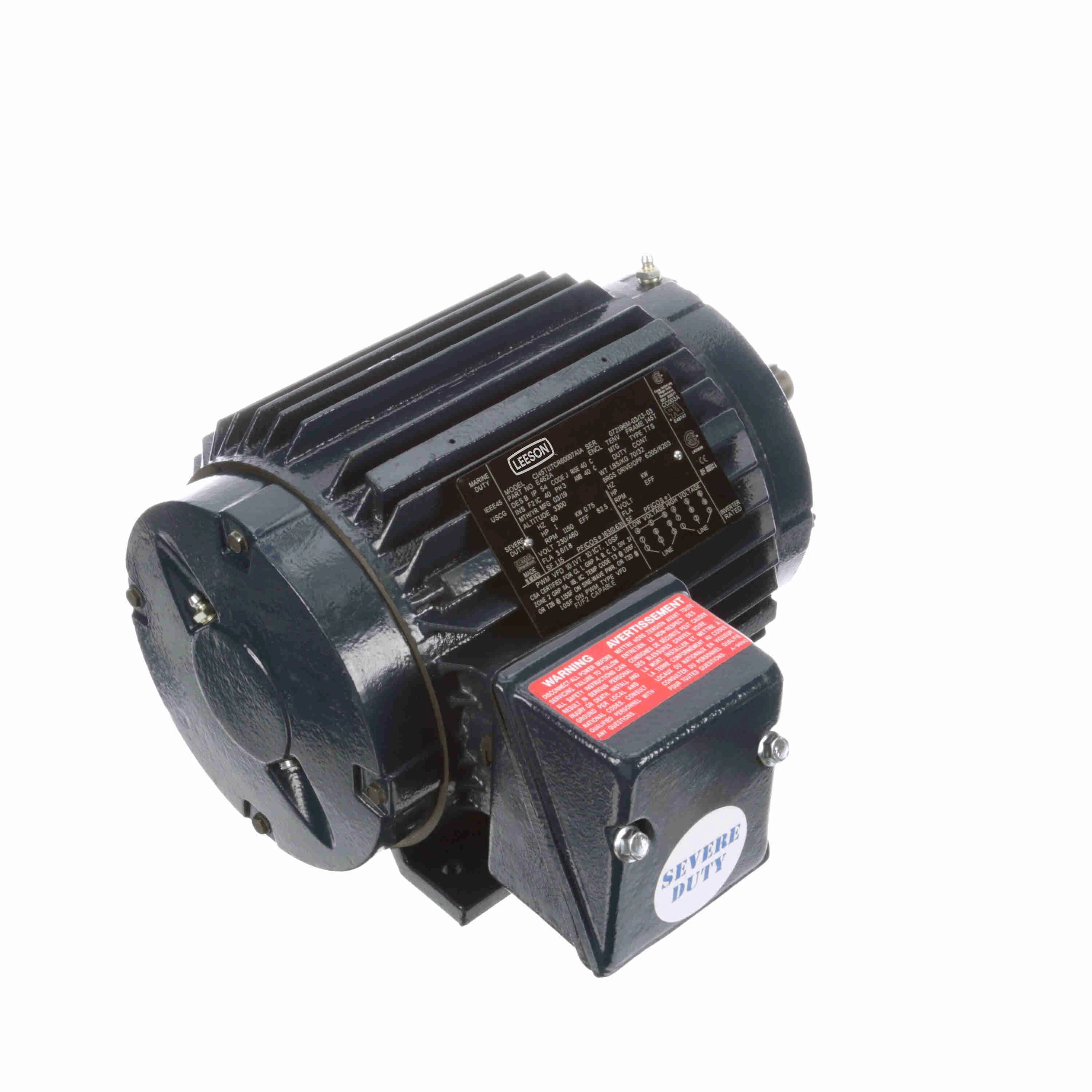

LEESON 145T11TCR60007A1 145T11TCR60007A1A / E462A Electric Motor, 1HP, 1200 RPM, 3 Phase, 230/460V
Get it by Tuesday, Aug 25
€942.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Amps Rating | 3.6/1.8A |
| Bearing Type | Deep Groove Ball |
| Dimension S | 12.68" x 11.18" x 7.44" |
| Enclosure | Tenv |
| Enclosure Type | IP54 Tenv |
| Frame | 145T |
| Frequency | 60 Hz |
| Height | 9.38" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Length | 15 1/2" |
| Material | Cast Iron |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Phase | 3 |
| Product Datasheet | leeson-e462a.pdf |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Speed | 1100-1200 RPM , 1150 RPM |
| Temp. Rating | 40°C |
| Type | 6 Pole Severe, Continuous Duty Low Voltage |
| Voltage | 230/460V |
| Voltage Rating | 230/460V AC |
| Width | 14" |
Shipping Info:
| Ship weight (kg) | 31.5 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 35.56 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Thermal Protection | Motor Design | Shaft Length | Overall Length | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143TTTN6563 | 230/460V AC | 1 hp | 143T | None | 3 Phase | 2 9/16" | 10 7/16" | 3/1.5A | €818.60 | |
 |
145TTTN16629 | 460V AC | 2 hp | 145T | None | 3 Phase | 2 9/16" | 11 7/16" | 3A | €1,158.10 | |
 |
145TTTN16630 | 460V AC | 1 1/2 hp | 145T | None | 3-Phase | 2 9/16" | 11 7/16" | 2.3A | €955.36 | |
 |
145TTTN16628 | 230/460V AC | 2 hp | 145T | None | 3 Phase | 2 1/4" | - | 3/6A | €928.49 | |
 |
145TTTN16631 | 230/460V AC | 1 1/2 hp | 145T | No | Three Phase | 2 1/4" | 11 7/16" | - | €1,128.08 | |
 |
143TTTN6526 | - | - | - | - | - | - | - | - | €818.60 | |
 |
145TTTN16632 | - | - | - | - | - | - | - | - | €928.49 |
