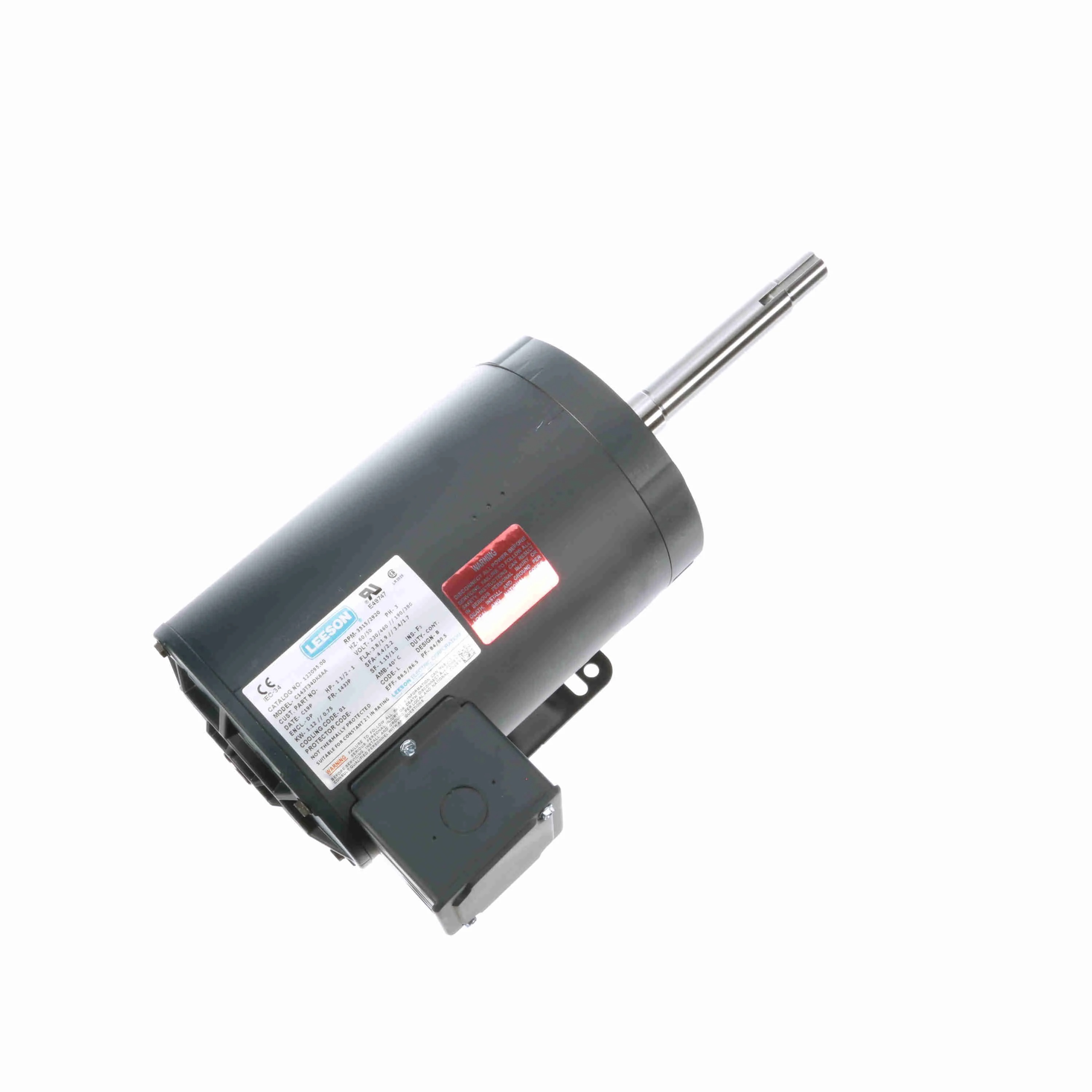

LEESON 122095.00 C143T34DK6AA Close Coupled Pump Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Tuesday, May 19
€654.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Ambient Temp. | 40°C |
| Amps | 3.8/1.9A |
| Code | L |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | ODP |
| Frame | 143JP |
| Frame Length | 8 14/25" |
| Frame Material | Rolled Steel |
| Frame Type | 143JP |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9A |
| Height | 8 3/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 19 22/25" |
| Max. Rpm | 3515 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| Nema Design | B, L |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.12/0.75 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 84 |
| Product Datasheet | leeson-122095-00.pdf |
| Resistance Main | 9.08 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 7.34" |
| Shaft Type | JP |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TD |
| Voltage | 230/460V |
| Width | 10.25" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 86.5
- Eff 75%: 88.3
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6206
- Nameplate: 92357-1
- Winding: ZT2168
- GROUP: 1
- Paint: BLUE (POWDER)
- S. F Amps: 4.4 / 2.2
Documentation:
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Voltage | Frame | Motor Mounting Type | Rpm Range | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145TTDR6013 | 3 hp | 3490 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 3001-3600 RPM | 3 Phase | €1,032.54 | |
 |
145TTDR6034 | 1 1/2 hp | 1755 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 1701-1800 RPM | 3 Phase | €787.73 | |
 |
145TTDR6036 | 2 hp | 1750 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 1701-1800 RPM | 3 Phase | €847.83 | |
 |
145TTDR16330 | 1 1/2 hp | 1755 RPM | Open Dripproof | 230/460V AC | 145JP | Face, Base | 1701-1800 RPM | 3 Phase | €787.73 | |
 |
143TTDR16042 | 1 hp | 1800 RPM | Dripproof | 200V AC | 143JMV | C Face Footless | - | - | €183.11 | |
 |
145TTDR16337 | 2 hp | 1800 RPM | Dripproof | 200V AC | 145JPV | Rigid Base | - | - | €265.76 | |
 |
145TTDR16302 | 3 hp | 3600 RPM | Dripproof | 575V AC | 145JMV | C Face Footless | - | - | €179.69 |
