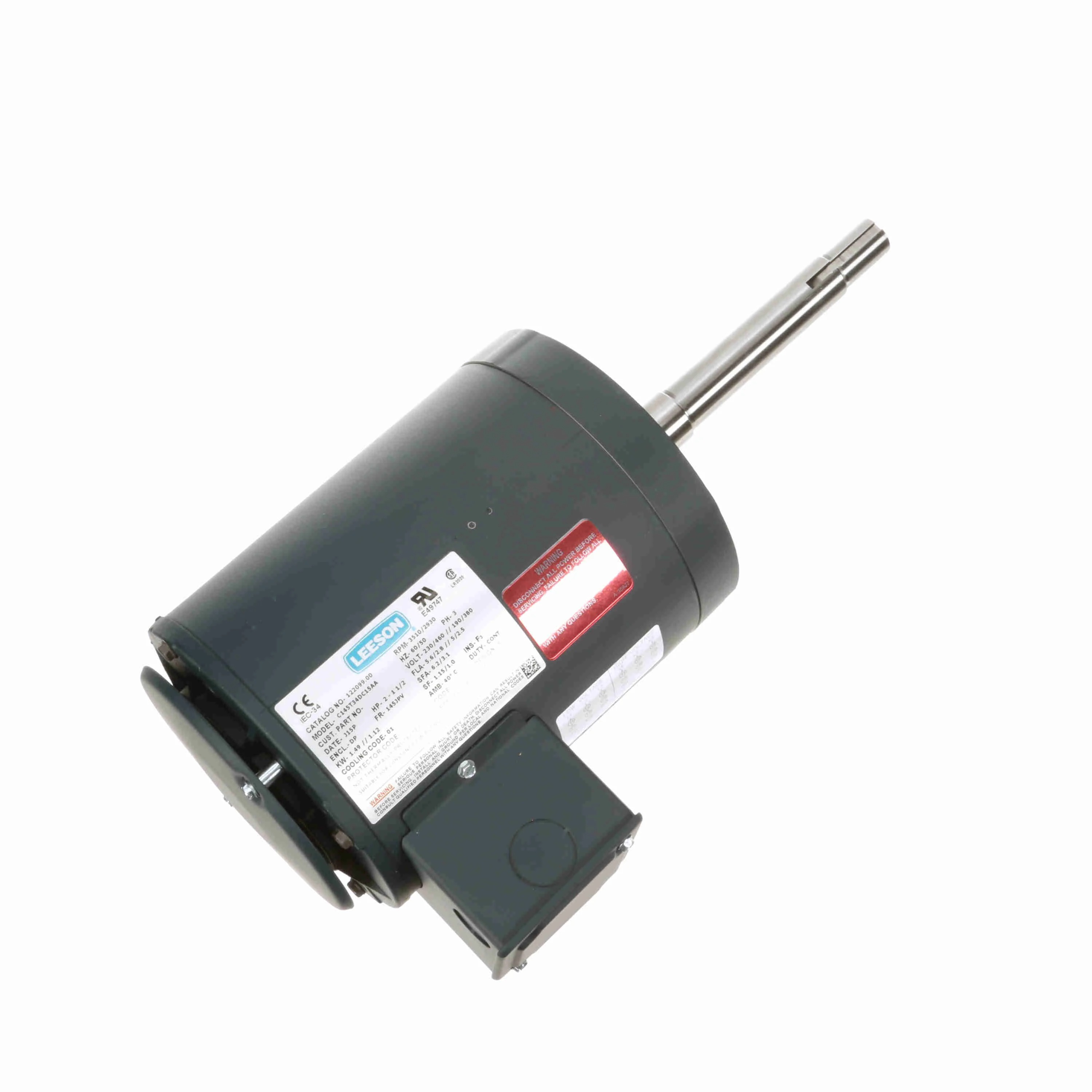

LEESON 122099.00 C145T34DC15AA Close Coupled Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Friday, Dec 19
€195.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Ambient Temp. | 40°C |
| Amps | 5.6/2.8A |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | ODP |
| Frame | 145JPV |
| Frame Length | 7 3/5" |
| Frame Material | Rolled Steel |
| Frame Type | 145JPV |
| Frequency | 60 Hz |
| Full Load Amps | 5.6/2.8A |
| Height | 9 3/4" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19" |
| Max. Rpm | 3510 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | C Face Footless |
| Motor Orientation | Horizontal, Shaft Down |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3600/3000 RPM |
| Nema Design | B, L |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49/1.12 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 78.5 |
| Resistance Main | 7.6 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1" |
| Shaft Length | 7.31" |
| Shaft Type | JP |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TD |
| Voltage | 230/460V |
| Width | 10 22/25" |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | US |
Product Details:
- Eff 75%: 86
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6206
- Nameplate: A-92357-1
- Winding: ZT224
- GROUP: 3
- Paint: BLUE (POWDER)
- S. F Amps: 6.2 / 3.1
- Eff 100%: 86.5 / 85.5
Product Variants
| Product | Model | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Frame | Shaft Dia. | Efficiency | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
122094.00 | 1800/1500 RPM | 1 hp | 3/1.5A | C Face, Footless | 143JPV | 1" | 85.5% | 7.31" | €233.34 | |
 |
122095.00 | 3600/3000 RPM | 1 1/2 hp | 3.8/1.9A | Rigid Base | 143JP | 7/8" | 86.5% | 7.34" | €654.02 | |
 |

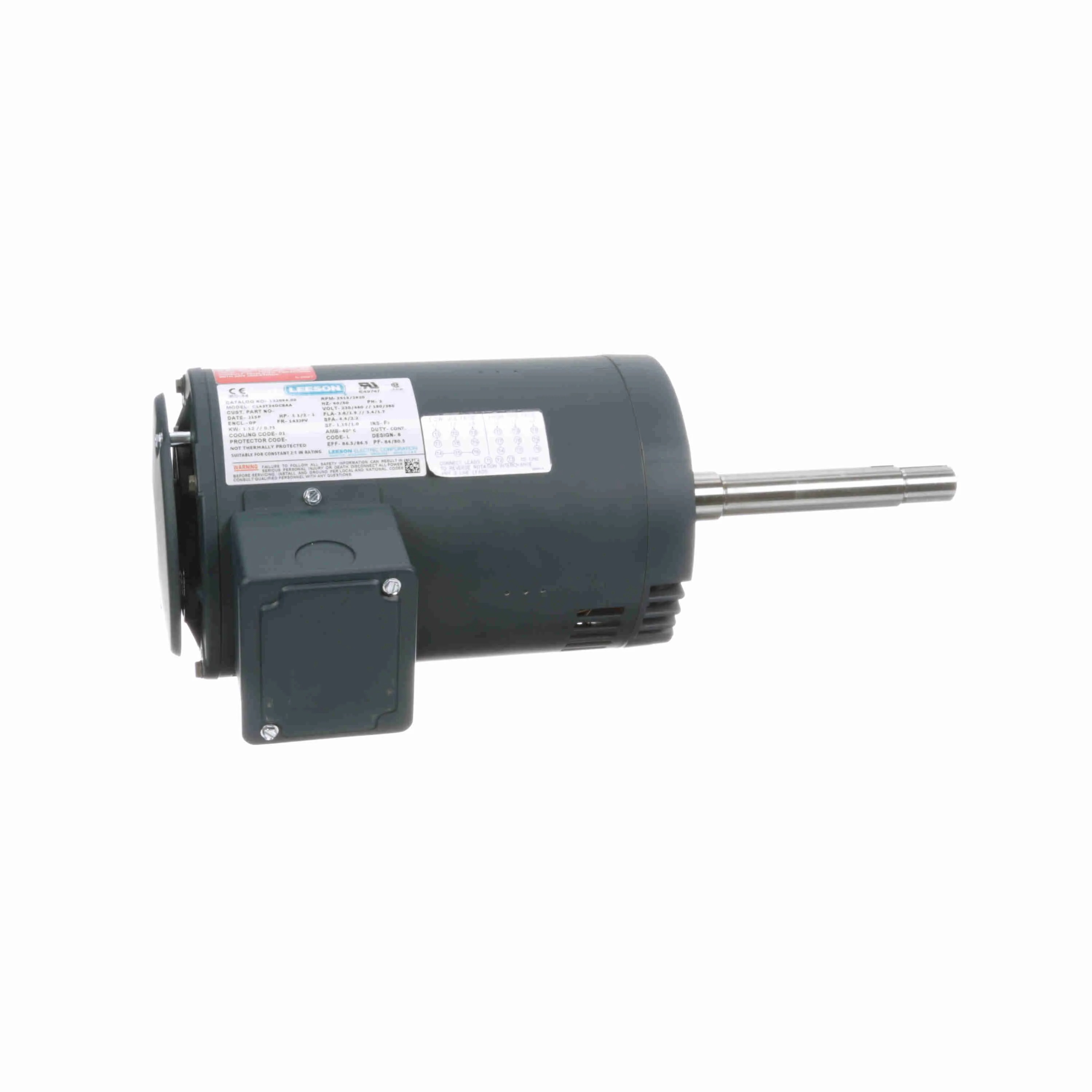

122096.00 | 3600/3000 RPM | 1 1/2 hp | 3.8/1.9A | C Face, Footless | 143JPV | 1" | 86.5% | 7.31" | €224.49 | |
 |
122101.00 | 1800/1500 RPM | 2 hp | 6/3A | C Face, Footless | 145JPV | 1" | 86.5% | 7.31" | €245.46 | |
 |
122103.00 | 3600/3000 RPM | 3 hp | 7.6/3.8A | C Face, Footless | 145JPV | 1" | 87.5% | 7.31" | €189.43 |
